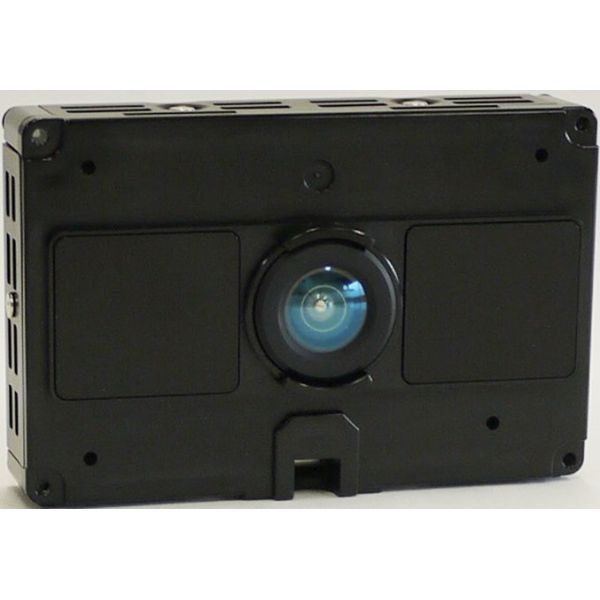

Accurate depth sensing camera PANASONIC CDM-GCHC4WZA with 640 by 480 resolution and real time image capture
Accurate depth sensing camera PANASONIC CDM-GCHC4WZA with 640 by 480 resolution and real time image capture
Accurate depth sensing camera PANASONIC CDM-GCHC4WZA with 640 by 480 resolution and real time image capture
Accurate depth sensing camera PANASONIC CDM-GCHC4WZA with 640 by 480 resolution and real time image capture
Specifications
Description :
Image Sensors, Camera RoHS
Mfr. Part # :
CDM-GCHC4WZA
Model Number :
CDM-GCHC4WZA
Description

Product Overview

Panasonic's HC4W Time of Flight Camera offers accurate real-time depth sensing and image capture capabilities. It simultaneously captures depth and IR images on a single CCD sensor, utilizing 4 Laser Diodes (Class 1) emitting 940 nm IR light. This camera is designed for outdoor use and creates a detailed 3D depth map by measuring the time it takes for emitted IR light pulses to reflect off objects. Its applications include Security, Autonomous Vehicles, Robotics, and Logistics.

Product Attributes

  • Brand: Panasonic
  • Model: HC4W
  • Technology: Time of Flight (ToF)
  • Light Source: 4 Laser Diodes (Class 1)
  • Wavelength: 940 nm

Technical Specifications

SpecificationValue
Image SensorSingle CCD
Field of View (FOV)(H) 90 deg, (V) 70 deg
Frame Rate30 fps
NIR Resolution640x480
Depth Resolution640x480
Interface (Camera)I2C (100KHz), Parallel Connector
Interface (External)Ethernet, USB BD (PoE, DC24[V])
Operating Temperature0~40 degC
Power ConsumptionApprox. 5.4W
Detection Distance100~4000 mm
Dimensions (W x H x D mm)100x65x24
Power Supply5V/4A 100-240VAC 50/60Hz
Software/SDKSample Viewer and SDK, Driver for ROS

Products and product specifications shown are subject to change without notice. Please contact your local Panasonic Technical Representative for the most up to date information.
