Industrial automation and HVAC differential pressure sensor HAOBANG HI-TECH HBP5013A501DBS8-2 with consumption
Industrial automation and HVAC differential pressure sensor HAOBANG HI-TECH HBP5013A501DBS8-2 with consumption
Specifications
Description :
SOP-8 Pressure Sensors, Transducers RoHS
Mfr. Part # :
HBP5013A501DBS8-2
Model Number :
HBP5013A501DBS8-2
Package :
SOP-8
Description

Product Overview

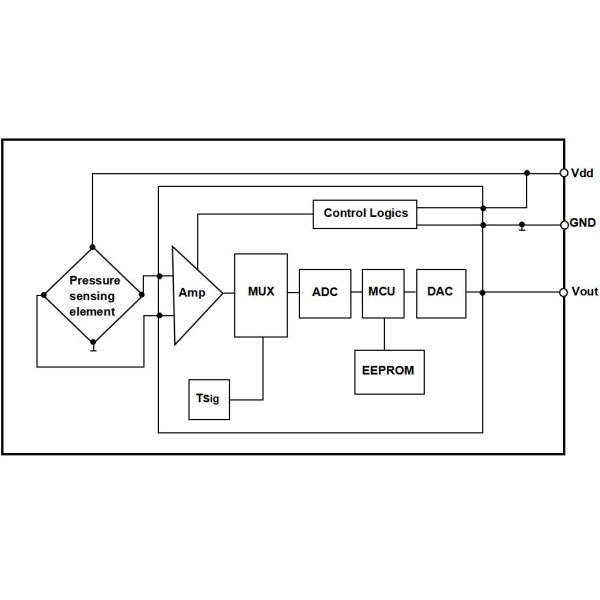

The HBP5013A-2 series is a differential pressure sensor from Haobang Gaoke, offering high accuracy, low power consumption, a wide operating temperature range, and both pressure and temperature measurement capabilities. Each unit is individually calibrated with coefficients for offset, sensitivity, temperature drift, and nonlinearity. Utilizing a MEMS-based silicon piezoresistive pressure-sensitive chip, it measures pressure differences via dual ports, generating a voltage signal proportional to the pressure differential. Its compact SOP8 dual-air nozzle package facilitates easy integration. This sensor is widely applied in medical devices, industrial automation, HVAC systems, and home appliances.

Product Attributes

  • Brand: (Haobang Gaoke)
  • Origin: (Wuxi)
  • Material: MEMS-based silicon piezoresistive chip
  • Certifications: Not specified
  • Color: Not specified

Technical Specifications

ParameterConditionMinTypicalMaxUnitNotes
Absolute Maximum Ratings
Supply Voltage-0.36.5V*Stress ratings only. Prolonged exposure may affect reliability.
Digital Pin Voltage25C-0.3Vdd+0.3V
Overload Pressure2x Rated Pressure
Burst Pressure3x Rated Pressure
ESD (HBM)2kV
Storage Temperature-40125C
MediumNon-corrosive gas or liquid
Basic Performance Indicators
Supply Voltage3.35.05.5VSelectable supply voltage
Measurement RangeRange selectable-50005000Pa
Zero Output10%VddVConfigurable per customer
Full Scale Output90%VddVConfigurable per customer
Measurement Accuracy1%FS
Operating TemperatureTemperature selectable-200-6085C
Compensation TemperatureTemperature selectable00-6085
Long-term Stability1 Year0.5%FS
Test Conditions (Unless otherwise specified): Air medium, Atmospheric pressure (101325500)Pa, Temperature (252)C, Vibration <0.1g (1m/s), Humidity (50%10%)RH, Voltage (5.00.25)V.
Typical Transfer Function (Vdd=5.0V, Output 0.50V~4.5V)
Vout FormulaVout = 80%Vdd * (|P|read - |P|min) / (|P|max - |P|min) + 10%Vdd
Common Pressure Ranges
Pressure RangeModel
-1000 ~ 1000 PaHBP5013A102DBS8-2
-2000 ~ 2000 PaHBP5013A202DBS8-2
-3000 ~ 3000 PaHBP5013A302DBS8-2
-4000 ~ 4000 PaHBP5013A402DBS8-2
-5000 ~ 5000 PaHBP5013A502DBS8-2
