HAOBANG HI TECH HBP5023A502DBS8 2 Dual Port Differential Pressure Sensor with and High Accuracy Output
HAOBANG HI TECH HBP5023A502DBS8 2 Dual Port Differential Pressure Sensor with and High Accuracy Output
Specifications
Description :
SOP-8 Pressure Sensors, Transducers RoHS
Mfr. Part # :
HBP5023A502DBS8-2
Model Number :
HBP5023A502DBS8-2
Package :
SOP-8
Description

Product Overview

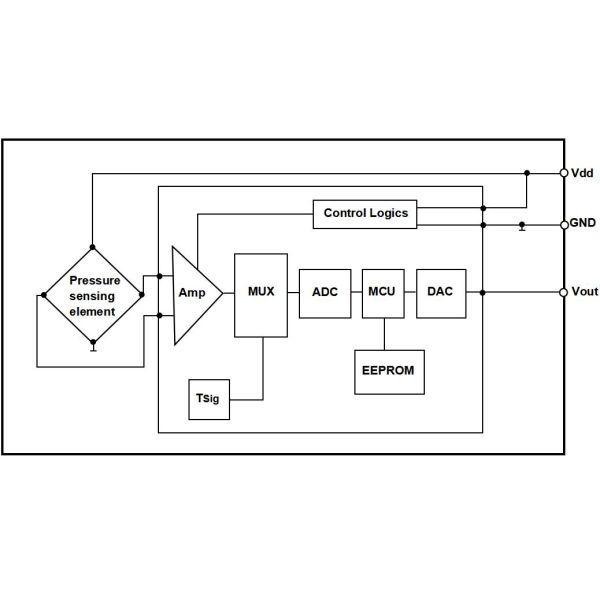

The HBP5023A-2 series is an analog dual-port differential pressure sensor from Haobang Gaoke. It offers high accuracy, low power consumption, a wide operating temperature range, and dual measurement functions for pressure and temperature. Each unit is individually calibrated with correction coefficients for offset, sensitivity, temperature drift, and nonlinearity. The sensor features a barbed dual air nozzle SOP8 package for a good seal and ease of use and system integration. It boasts excellent ESD robustness, fast response, high accuracy, linearity, and long-term stability. All measured data is fully calibrated and temperature compensated, making it suitable for medical devices, HVAC, fire safety, and sports equipment.

Product Attributes

  • Brand: Haobang Gaoke ()
  • Origin: Wuxi, China ()
  • Certifications: RoHS, REACH

Technical Specifications

ParameterConditionMinTypicalMaxUnitNotes
Pressure RangeSelectable-5000+5000PaDifferential Pressure
Supply VoltageSelectable3.35.05.5VOptional supply voltage
Analog Output10%Vdd90%VddVZero point output; Full scale output
Measurement Accuracy1%FS
Operating TemperatureSelectable-200-6085COptional temperature
Compensation TemperatureSelectable00-6085Optional compensation temperature
Long-term Stability1 Year0.5%FS
Overload Pressure2x Rated Pressure
Burst Pressure3x Rated Pressure
ESD (HBM)2kV
Storage Temperature-40125C
PackageSOP8Barbed dual air nozzles
