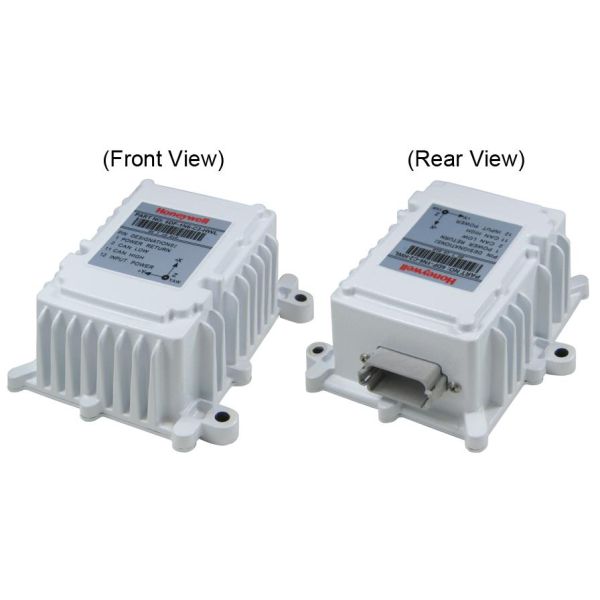

Inertial Measurement Unit Honeywell 6DF-1N6-C2-HWL with CAN SAEJ1939 Protocol and IP69k Certification
Inertial Measurement Unit Honeywell 6DF-1N6-C2-HWL with CAN SAEJ1939 Protocol and IP69k Certification
Specifications
Description :
IMUs (Inertial Measurement Units) RoHS
Mfr. Part # :
6DF-1N6-C2-HWL
Model Number :
6DF-1N6-C2-HWL
Description

Product Overview

The Honeywell 6DF Series 6 Degrees of Freedom Inertial Measurement Unit (IMU) is a durable, single-device sensor designed for motion, position, and navigational sensing. Utilizing MEMS technology, it measures translational movement (surge, heave, sway) and rotational movement (roll, pitch, yaw) independently across six degrees of freedom. The 6DF Series IMU communicates motion data via the industry-standard CAN SAEJ1939 protocol to equipment control modules, enhancing precision, safety, and productivity in various applications. Available in 2g and 6g accelerometer variants, it offers distinct performance characteristics for different environmental conditions.

Product Attributes

  • Brand: Honeywell
  • Certifications: IP67, IP69k, Automotive-grade qualified
  • Material: Aluminum housing
  • Communication Protocol: CAN SAEJ1939

Technical Specifications

CharacteristicMinimumTypicalMaximumUnit
Supply voltage7-32V
Supply current (at 12 V)--350mA
Reverse voltage---18V
Startup time-7002000ms
Operating temperature-40 [-40]-85 [185]C [F]
Storage temperature-40 [-40]-95 [203]C [F]
Mechanical shock--30g
Random vibration3,2 g RMS max. (10 Hz to 2000 Hz), 3 orthogonal plane at 32 hr/axis---
Thermal shock-40 C to 105 C [-40 F to 221 F] soak time, 30 min; transfer time less than 10 s, 30 cycles---
Humidity-95 %RH at 25 C to 55 C [77 F to 131 F]--
Salt spray5% salt solution, 96 hr at 35 C [95 F]---
Chemical compatibilitydiesel fuel, hydraulic oil, ethylene glycol, motor oil, brake fluid, urea, nit---

2201180730_Honeywell-6DF-1N6-C2-HWL_C1526888.pdf
