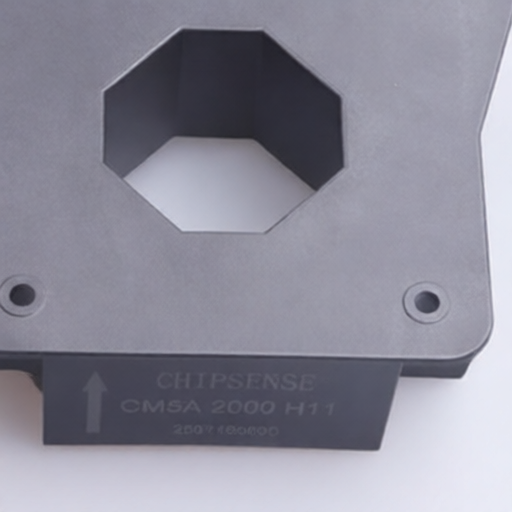

closed loop Hall effect current sensor CM5A 2000 H11 with excellent accuracy and UL 94 V0 construction
closed loop Hall effect current sensor CM5A 2000 H11 with excellent accuracy and UL 94 V0 construction
Specifications
working temperature :
-40℃~+85℃
Current Range :
±4.25kA
Voltage - Supply :
15V~24V
Band Width :
150kHz
Response Time (tr) :
500ns
Bidirectional Current Detection :
Support
Description :
±4.25kA Current Sensors RoHS
Mfr. Part # :
CM5A 2000 H11
Model Number :
CM5A 2000 H11
Description

Product Overview

The CM5A H11 series is a closed-loop Hall effect current sensor designed for measuring DC, AC, and pulsed currents. It offers excellent linearity, accuracy, and low temperature drift with no insertion loss. The sensor features primary and secondary side isolation and is constructed with UL 94-V0 rated materials.

Product Attributes

  • Brand: (Chipsensor)
  • Product Model: CM5A 2000 H11
  • Certifications: UL 94-V0
  • Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010

Technical Specifications

ParameterSymbolUnitMinTypicalMaxNotes
Maximum Limits
Supply VoltageVCV±25.2
Primary Busbar TemperatureTB°C100
Maximum Steady State Primary Current (-40…85°C)IPNA2000
Environmental and Product Structure Characteristics
Operating TemperatureTA°C-4085
Storage TemperatureTS°C-4090
Massg1500
Insulation Characteristics
AC Isolation Withstand Voltage RMS @ 50Hz, 1minVdkV6Refer to IEC 60664-1
Impulse Withstand Voltage 1.2/50µsVWkV23Refer to IEC 60664-1
Creepage Distance (Primary and Secondary)dCpmm30
Clearance Distance (Primary and Secondary)dCImm28
Housing MaterialUL94-V0
Comparative Tracking IndexCTIPLC32000V Reinforced Insulation, Refer to IEC 61800-5-1, IEC 62109-1 CAT III, PD2; 4000V Basic Insulation, Refer to IEC 61800-5-1, IEC 62109-1 CAT III, PD2
Electrical Characteristics (Unless otherwise specified, test environment: TA = 25°C, VC = ±24V, RM = 1Ω)
Primary Rated Current RMSIPNA-20002000
Primary Current Measurement RangeIPMA-42504250
Measuring ResistanceRMΩ081 @±15V, 85°C, ±2000A; 2 @±15V, 85°C, ±2500A; 1 @±24V, 85°C, ±2000A; 2 @±24V, 85°C, ±4250A
Secondary Rated Current RMSISNmA-400400
Secondary Coil ResistanceRSΩ18@ 25°C
Secondary Current Measurement RangeISmA-850850
Coil TurnsNS5000
Theoretical GainGthmA/A0.2
Supply VoltageVCV±15±24@ ±5%
Current ConsumptionICmA38
Offset CurrentIOmA-0.50.5
Offset Current Temperature DriftIOTmA-0.50.5@ -40°C~85°C
Magnetic Offset Current @ IP=0 after IPNIOMmA-0.20.2
Gain ErrorεG%-0.20.2Excluding IOE
Linearity Error 0…IPNεL% of IPN-0.10.1Excluding IOE
Accuracy @ IPNX% of IPN-0.30.3Excluding IOE
Response Time @ 90% of IPNtrµs0.5
Bandwidth (-3dB)BWkHz150

Industrial Applications

  • Fan Inverters
  • AC Variable Frequency Drives, Servo Motors
  • Uninterruptible Power Supplies (UPS)
  • Static Converters for DC Motor Drives
  • Switch Mode Power Supplies (SMPS)
  • Welding Machine Power Supplies
  • Battery Management
  • Wind Energy Converters
  • Test and Measurement Equipment

Safety Precautions

Sensor usage must comply with IEC 61800-5-1 standard. The sensor must be installed in electronic or electrical equipment that meets application standards and safety requirements as per the instructions. Caution: Risk of electric shock. During operation, certain parts of the sensor may carry dangerous voltages (e.g., primary busbars, power supply). Neglecting this can lead to damage and serious hazards. The sensor is an embedded device; ensure its conductive parts are not accessible after installation. Protective covers or shields may be installed if necessary. The main power supply must be disconnectable.


2504101957_CHIPSENSE-CM5A-2000-H11_C42441933.pdf
