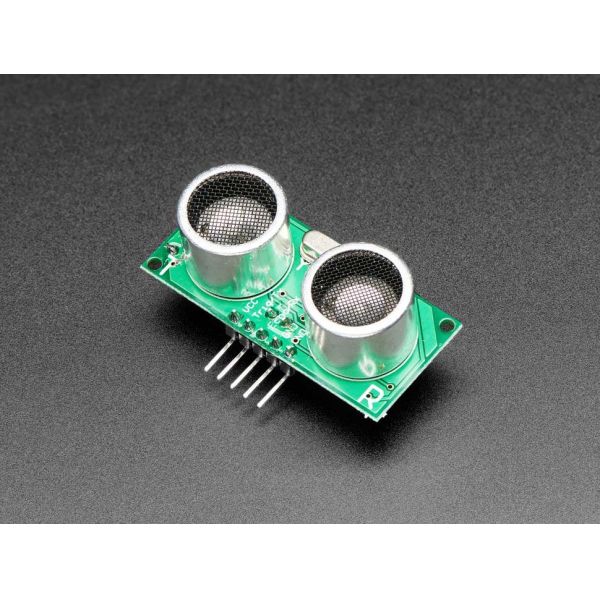

Ultrasonic Distance Sensor Adafruit Industries 4019 with Dual Mode Operation and Wide Detection Range
Ultrasonic Distance Sensor Adafruit Industries 4019 with Dual Mode Operation and Wide Detection Range
Ultrasonic Distance Sensor Adafruit Industries 4019 with Dual Mode Operation and Wide Detection Range
Ultrasonic Distance Sensor Adafruit Industries 4019 with Dual Mode Operation and Wide Detection Range
Ultrasonic Distance Sensor Adafruit Industries 4019 with Dual Mode Operation and Wide Detection Range
Ultrasonic Distance Sensor Adafruit Industries 4019 with Dual Mode Operation and Wide Detection Range
Specifications
Description :
Ultrasonic Receivers, Transmitters RoHS
Mfr. Part # :
4019
Model Number :
4019
Description

Product Overview

The US-100 Ultrasonic Distance Sensor offers versatile functionality for measuring distances, operating with either 3V or 5V logic, eliminating the need for logic level shifters. It provides two distinct operating modes: HC-SR04 mode, utilizing trigger and echo pins, and Serial UART mode, communicating via 9600 baud UART. In UART mode, it can report distance in millimeters (0x55 command) or temperature in degrees Celsius (0x50 command). This sensor is suitable for robotics, automation, interactive art, and motion sensing applications, with an effective detection range of 10cm to 250cm, and a maximum range of 2cm to 450cm. It is compatible with Arduino, CircuitPython, and MakeCode.

Product Attributes

  • Product ID: 4019
  • Sensor Type: Ultrasonic Sonar Distance Sensor

Technical Specifications

Specification Value
Power & Logic Voltage DC 2.4V~5.5V
Current Consumption 2mA
Operating Temperature -20~ +70 C
Measuring Angle Less than 15
Detection Distance 2cm 450 cm
Accuracy 0.3cm +1%
Sensor Dimensions (excluding header) 45 x 20mm
Weight 9g
UART Baud Rate (Serial Mode) 9600
