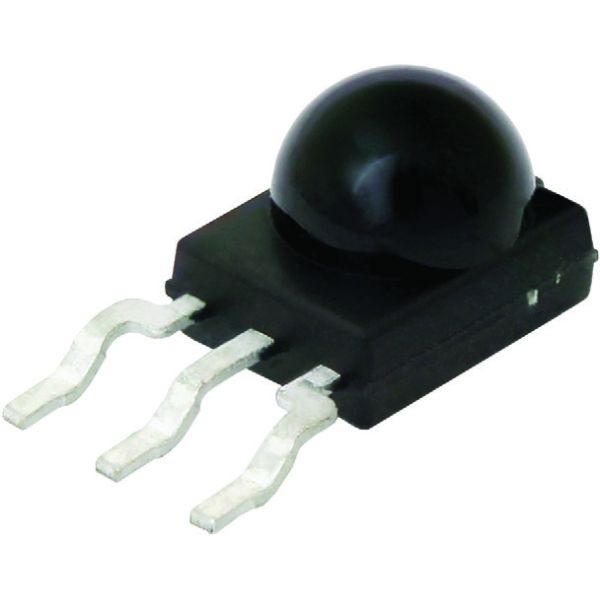

infrared sensor module VISHAY TSSP93038DF1PZA with stable performance under direct sunlight exposure
infrared sensor module VISHAY TSSP93038DF1PZA with stable performance under direct sunlight exposure
infrared sensor module VISHAY TSSP93038DF1PZA with stable performance under direct sunlight exposure
infrared sensor module VISHAY TSSP93038DF1PZA with stable performance under direct sunlight exposure
Specifications
Description :
Ambient Light, IR, UV Sensors RoHS
Mfr. Part # :
TSSP93038DF1PZA
Model Number :
TSSP93038DF1PZA
Description

TSSP93038DF1PZA IR Sensor Module

The TSSP93038DF1PZA is a compact, latest-generation infrared detector module designed for presence, proximity, and light barrier applications. It provides an active low output in response to infrared bursts at 940 nm, with a carrier frequency of 38 kHz for presence sensing. This module offers constant sensitivity in varying ambient light conditions, including direct sunlight, and supports applications such as reflective sensors, vending machine fall detection, security gates, and fast proximity sensing for robotics and consumer electronics.

Product Attributes

  • Brand: Vishay Semiconductors
  • Material Categorization: Refer to www.vishay.com/doc?99912 for compliance definitions.

Technical Specifications

ParameterTest ConditionSymbolMin.Typ.Max.Unit
Supply current (dark)Ev = 0, VS = 3.3 VISD0.250.370.45mA
Supply current (sunlight)Ev = 40 klx, sunlightISH-0.8-mA
Supply voltageVS2.0-3.6V
Output voltage lowIOSL = 0.5 mA, Ee = 2 mW/m2VOSL--100mV
Minimum irradiancePulse width tolerance: tpi - 5/f0 < tpo < tpi + 6/f0, test signal see Fig. 1Ee min.0.91.31.8mW/m2
Maximum irradiancePulse width tolerance: tpi - 5/f0 < tpo < tpi + 6/f0, test signal see Fig. 1Ee max.30--W/m2
Directivity (angle of half transmission distance)1/2- 45-
Junction temperatureTj--100C
Storage temperature rangeTstg-25-+85C
Operating temperature rangeTamb-25-+85C
Power consumptionTamb 85 CPtot--10mW

Mechanical Data

PinningDimensions (mm)MountingApplication
1 = OUT, 2 = GND, 3 = VS5.4 W x 6.35 H x 4.9 DLeadedPresence sensors, fast proximity sensors

2411261606_VISHAY-TSSP93038DF1PZA_C20346078.pdf
