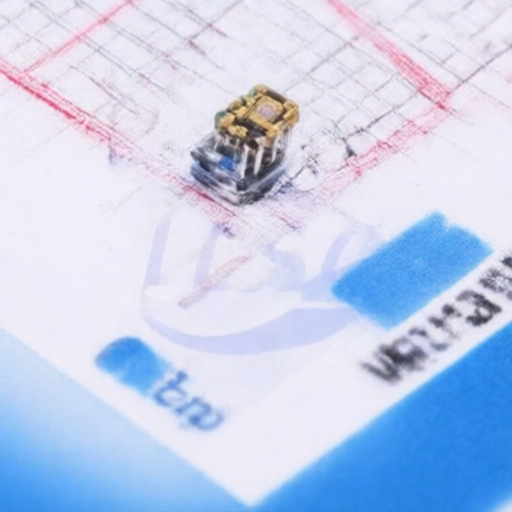

Surface mount ambient light sensor with wide voltage range and high dynamic detection VISHAY VEML3235
Surface mount ambient light sensor with wide voltage range and high dynamic detection VISHAY VEML3235
Specifications
Length :
2mm
Width :
2mm
Operating Temperature :
-25℃~+85℃
Interface :
I2C
Measurement Type :
Light Intensity
Voltage - Supply :
2.6V~3.6V
Photoperceptivity :
17.867klx
Description :
I2C 2.6V~3.6V SMD-6P Ambient Light, IR, UV Sensors RoHS
Mfr. Part # :
VEML3235
Model Number :
VEML3235
Package :
SMD-6P
Description

Product Overview

The VEML3235 is an advanced, low-power, high-sensitivity ambient light sensor utilizing CMOS process and an I2C protocol interface. It offers easy operation through simple I2C commands and integrates a photodiode, amplifiers, and analog circuits on a single chip. Designed to closely mimic human eye response, it features excellent temperature compensation and a robust refresh rate setting that eliminates the need for external RC low-pass filters. With a software shutdown mode reducing power consumption to less than 1 A, the VEML3235 operates within a voltage range of 2.6 V to 3.6 V and can detect a wide spectrum of ambient light. Its high ALS sensitivity, with a minimum detectable intensity of 0.0021 lx/cnt, supports low transmittance lens designs, and it provides high dynamic detection resolution.

Product Attributes

  • Package Type: Surface-mount
  • Dimensions (L x W x H in mm): 2 x 2 x 0.87
  • Integrated Modules: Ambient Light Sensor (ALS)
  • Floor Life: 168 h, MSL 3, according to J-STD-020
  • Material Categorization: For definitions of compliance see www.vishay.com/doc?99912

Technical Specifications

Part NumberOperating Voltage Range (V)I2C Bus Voltage Range (V)Ambient Light Range (lx)Ambient Light Resolution (lx)ADC ResolutionStandby Current (typ.)Supply Current (typ.)I2C Clock Rate Range (kHz)Minimum Detectable Illuminance (lx)Maximum Detectable Illuminance (lx)
VEML32352.6 to 3.61.7 to 3.60.0021 to 178670.002116 bit, I2C1 A250 A10 to 4000.002117867

2410010130_VISHAY-VEML3235_C3678658.pdf
