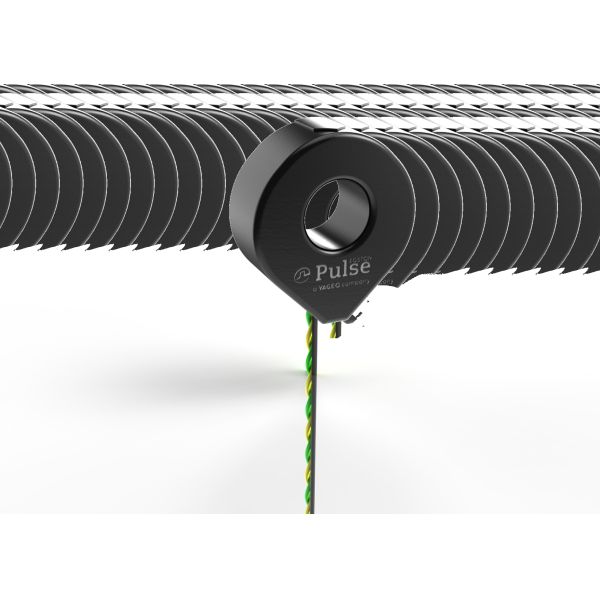

Rogowski Coil Current Sensor PULSE RC05-450-1000-S with Low Temperature Coefficient and High Accuracy
Rogowski Coil Current Sensor PULSE RC05-450-1000-S with Low Temperature Coefficient and High Accuracy
Rogowski Coil Current Sensor PULSE RC05-450-1000-S with Low Temperature Coefficient and High Accuracy
Rogowski Coil Current Sensor PULSE RC05-450-1000-S with Low Temperature Coefficient and High Accuracy
Rogowski Coil Current Sensor PULSE RC05-450-1000-S with Low Temperature Coefficient and High Accuracy
Rogowski Coil Current Sensor PULSE RC05-450-1000-S with Low Temperature Coefficient and High Accuracy
Specifications
Description :
Current Sensors RoHS
Mfr. Part # :
RC05-450-1000-S
Model Number :
RC05-450-1000-S
Description

Product Overview

The Pulse Electronics Rogowski Current Sensor series (RC01-SSS-0, RC03-SSS-LLLL-0, RC05-SSS-LLLL-0) are designed for accurate current measurement. These sensors are immune to external AC magnetic fields and DC current/magnetic fields, featuring a low temperature coefficient. They offer a wide dynamic range and are suitable for applications requiring precise current sensing.

Product Attributes

  • Brand: Pulse Electronics
  • Certifications: IEC 61869-10 Accuracy Class 1, ANSI C12.20 Accuracy Class 1.0
  • Origin: Not specified
  • Material: Not specified
  • Color: Not specified

Technical Specifications

SeriesAccuracy ClassPhase ErrorBandwidthOperating TemperatureDynamic RangeWeightPolarity Coding
RC01-SSS-0IEC 61869-10 Class 1, ANSI C12.20 Class 1.0<0.03 degree @ 50 Hz / 60 Hzup to 50kHz-20C to +80C1 to 2500 Ampsapprox. 7g+: Pin 1, -: Pin 2, Shielding: Pin 3
RC03-SSS-LLLL-0IEC 61869-10 Class 1, ANSI C12.20 Class 1.0<0.03 degree @ 50 Hz / 60 Hzup to 50kHz-20C to +80C1 to 2500 Ampsapprox. 23g (without cable)+: red, -: black, Shielding: blank
RC05-SSS-LLLL-0IEC 61869-10 Class 1, ANSI C12.20 Class 1.0<0.03 degree @ 50 Hz / 60 Hzup to 50kHz-20C to +80C1 to 2500 Ampsapprox. 48g (without cable)+: yellow, -: green, Shielding: blue

2411200012_PULSE-RC05-450-1000-S_C20107702.pdf
