SOP Package ROHM BDJ0600HFV-TR HVSOF5 5 Pin Pure Tin Lead Finish Tape Reel Packing Electronic Parts
SOP Package ROHM BDJ0600HFV-TR HVSOF5 5 Pin Pure Tin Lead Finish Tape Reel Packing Electronic Parts
SOP Package ROHM BDJ0600HFV-TR HVSOF5 5 Pin Pure Tin Lead Finish Tape Reel Packing Electronic Parts
SOP Package ROHM BDJ0600HFV-TR HVSOF5 5 Pin Pure Tin Lead Finish Tape Reel Packing Electronic Parts
SOP Package ROHM BDJ0600HFV-TR HVSOF5 5 Pin Pure Tin Lead Finish Tape Reel Packing Electronic Parts
SOP Package ROHM BDJ0600HFV-TR HVSOF5 5 Pin Pure Tin Lead Finish Tape Reel Packing Electronic Parts
Specifications
Description :
HVSOF-5 Thermostats - Solid State RoHS
Mfr. Part # :
BDJ0600HFV-TR
Model Number :
BDJ0600HFV-TR
Package :
HVSOF-5
Description

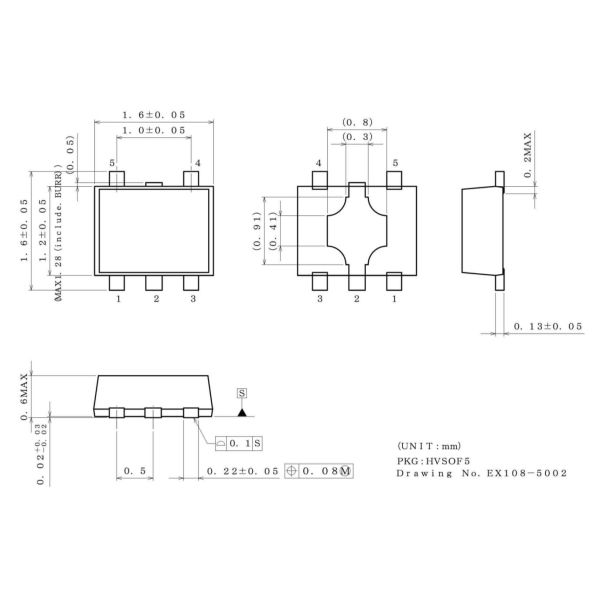

Package Information: HVSOF5

This document provides detailed package information for the HVSOF5 package, including its structure, packing specifications, dimensions, marking, storage, and soldering conditions. It is intended for use in general electronic equipment.

Product Attributes

  • Brand: ROHM
  • Package Name: HVSOF5
  • Type: SOP
  • Pin Count: 5
  • Lead Finish: Pure Tin
  • MSL Level: 1

Technical Specifications

CategorySpecificationDetails
PackagePackage NameHVSOF5
PackageTypeSOP
PackagePin Count5
PackageWeight [g]0.003
PackageLead FinishPure Tin
PackageMSL Level1

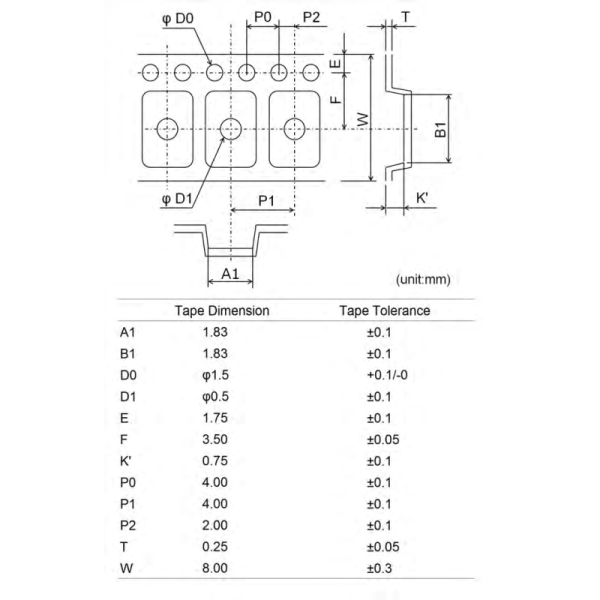

PackingPacking FormTape&Reel
PackingPacking Quantity [pcs]3,000
PackingPIN 1 OrientationTR
PackingMaterial - Embossed carrier tapePS
PackingMaterial - Cover tapePET+PE
PackingMaterial - ReelPS
PackingMaterial - Unit boxCardboard
PackingMaterial - Shipping boxCardboard
PackingLeader specificationNo component pockets are 160mm or more.
PackingTrailer specificationNo component pockets are 40 mm or more. Tape is free from reel.
PackingCover tape peelback strength0.2 N to 0.7 N
PackingMissing ICs(1) No consecutive dropouts. (2) A maximun 0.1 % of specified number of products in each packing may be missing.
PackingUnit box quantity3 reel(s) or less per unit box
PackingShipping box quantity4 unit boxes or less per shipping box
DimensionsShipping Box Dimension X [mm]190
DimensionsShipping Box Dimension Y [mm]255
DimensionsShipping Box Dimension Z [mm]193
StorageRecommended Storage Temperature Min. [C]5
StorageRecommended Storage Temperature Max. [C]30
StorageRecommended Storage Humidity Max. [% RH]85
StorageStorage period Max. [year]1
StorageDrying process required before solder mountingNo
SolderingWave soldering method supportNo
SolderingRework by soldering ironNot allowed
SolderingMounting on flexible film recommendationUsage of support board and under fill is recommended.
SolderingMounting on long and narrow board recommendationBending board direction and outer lead direction is recommended as drawing (vertically layout) and under fill usage is recommended.

2311150024_ROHM-BDJ0600HFV-TR_C17395724.pdf
