Temperature sensor IC ROHM BDJ0800AHFV-TR with integrated high accuracy reference voltage and consumption
Temperature sensor IC ROHM BDJ0800AHFV-TR with integrated high accuracy reference voltage and consumption
Specifications
Description :
HVSOF-5 Thermostats - Solid State RoHS
Mfr. Part # :
BDJ0800AHFV-TR
Model Number :
BDJ0800AHFV-TR
Package :
HVSOF-5
Description

Product Overview

The BDJ0800AHFV is a silicon monolithic integrated circuit designed as a low-current thermostat output temperature sensor IC. It integrates a temperature detection element, constant current circuit, and a high-accuracy reference voltage source on a single chip, enabling temperature detection with 2.5 C accuracy without complex design. It is ideal for micro- and low-current portable equipment, featuring a power-down function and battery drive compatibility.

Product Attributes

  • Brand: ROHM
  • Product Structure: Silicon monolithic integrated circuit
  • Designed Protection Against Radioactive Rays: None

Technical Specifications

ParameterSymbolMinTypMaxUnitConditions
Power Supply Voltage RangeVDD2.4-5.5V
Supply Current (Normal Function Mode)IDD-7.512.0APD=H
Supply Current (Power Down Mode)IDDPD-0.31.0APD=L
High Accuracy Thermostat-2.5CMax @Ta=80 C
Detection TemperatureTDET77.580.082.5CVDD=2.8 V
Detection Temperature HysteresisTHYS7.510.012.5CVDD=2.8 V
Operating Temperature RangeTopr-30-+100C

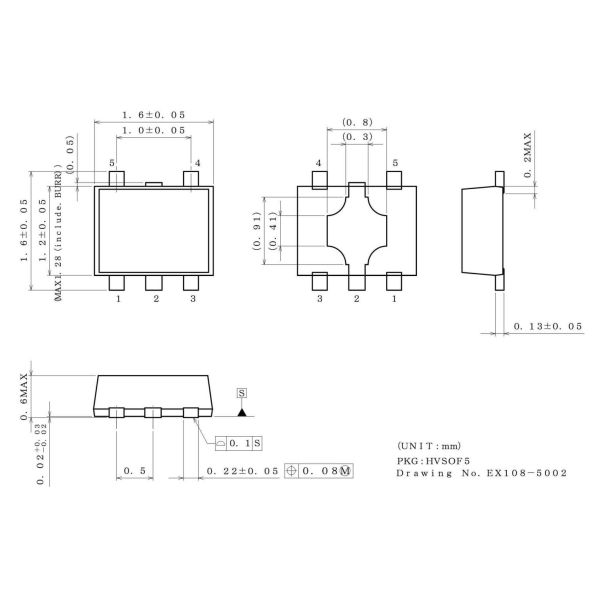

Package Dimensions (W x D x H)1.601.600.60mmHVSOF5
PD Input Interface Voltage1.5-V
OS Output TypeOpen-DrainActive-Low
OS Pin VoltageVOS-0.3-7.0VNote 1
OS Pin CurrentIOS--5.0mA
Maximum Junction TemperatureTjmax--150C
Storage Temperature RangeTstg-55-+150CNote 1

2410311339_ROHM-BDJ0800AHFV-TR_C509836.pdf
