MTL5014 NAMUR Proximity Detector Interface for Hazardous Areas
MTL5014 NAMUR Proximity Detector Interface for Hazardous Areas
MTL5014 NAMUR Proximity Detector Interface for Hazardous Areas
MTL5014 NAMUR Proximity Detector Interface for Hazardous Areas
MTL5014 NAMUR Proximity Detector Interface for Hazardous Areas
MTL5014 NAMUR Proximity Detector Interface for Hazardous Areas
MTL5014 NAMUR Proximity Detector Interface for Hazardous Areas
MTL5014 NAMUR Proximity Detector Interface for Hazardous Areas
Specifications
Brand Name :
MTL
Model Number :
MTL5014
Certification :
CE
Place of Origin :
England
MOQ :
1pc
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
100pcs per month
Delivery Time :
on request
Packaging Details :
standard carton packing
Number of channels :
One
Location of switches :
Zone 0, IIC, T6 hazardous area Div. 1, Group A hazardous location
Location of proximity detectors :
Zone 0, IIC, T4–6 hazardous area if suitably certified Div. 1, Group A hazardous location
Safe-area output :
Two relays with changeover contacts
Hazardous-area input :
One input conforming to NAMUR/DIN 19234 standards for proximity detectors
One input conforming to NAMUR/DIN 19234 standards for proximity detectors :
7.0 to 9.0V from 1kΩ ±10%
Description

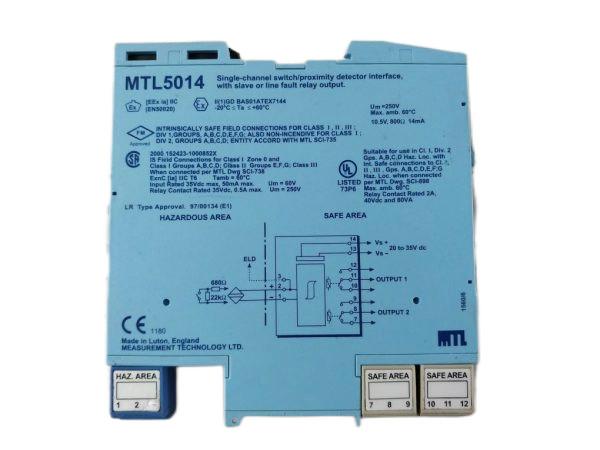

MTL5014 SWITCH/ PROXIMITY DETECTOR INTERFACE

The MTL5014 enables two safe-area loads to be controlled by a single switch or proximity detector located in the hazardous area. The

safe- area interface has two changeover relays: output 1 and output 2. The output 1 relay reflects the status of the input and may be

configured to operate in reverse phase. The output 2 relay may be configured either to repeat (slave) the output 1 relay, or to act as a

line integrity monitor. A selectable line-fault-detect (LFD) facility enables an open- or short- circuit fault to be detected in the field wiring.
