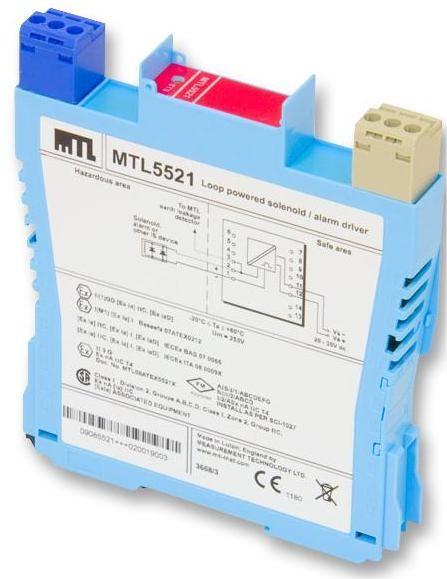

MTL5521 Solenoid Alarm Driver 20-35V DC Safety Barrier
MTL5521 Solenoid Alarm Driver 20-35V DC Safety Barrier
MTL5521 Solenoid Alarm Driver 20-35V DC Safety Barrier
MTL5521 Solenoid Alarm Driver 20-35V DC Safety Barrier
MTL5521 Solenoid Alarm Driver 20-35V DC Safety Barrier
MTL5521 Solenoid Alarm Driver 20-35V DC Safety Barrier
MTL5521 Solenoid Alarm Driver 20-35V DC Safety Barrier
MTL5521 Solenoid Alarm Driver 20-35V DC Safety Barrier
Specifications
Brand Name :
MTL
Model Number :
MTL5521
Certification :
CE
Place of Origin :
USA
MOQ :
1 piece
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
100pcs per month
Delivery Time :
on request
Packaging Details :
standard carton packing
Number of channels :
One
Input voltage :
20 to 35V dc
Response time :
Output within 10% of final value within 100ms
Power dissipation within unit :
1.4W at 24V
LED indicator :
Yellow: output status, on when output active
Maximum power dissipation within unit :
90mA at 24V
Description

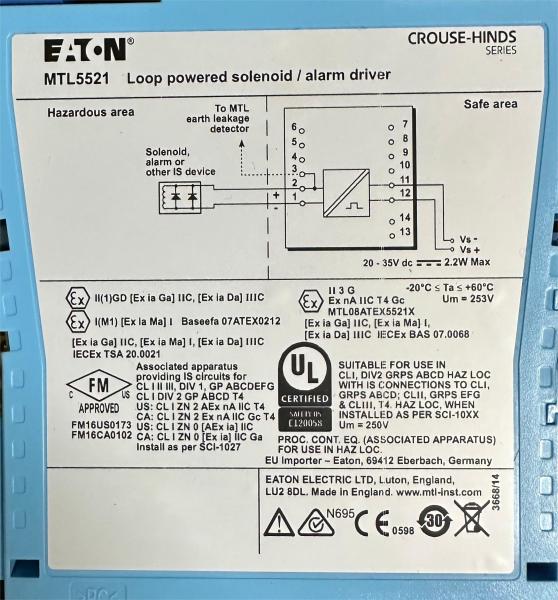

MTL5521 SOLENOID/ ALARM DRIVER

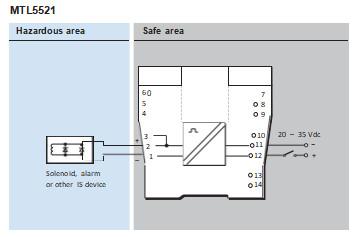

The MTLx521 and the MTL4521L are loop-powered modules which enable a device located in the hazardous area to be controlled from the safe area. They can all drive a certified intrinsically safe low-power load, as well as non-energy-storing simple apparatus such as an LED.

SPECIFICATION

Number of channels:One

Location of load:Zone 0, IIC, T4–6 hazardous area if suitably certified Div. 1, Group A hazardous location

Input voltage:20 to 35V dc

Hazardous-area output (MTLx521):Minimum output voltage: 13.6V at 48mA；Maximum output voltage: 24V from 180Ω；Current limit: 48mA minimum

Hazardous-area output (MTL4521L):Minimum output voltage: 11.1V at 48mA；Maximum output voltage: 24V from 232Ω；Current limit: 48mA minimum

Output ripple:< 0.5% of maximum output, peak to peak

Response time:Output within 10% of final value within 100ms

LED indicator:Yellow: output status, on when output active

Maximum current consumption:90mA at 24V

Power dissipation within unit:1.4W at 24V

Safety description (MTLx521):Uo =25V Io =147mA Po =0.92W Um = 253V rms or dc

Safety description (MTL4521L):Uo = 25V Io = 108mA Po = 0.68W Um = 253V rms or dc
