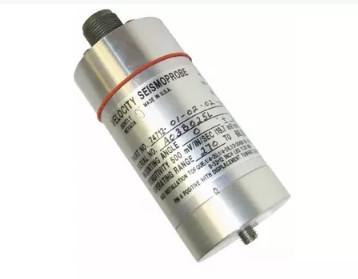

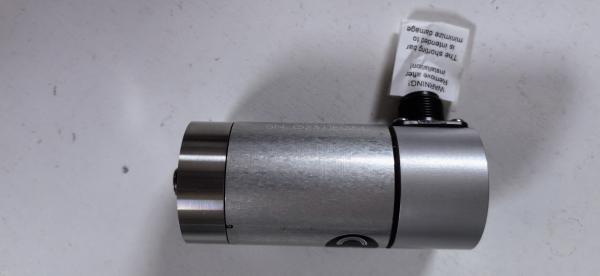

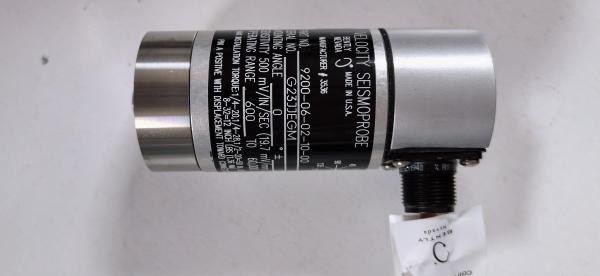

Bently Nevada 9200 Seismoprobe Velocity Transducer 20 mV/mm/s Sensitivity
Bently Nevada 9200 Seismoprobe Velocity Transducer 20 mV/mm/s Sensitivity
Bently Nevada 9200 Seismoprobe Velocity Transducer 20 mV/mm/s Sensitivity
Bently Nevada 9200 Seismoprobe Velocity Transducer 20 mV/mm/s Sensitivity
Bently Nevada 9200 Seismoprobe Velocity Transducer 20 mV/mm/s Sensitivity
Bently Nevada 9200 Seismoprobe Velocity Transducer 20 mV/mm/s Sensitivity
Bently Nevada 9200 Seismoprobe Velocity Transducer 20 mV/mm/s Sensitivity
Bently Nevada 9200 Seismoprobe Velocity Transducer 20 mV/mm/s Sensitivity
Specifications
Brand Name :
Bently Nevada
Model Number :
9200-06-02-10-00
Certification :
CE
Place of Origin :
USA
MOQ :
1pc
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
100pcs per month
Delivery Time :
12-16weeks
Packaging Details :
standard carton packing
Sensitivity :
20 mV/mm/s (500 mV/in/s), ±5% when properly terminated and oriented at the angle of calibration.
Calibration Load :
10 kΩ Terminal "A" to "B" Output taken across pins "A" and "B"
Sensitivity Temperature Coefficient :
0.2%/°C
Dynamic operating range :
2.54 mm (0.100 in) peak to peak maximum displacement
Velocity Range :
25 mm/s (1 in/s) (at +22 °C of casing vibration at 100 Hz with a 10 kΩ load.
Coil Resistance :
1.25 kΩ ±5%
Description
Bently Nevada 9200 Seismoprobe Velocity Transducers
Product Specifications
Attribute Value
Sensitivity 20 mV/mm/s (500 mV/in/s), ±5% when properly terminated and oriented at the angle of calibration.
Calibration Load 10 kΩ Terminal "A" to "B" Output taken across pins "A" and "B"
Sensitivity Temperature Coefficient 0.2%/°C
Dynamic operating range 2.54 mm (0.100 in) peak to peak maximum displacement
Velocity Range 25 mm/s (1 in/s) (at +22 °C of casing vibration at 100 Hz with a 10 kΩ load.
Coil Resistance 1.25 kΩ ±5%
Product Description
Bently Nevada Seismoprobe Velocity Transducer Systems are designed to measure absolute (relative to free space) bearing housing, casing, or structural vibration. The two-wire systems consist of a transducer and appropriate cable.
  • Moving-coil technology provides voltage output proportional to vibration velocity
  • Less sensitive to impact or impulsive excitation than solid-state velocity transducers
  • No external power required, ideal for portable measurement applications
  • Two-wire design for simplified installation
Ordering Information
Model Number Format: 9200-AA-BB-CC-DD
Transducer Mounting Angle/Minimum Operating Frequency Option
Code Specification
01 0 ±2.5, 4.5 Hz (270 cpm)
02 45 ±2.5, 4.5 Hz (270 cpm)
03 90 ±2.5, 4.5 Hz (270 cpm)
06 0 ±100, 10 Hz (600 cpm)
09 0 ±180, 15 Hz (900 cpm)
Connector/Cable Option
Code Specification
01 Top Mount (no cable)
02 Side Mount (no cable)
05 Terminal block top mount (no cable)
10 10 feet (3.0 meter)
15 15 feet (4.6 meter)
22 22 feet (6.7 meter)
32 32 feet (9.8 meter)
50 50 feet (15.2 meter)
Mounting Base Option
Code Specification
01 Circular; 1/4-20 UNC stud
02 Circular; 1/4-28 UNF stud
03 Rectangular flange
04 Circular; with three 8-32 threaded studs on a 44 mm (1.75 in) diameter bolt circle
05 No base; 1/2-20 UNF-3A stud
06 Isolated circular 1/4-20 UNC stud
07 Isolated circular 1/4-28 UNF stud
08 Isolated rectangular flange
09 Isolated circular 5/8-18 UNF stud
10 Circular; M10X1 stud
11 Isolated circular M10X1
12 Isolated circular 1/2-20 UNF-2A
Agency Approval Option
Code Specification
00 No Approvals
01 CSA
04 ATEX/IECEx
