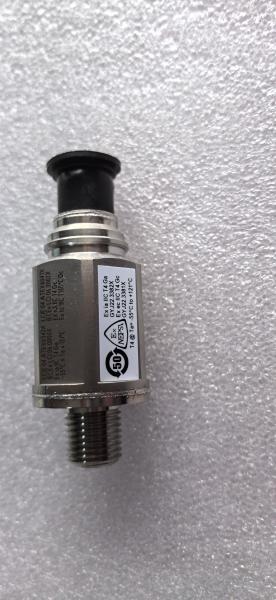

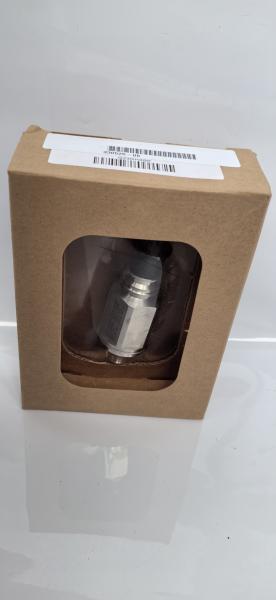

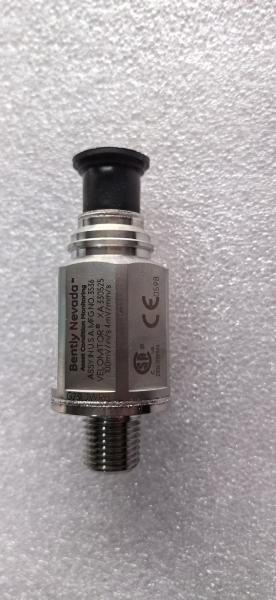

Bently Nevada 330525 Velomitor XA Vibration Sensor 4.5Hz
Bently Nevada 330525 Velomitor XA Vibration Sensor 4.5Hz
Bently Nevada 330525 Velomitor XA Vibration Sensor 4.5Hz
Bently Nevada 330525 Velomitor XA Vibration Sensor 4.5Hz
Bently Nevada 330525 Velomitor XA Vibration Sensor 4.5Hz
Bently Nevada 330525 Velomitor XA Vibration Sensor 4.5Hz
Bently Nevada 330525 Velomitor XA Vibration Sensor 4.5Hz
Bently Nevada 330525 Velomitor XA Vibration Sensor 4.5Hz
Bently Nevada 330525 Velomitor XA Vibration Sensor 4.5Hz
Bently Nevada 330525 Velomitor XA Vibration Sensor 4.5Hz
Specifications
Brand Name :
Bently Nevada
Model Number :
330525-CN/330525-00
Certification :
CE
Place of Origin :
USA
MOQ :
1pc
Payment Terms :
T/T
Supply Ability :
100pcs per month
Delivery Time :
12-16weeks
Packaging Details :
standard carton packing
Sensitivity :
Sensitivity
Frequency Response :
4.5 to 2,000 Hz (270 to 120,000 cpm) ±3.0 dB, 6.0 to 1,000 Hz (360 to 60,000 cpm) ±0.9 dB.
Weight :
156 g (5.5 oz), typical
Diameter :
28 mm (1.1 in)
Height :
73.1 mm (2.88 in)
Case Material :
316L stainless steel
Connector :
2-pin Mil-C-26482 hermeticallysealed, 316L stainless steel shell.
Mounting Torque :
45 N-m (33 ft-lb) maximum
Description
4.5Hz Bently Nevada Vibration Sensor Velomitor XA Piezo-Velocity Sensor 330525-CN 330525-00
Product Specifications
Sensitivity Sensitivity
Frequency Response 4.5 to 2,000 Hz (270 to 120,000 cpm) ±3.0 dB, 6.0 to 1,000 Hz (360 to 60,000 cpm) ±0.9 dB
Weight 156 g (5.5 oz), typical
Diameter 28 mm (1.1 in)
Height 73.1 mm (2.88 in)
Case Material 316L stainless steel
Connector 2-pin Mil-C-26482 hermetically sealed, 316L stainless steel shell
Mounting Torque 45 N-m (33 ft-lb) maximum
Product Description

The Velomitor XA (eXtended Application) Sensor is a ruggedized version of Bently Nevada's 330500 Velomitor Sensor. Its 316L stainless steel case and unique, weatherproof connector and cable assembly permit mounting without a housing. The Velomitor XA Sensor cable assembly is suitable for use in moist environments, and the Velomitor XA Sensor design meets the requirements of IP-65 and NEMA 4X dust ratings when properly installed with a mating extension cable.

Bently Nevada 330525 Velomitor XA Vibration Sensor 4.5Hz
Ordering Information
Agency Approval Option
00 None Required
01 CSA/NRTL/C
02 SIRA/CENELEC
106765-AA Interconnect Cable
Minimum length 1 meter (3.3 feet)
Maximum length 25 meters (82 feet)

Order in increments of 3 meters.

Terminal Housing 106769-AA
00 No fittings supplied
01 One ¾ NPT fitting
02 Two ¾ NPT fittings
Accessories
100076 330500/330525 Velomitor Sensor and Velomitor XA Sensor User Guide
02173007 Bulk cable; two-conductor twisted, shielded. 22 AWG cable without connectors or terminal lugs. Specify length in feet.
103537-01 Terminal Mounting Block. Provides simple field wiring connection and can be mounted inside any standard Proximitor Sensor housing. One terminal mounting block is needed for each Velomitor XA Sensor connection.
03839144 Splash-resistant boot cover for interconnect cable assembly. The boot is made from fluorosilicone elastomer. Boot color is blue.
03839142 Bottom clamp used to secure the boot to the Velomitor XA Sensor case.
03839143 Top clamp used to secure the boot to the interconnect cable assembly.
Related Part Numbers
16710-30
177230-01-01-CN
991-25-50-01-00
330105-02-12-05-02-00
21000-28-05-00-024-03-02
177313-02-02-00
330106-05-30-05-02-00
330105-02-12-05-02-CN
190501-00-00-CN
190501-00-00-CN
330106-05-30-05-02-CN
330105-02-12-10-02-00
200200-05-05-CN
200151-060-03-00
330106-05-30-10-02-00
330105-02-12-10-02-CN
CB2W100-32
330101-00-25-05-01-CN
200152-150-02-10
330106-05-30-10-02-CN
40180-02
330103-00-05-10-01-00
200200-05-05-CN
330130-080-00-00
330105-02-12-10-02-00
330101-00-16-10-02-CN
330130-040-00-00
CB2W100-32
330180-91-CN
330101-00-25-05-01-CN
330130-040-00-CN
330180-51-CN
330190-085-00-00
330102-00-17-10-02-CN
330130-080-01-00
330180-91-CN
330195-02-12-05-00
330102-02-12-10-02-00
330130-045-00-CN
330190-085-00-00
330400-01-CN
330103-00-05-10-01-00
330130-045-01-00
330195-02-12-05-00
330400-02-CN
330103-00-08-05-02-CN
330130-075-01-CN
330400-01-CN
330901-00-90-10-02-CN
330103-00-08-05-02-CN
330130-085-00-CN
330400-02-CN
990-04-70-01-00
330103-00-12-15-02-CN
330180-51-00
330525-CN
990-05-50-01-00
330104-00-06-05-01-CN
330902-02-12-05-02-CN
330901-00-90-10-02-CN
990-05-70-02-00
330104-00-08-05-02-CN
330907-05-30-10-02-00
330902-00-30-10-02-00
330180-91-00
330930-040-00-00
330130-045-03-00
330130-045-03-CN
