Bently Nevada 165855 Cylinder Pressure Transducer 0-689 Bar
Bently Nevada 165855 Cylinder Pressure Transducer 0-689 Bar
Bently Nevada 165855 Cylinder Pressure Transducer 0-689 Bar
Bently Nevada 165855 Cylinder Pressure Transducer 0-689 Bar
Bently Nevada 165855 Cylinder Pressure Transducer 0-689 Bar
Bently Nevada 165855 Cylinder Pressure Transducer 0-689 Bar
Specifications
Brand Name :
Bently Nevada
Model Number :
165855-15
Certification :
CE
Place of Origin :
USA
MOQ :
1pc
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
100pcs per month
Delivery Time :
12-16weeks
Packaging Details :
standard carton packing
Measurement Range :
0 to 100/ 250/ 500/ 1000/ 2500/ 5000/ 10,000 psia 0 to 6.8/ 17/ 34.5/ 69/172/ 345/ 689 bar
Proof (Over) Pressure :
1.5X Full Scale
Burst Pressure :
3X Full Scale (2X FS on 689 bar/ 10,000 psia units)
Full Scale Output :
10 ± 0.3 Vdc
Zero :
0.5 ± 0.1 Vdc
Power Supply :
18 to 30 Vdc
Description
Bently Nevada 165855 Cylinder Pressure Transducer Cylinder Pressure System
Product Specifications
Measurement Range 0 to 100/250/500/1000/2500/5000/10,000 psia
0 to 6.8/17/34.5/69/172/345/689 bar
Proof (Over) Pressure 1.5X Full Scale
Burst Pressure 3X Full Scale (2X FS on 689 bar/10,000 psia units)
Full Scale Output 10 ± 0.3 Vdc
Zero 0.5 ± 0.1 Vdc
Power Supply 18 to 30 Vdc
Product Description

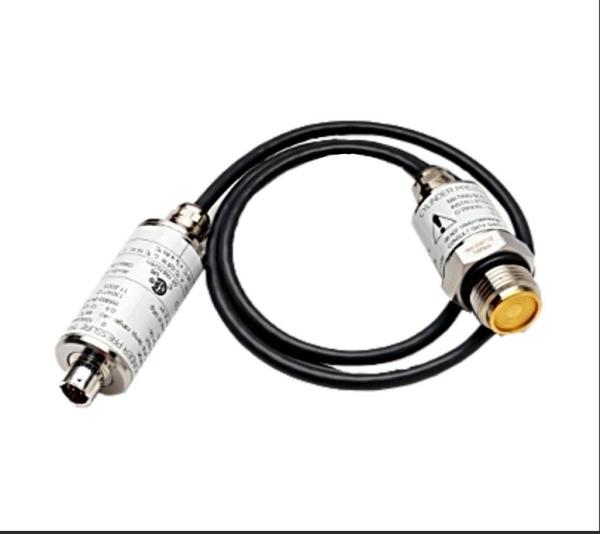

The Bently Nevada 165855 Cylinder Pressure Transducer, when combined with the 146824 Interconnect cable, forms a complete Cylinder Pressure System designed for measuring cyclic absolute pressure changes in reciprocating compressor cylinders. This system is an essential component of Reciprocating Compressor Condition Monitoring and Asset Management Systems when used with our 3500/77M Cylinder Pressure Monitor and System 1 Plant Asset Management Software.

  • Robust design for high reliability in harsh chemical environments
  • Patent-pending technology maintains accuracy even after extended cycling over large pressure gradients
  • Over-pressure resilience - recovers normal operation after application upsets
  • Environmental protection meets NEMA 4X and IP67 standards for moisture resistance

The transducer's wetted surface typically installs into an isolation valve or pressure indicator port on the compressor, often requiring a special adapter (such as the 166393 adapter) for proper sealing. The electronics portion is separated by 1 meter of cable and should be secured near the compressor for optimal performance.

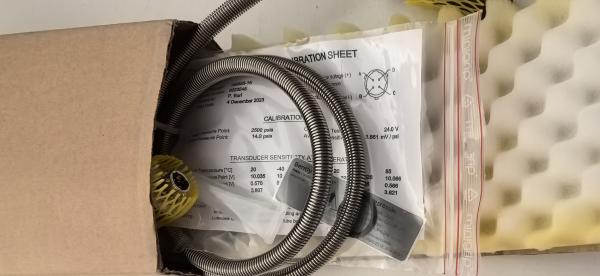

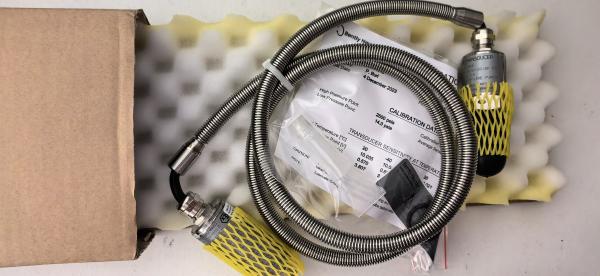

Each unit ships with pressure-temperature compensation data to optimize measurements when input into the 3500/77 Cylinder Pressure Monitor, minimizing temperature effects on transducer performance.

Ordering Information

Base Model: 165855-AA

Option Code Pressure Range
01 0 to 6.8 bar (0 to 100 psia)
02 0 to 17 bar (0 to 250 psia)
03 0 to 34.5 bar (0 to 500 psia)
04 0 to 69 bar (0 to 1,000 psia)
05 0 to 172 bar (0 to 2,500 psia)
06 0 to 345 bar (0 to 5,000 psia)
07 0 to 689 bar (0 to 10,000 psia)
11 0 to 6.8 bar (0 to 100 psia) w/ armor
12 0 to 17 bar (0 to 250 psia) w/ armor
13 0 to 34.5 bar (0 to 500 psia) w/ armor
14 0 to 69 bar (0 to 1,000 psia) w/ armor
15 0 to 172 bar (0 to 2,500 psia) w/ armor
16 0 to 345 bar (0 to 5,000 psia) w/ armor
17 0 to 689 bar (0 to 10,000 psia) w/ armor
