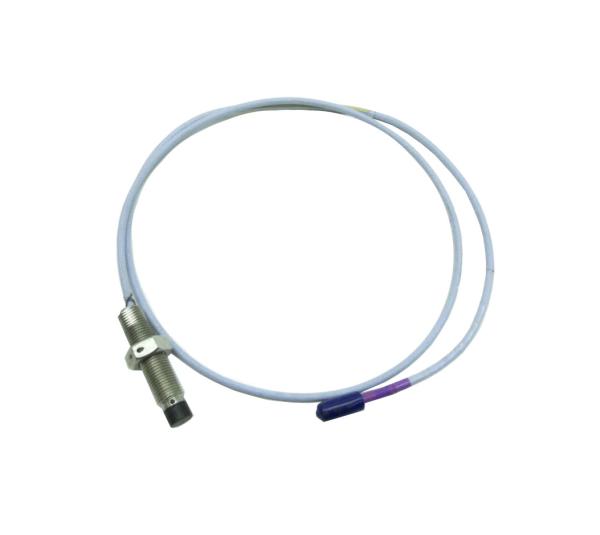

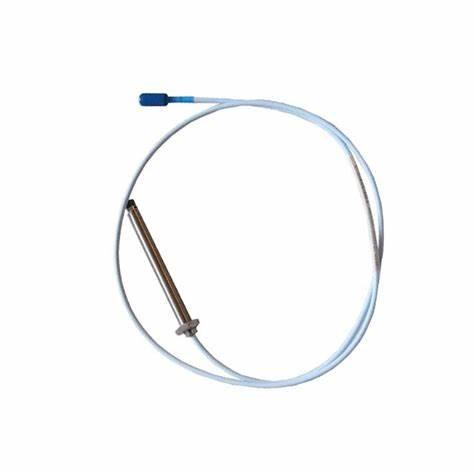

Bently Nevada 3300 XL 11mm Proximity Probe 330707 PPS Tip 5/8-18 UNF
Bently Nevada 3300 XL 11mm Proximity Probe 330707 PPS Tip 5/8-18 UNF
Bently Nevada 3300 XL 11mm Proximity Probe 330707 PPS Tip 5/8-18 UNF
Bently Nevada 3300 XL 11mm Proximity Probe 330707 PPS Tip 5/8-18 UNF
Bently Nevada 3300 XL 11mm Proximity Probe 330707 PPS Tip 5/8-18 UNF
Bently Nevada 3300 XL 11mm Proximity Probe 330707 PPS Tip 5/8-18 UNF
Specifications
Brand Name :
Bently Nevada
Model Number :
330707-00-25-10-12-00
Certification :
CE
Place of Origin :
USA
MOQ :
1pc
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
100pcs per month
Delivery Time :
12-16weeks
Packaging Details :
standard carton packing
Probe Tip Material :
Polyphenylene sulfide (PPS).
Polyphenylene sulfide (PPS). :
AISI 304 stainless steel (SST).
Proximitor Sensor Material :
A380 aluminum
System Length :
5 or 9 extension meters cable
Connector Material :
Gold-plated brass
Maximum torque :
0.565 N·m (5 in·lb)
Description

Bently Nevada 3300 XL 11 mm Proximity Probes 330707

The 3300 XL 11 mm probe comes in varying probe case configurations, including armored and unarmored ½-20, 5⁄8 -18, M14 X 1.5 and M16 X

1.5 probe threads. The reverse mount 3300 XL 11 mm probe comes standard with either 3⁄8 -24 or M10 X 1 threads. All components of the transducer system have gold-plated brass ClickLoc connectors. ClickLoc connectors lock into place, preventing the connection from becoming loose. The patented TipLoc molding method provides a robust bond between the probe tip and the probe body. The probe cable is securely attached to the probe tip utilizing our patented CableLoc design that provides 330 N (75 lb) pull strength.

Ordering Information

3300 XL 11 mm Proximity Probes

330701 3300 XL 11 mm Probe, 1/2-20 UNF thread, without armor
330702 3300 XL 11 mm Probe, 1/2-20 UNF thread, with armor
330707 3300 XL 11 mm Probe, 5/8-18 UNF thread, without armor
330708 3300 XL 11 mm Probe, 5/8-18 UNF thread, with armor

Part Number-AA-BB-CC-DD-EE

A:Unthreaded Length Option

Order in increments of 0.1 in

Length configurations:

Maximum unthreaded length:

8.9 in

Minimum unthreaded length:

0.0 in

Example: 0 4 = 0.4 in

B: Overall Case Length Option

Order in increments of 0.1 in

Threaded length configurations:

Maximum case length: 9.9 in

Minimum case length: 1.0 in

Example: 2 4 = 2.4 in

C: Total Length Option

1.0 meter (3.3 feet)

5.0 meters (16.4 feet)

9.0 meters (29.5 feet)

D: Connector and Cable-Type Option

0 1 Miniature coaxial ClickLoc connector with connector protector, standard cable

0 2 Miniature coaxial ClickLoc connector, standard cable

1 1 Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable

1 2 Miniature coaxial ClickLoc connector, FluidLoc cable

E: Agency Approval Option

0 0 Not required

0 5 Multiple Approvals

3300 XL 11 mm Proximity Probes,Metric

330703 3300 XL 11 mm Probe, M14 x 1.5 thread,without armor

330704 3300 XL 11 mm Probe, M14 x 1.5 thread,with armor

330709 3300 XL 11 mm Probe, M16 x 1.5 thread,without armor

330710 3300 XL 11 mm Probe, M16 x 1.5 thread,with armor

Part Number-AAA-BBB-CC-DD-EE

A:Unthreaded Length Option

Order in increments of 2 mm.

Length configuration:

Maximum unthreaded

length: 224 mm

Minimum unthreaded length:

0 mm

Example: 0 6 0 = 60 mm

B: Overall Case Length Option

Order in increments of 2 mm.

Metric thread configurations:

Maximum length:250 mm

Minimum length:26 mm

Example: 0 6 0 = 60 mm

C: Total Length Option

1.0 meter (3.3 feet)

5.0 meters (16.4 feet)

9.0 meters (29.5 feet)

D: Connector and Cable-Type Option

0 1 Miniature coaxial ClickLoc connector with connector protector, standard cable

0 2 Miniature coaxial ClickLoc connector, standard cable

1 1 Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable

D: Connector and Cable-Type Option

0 1 Miniature coaxial ClickLoc connector with connector protector, standard cable

0 2 Miniature coaxial ClickLoc connector, standard cable

1 1 Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable

3300 XL 11 mm Reverse Mount Probe

330705-02-18- CC-DD-EE 3/8-24 UNF threads

330706-005-046- CC-DD-EE M10 x 1 threads

C: Total Length Option

1.0 meter (3.3 feet)

5.0 meters (16.4 feet)

9.0 meters (29.5 feet)

D: Connector Option

0 2 Miniature ClickLoc coaxial connector

E: Agency Approval Option

0 0 Not required

0 5 Multiple Approvals
