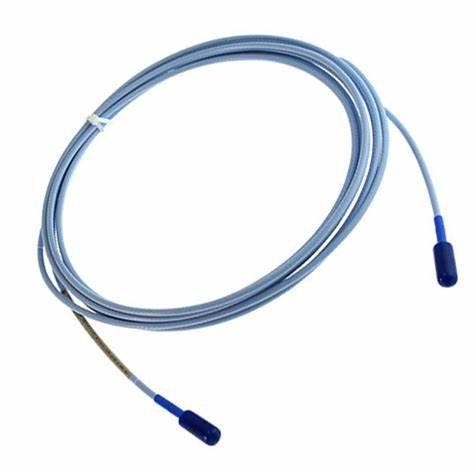

Bently Nevada 3300 XL 11mm Extension Cable 330730 with FEP Insulation
Bently Nevada 3300 XL 11mm Extension Cable 330730 with FEP Insulation
Bently Nevada 3300 XL 11mm Extension Cable 330730 with FEP Insulation
Bently Nevada 3300 XL 11mm Extension Cable 330730 with FEP Insulation
Specifications
Brand Name :
Bently Nevada
Model Number :
330730-080-10-00
Certification :
CE
Place of Origin :
USA
MOQ :
1pc
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
100pcs per month
Delivery Time :
12-16weeks
Packaging Details :
standard carton packing
Extension Cable Material :
75 Ω triaxial, fluoroethylene propylene (FEP) insulated.
Extension Cable Armor (optional) :
Flexible AISI 302 SST with FEP outer jacket.
Tensile Strength (maximum rated) :
330 N (75 pounds) probe case to probe lead. 270 N (60 pounds) at probe lead to extension cable connectors.
Connector Material :
Gold-plated brass
Weight :
Extension Cable:45 g/m (0.5 oz/ft);Armored Extension Cable:140 g/m (1.5 oz/ft)
Operating and Storage Temperature :
-52°C +351°F) to +177°C (-62°F to+351°F)
Description

Bently Nevada 3300 XL 11 mm Extension Cable 330730

The 3300 XL 11 mm probe comes in varying probe case configurations, including armored and unarmored ½-20, 5⁄8 -18, M14 X 1.5 and M16 X

1.5 probe threads. The reverse mount 3300 XL 11mm probe comes standard with either 3⁄8 -24 or M10 X 1 threads. All components of the

transducer system have gold-plated brass ClickLoc connectors. ClickLoc connectors lock into place, preventing the connection from becoming loose. The patented TipLoc molding method provides a robust bond between the probe tip and the probe body. The probe cable is securely attached to the probe tip utilizing our patented CableLoc design that provides 330 N (75 lb) pull strength.

Ordering Information

330730-AAA-BB-CC

Make sure that the extension cable length and the probe length, when added together,equal the Proximitor Sensor Total length.
A: Cable Length Option
0 4 0 4.0 meters (13.1 feet)
0 8 0 8.0 meters (26.2 feet)
B: Connector and Cable Option
0 0 Standard cable
0 1 Armored cable
0 2 Standard cable with connector protector
0 3 Armored cable with connector protector
1 0 FluidLoc cable
1 1 Armored FluidLoc cable
1 2 FluidLoc cable with connector protector
1 3 Armored FluidLoc cable with connector protector
C: Agency Approval Option
0 0 Not required
0 5 Multiple Approvals
