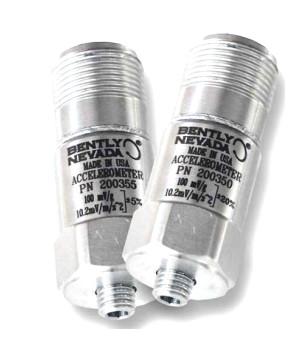

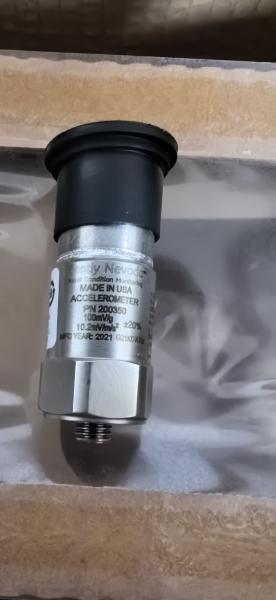

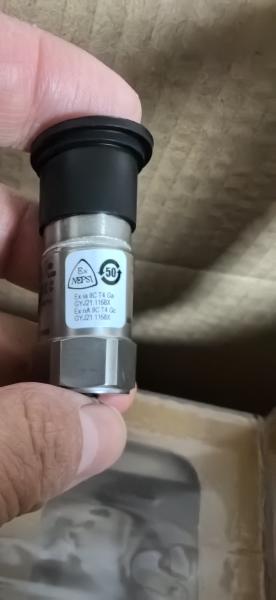

Bently Nevada 200350 Vibration Monitoring Accelerometer with 1/4-28 Mount
Bently Nevada 200350 Vibration Monitoring Accelerometer with 1/4-28 Mount
Bently Nevada 200350 Vibration Monitoring Accelerometer with 1/4-28 Mount
Bently Nevada 200350 Vibration Monitoring Accelerometer with 1/4-28 Mount
Bently Nevada 200350 Vibration Monitoring Accelerometer with 1/4-28 Mount
Bently Nevada 200350 Vibration Monitoring Accelerometer with 1/4-28 Mount
Specifications
Brand Name :
Bently Nevada
Model Number :
200350-02-00-CN
Certification :
RoHS
Place of Origin :
USA
MOQ :
1pc
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
100pcs per month
Delivery Time :
12-16weeks
Packaging Details :
standard carton packing
Mounting Thread :
1/4-28 Female
Mounting Torque (Maximum) :
2 to 5 ft-lb (2.7 to 6.8 N-m)
Sensing Element :
Ceramic
Sensing Geometry :
Shear
Housing Material :
Stainless Stee
Sealing :
Welded Hermetic
Description

Bently Nevada Machinery Condition Monitoring 200350

The 200350 and 200355 Accelerometers are general purpose, case-mounted seismic transducers designed for use with Trendmaster Pro Constant Current Direct Input Card, part number 149811-02 and the Seismic Direct Input Card, part number 164746-01.

The 200350 and 200355 Accelerometers are contained within a hermetically sealed, stainless steel case. The design provides an extremely rugged transducer, well suited for harsh industrial environments. Each transducer’s top mounted, 2-pin connector (MIL-C5015) allows for easy installation and removal of the interconnecting signal cable. A ¼-28 threaded hole on the bottom of the casing accommodates multiple mounting options.

The 200350 and 200355 Accelerometers contain a piezoelectric sensing device, which generates charge when subjected to vibration. This charge is then converted electronically to a differential voltage signal, which is proportional to the acceleration that is parallel to the sensitive axis of the transducer.

200350 – AA - BB - CC

A: Mounting Stud

00

¼-28 SS w/ Brass tip, 0.5”

01

¼-28 to M6 x 1.00 Stainless Steel

02

¼-28 to M8 x 1.25 Stainless Steel

09

No mounting stud

10

1/4 -28 Adhesive Stud Mount

11

M6x1 Adhesive Stud Mount

12

M8x1.25 Adhesive Stud Mount

13

Magnetic Base Kit

B: Tolerance

00

100 mV/g ± 20% (10.2 mV/m/s^2 ±20%)

C: Approvals

00

No Approvals

01

CSA, ATEX, IECEx
