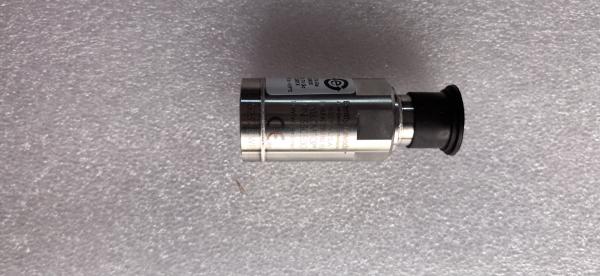

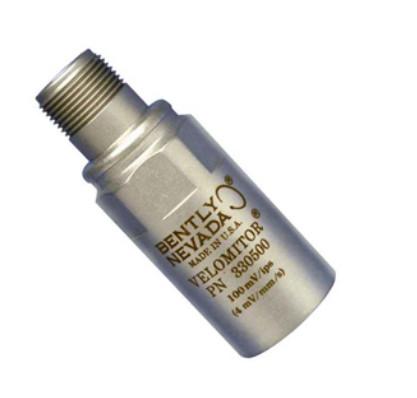

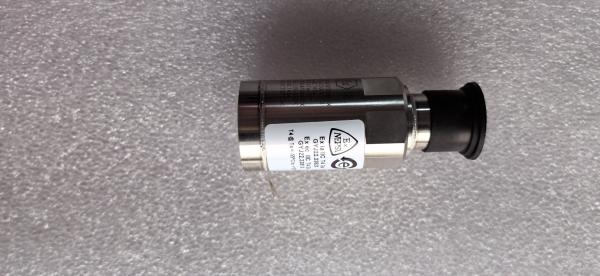

Bently Nevada Velomitor 330500 Piezo Velocity Sensor 1270 Mm/S Peak
Bently Nevada Velomitor 330500 Piezo Velocity Sensor 1270 Mm/S Peak
Bently Nevada Velomitor 330500 Piezo Velocity Sensor 1270 Mm/S Peak
Bently Nevada Velomitor 330500 Piezo Velocity Sensor 1270 Mm/S Peak
Bently Nevada Velomitor 330500 Piezo Velocity Sensor 1270 Mm/S Peak
Bently Nevada Velomitor 330500 Piezo Velocity Sensor 1270 Mm/S Peak
Specifications
Brand Name :
Bently Nevada
Model Number :
330500-02-CN
Certification :
CE
Place of Origin :
USA
MOQ :
1pc
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
100pcs per month
Delivery Time :
12-16weeks
Packaging Details :
standard carton packing
Sensitivity :
3.94mV/mm/s (100 mV/in/s) ±5%.
Frequency Response :
4.5 Hz to 5 kHz (270 cpm to 300 kcpm) ±3.0 dB. 6.0 Hz to 2.5 kHz (360 cpm to 150 kcpm) ±0.9 dB.
Temperature Sensitivity :
-14% to +7.5% typical over the operating temperature range.
Velocity Range :
1270 mm/s (50 in/s) peak.
Transverse Sensitivity :
Less than 5% of sensitivity.
Amplitude Linearity :
±2% to 152 mm/s (6 in/s) peak.
Description
Bently Nevada 330500 Velomitor Piezo-velocity Sensor Velocity Range 1270 mm/s 50 in/s peak
Product Specifications
Attribute Value
Sensitivity 3.94mV/mm/s (100 mV/in/s) ±5%.
Frequency Response 4.5 Hz to 5 kHz (270 cpm to 300 kcpm) ±3.0 dB. 6.0 Hz to 2.5 kHz (360 cpm to 150 kcpm) ±0.9 dB.
Temperature Sensitivity -14% to +7.5% typical over the operating temperature range.
Velocity Range 1270 mm/s (50 in/s) peak.
Transverse Sensitivity Less than 5% of sensitivity.
Amplitude Linearity ±2% to 152 mm/s (6 in/s) peak.
Product Description

Bently Nevada Velomitor Piezo-velocity Sensors are designed to measure absolute (relative to free space) bearing housing, casing, or structural vibration. The 330500 is a specialized piezoelectric accelerometer that incorporates embedded integrated electronics in a solid-state design.

Because the 330500 incorporates solid-state electronics and has no moving parts, it does not suffer from mechanical degradation and wear, and can be mounted vertically, horizontally, or at any other angle of orientation.

Ordering Information
Velomitor Piezo-velocity Sensor
330500-AA-BB
Mounting Thread Adaptor Options
  • 00 - No adapter
  • 01 - 1/2 - 20 UNF
  • 02 - M8 x 1
  • 03 - 1/4 - 28 UNF
  • 04 - 1/4 - 20 UNC
  • 05 - Unavailable for 330500
  • 06 - 5/8 - 18 UNF
  • 07 - 3/8 - 16 UNC
  • 08 - 1/2 - 13 UNC

Note: For 1/4-18 NPT mounting, order 330525.

Agency Approval Options
  • 00 - Not required
  • 01 - CSA/US/C
  • 02 - ATEX (European)
  • 04 - Multiple approvals (CSA, ATEX)
Bently Nevada Velomitor 330500 Piezo Velocity Sensor 1270 Mm/S Peak Bently Nevada Velomitor 330500 Piezo Velocity Sensor 1270 Mm/S Peak
