Specifications
Brand Name :
Leuze
Model Number :
IS 212MM/4N0 - 2E0 - S12
Certification :
3C
Place of Origin :
Germany
MOQ :
1
Price :
USD 100-10000/Piece
Payment Terms :
T/T
Supply Ability :
1/piece in stock
Delivery Time :
3-7
Packaging Details :
50*50*50mm
Mounting Type :
Through-beam, retro-reflective, or diffuse
Operating Voltage :
10-30 VDC
Connection Type :
Cable or Connector
Certifications :
CE, UL, and RoHS
Light Source :
LED
Response Time :
0.5 ms
Sensing Range :
Up to 1000 mm
Protection Class :
IP67
Description
IS 212MM/4N0-2E0-S12 Leuze Sensor M12 10-30VDC High Precision Industrial
Key Attributes
Mounting Type Through-beam, retro-reflective, or diffuse
Operating Voltage 10-30 VDC
Connection Type Cable or Connector
Certifications CE, UL, and RoHS
Light Source LED
Response Time 0.5 ms
Sensing Range Up to 1000 mm
Protection Class IP67
Product Overview
Precision Inductive Detection with Advanced Safety Features

The Leuze IS 212MM/4N0-2E0-S12 is a high-performance inductive proximity sensor engineered for reliable metal detection in industrial automation. With a standard sensing range of 2 mm (SN) and an adjustable operating range of 0-1.6 mm (SA), it accurately identifies ferrous and non-ferrous targets, including steel, aluminum, and copper alloys.

Its 3,000 Hz switching frequency and 0.5 ms response time ensure rapid object detection in high-speed conveyor systems or robotics. The sensor features short-circuit protection, reverse-polarity protection, and an IP67-rated nickel-plated brass housing, making it resistant to dust, water jets, and harsh chemicals.

Compact Design and Global Compliance

Designed for space-constrained installations, the IS 212MM/4N0-2E0-S12 boasts a cylindrical M12 x 60 mm housing with an embedded mounting option, ideal for flush or non-flush applications. The sensor's LED status indicator provides real-time feedback on switching states, enhancing troubleshooting efficiency.

Versatile Applications in Manufacturing and Logistics

This inductive sensor excels in automotive assembly lines, packaging machinery, and intralogistics systems, detecting metal components, tools, or product carriers with precision. Its background suppression technology eliminates false triggers from nearby metal surfaces, ensuring reliable performance in crowded workspaces.

Technical Specifications
Product Type Inductive proximity sensor with background suppression
Model IS 212MM/4N0-2E0-S12
Sensing Range
  • Typical operating range (SN): 2 mm (for ferrous targets)
  • Adjustable range (SA): 0-1.6 mm via potentiometer
  • Correction factors: Aluminum (0.35), Stainless Steel (0.85), Copper (0.3), Brass (0.5)
Output Configuration Single PNP transistor output (Normally Open, NO)
Electrical Specifications
  • Supply voltage: 10-30 V DC
  • Reverse polarity and short-circuit protection
  • Maximum output current: 200 mA
Performance
  • Response time: 0.5 ms
  • Switching frequency: 3,000 Hz
  • Repeatability: ±5% of SN
Mechanical Design
  • Housing material: Nickel-plated brass (IP67-rated)
  • Dimensions: M12 × 60 mm (cylindrical)
  • Weight: 25 g
Environmental Ratings
  • Operating temperature: -25°C to +70°C
  • Ecolab-compliant materials for food processing environments
Packaging

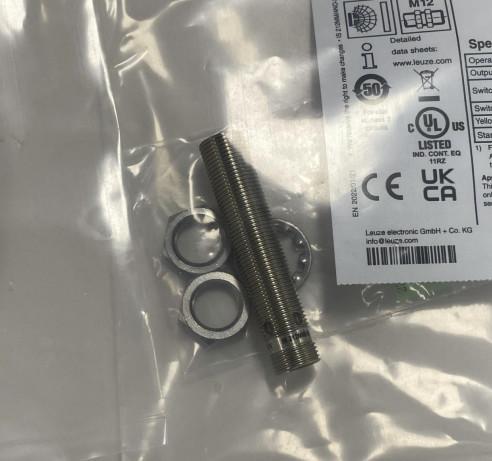

IS 212MM/4N0-2E0-S12 Leuze Sensor M12 10-30VDC High Precision Industrial
About Xiamen ZhiCheng Automation Technology Co., Ltd

We are a leading global supplier of control system components, specializing in control systems and drives. With many years of experience in the industrial sector, we consistently deliver the highest quality spare parts.

We specialize in PLCs, Sensors, HIM, and Transmitters from top brands including Bently Nevada, +GF+, ABB, Foxboro.

IS 212MM/4N0-2E0-S12 Leuze Sensor M12 10-30VDC High Precision Industrial IS 212MM/4N0-2E0-S12 Leuze Sensor M12 10-30VDC High Precision Industrial
