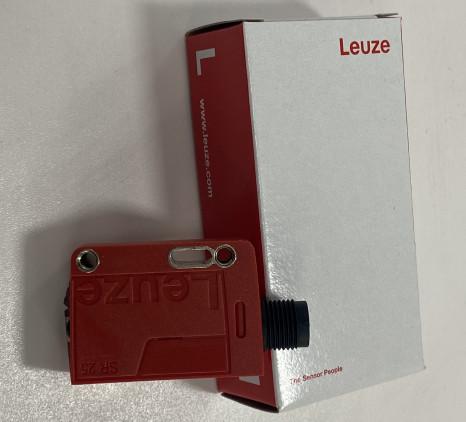

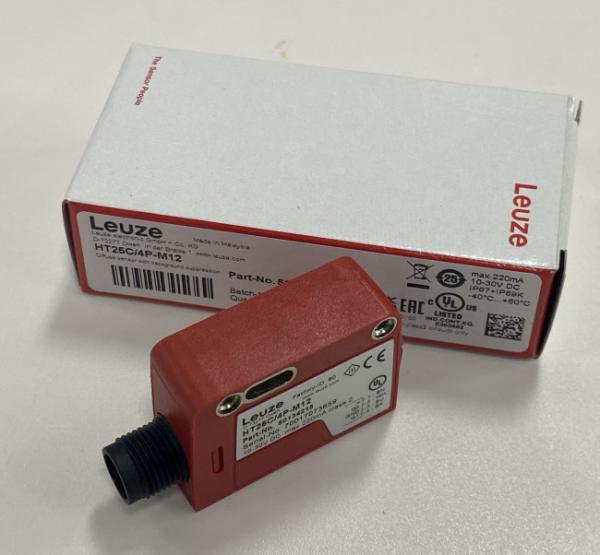

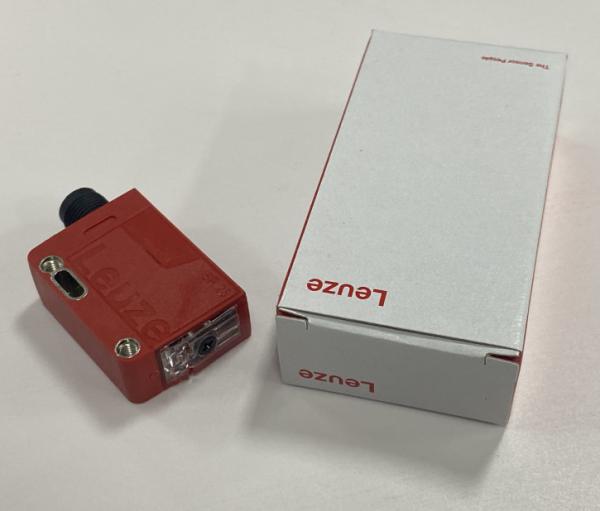

HT25C/4P-M12 Leuze Laser Sensor Energetic Diffuse Sensor 250mm Range IP67 10-30V DC
HT25C/4P-M12 Leuze Laser Sensor Energetic Diffuse Sensor 250mm Range IP67 10-30V DC
HT25C/4P-M12 Leuze Laser Sensor Energetic Diffuse Sensor 250mm Range IP67 10-30V DC
HT25C/4P-M12 Leuze Laser Sensor Energetic Diffuse Sensor 250mm Range IP67 10-30V DC
HT25C/4P-M12 Leuze Laser Sensor Energetic Diffuse Sensor 250mm Range IP67 10-30V DC
HT25C/4P-M12 Leuze Laser Sensor Energetic Diffuse Sensor 250mm Range IP67 10-30V DC
HT25C/4P-M12 Leuze Laser Sensor Energetic Diffuse Sensor 250mm Range IP67 10-30V DC
HT25C/4P-M12 Leuze Laser Sensor Energetic Diffuse Sensor 250mm Range IP67 10-30V DC
Specifications
Brand Name :
Leuze
Model Number :
HT25C/4P-M12
Certification :
3C
Place of Origin :
Germany
MOQ :
1
Price :
USD 100-10000/Piece
Payment Terms :
T/T
Supply Ability :
1/piece in stock
Delivery Time :
3-7
Packaging Details :
50*50*50mm
Response Time :
0.5 ms
Weight :
100 g
Operating Principle :
Optoelectronic
Operating Temperature :
-10 to 55°C
Light Source :
LED
Dimensions :
50 x 50 x 20 mm
Supply Voltage :
10-30 VDC
Protection Class :
IP67
Description

Advanced Diffuse Reflection Technology with Background Suppression

The Leuze HT25C/4P-M12 is a high-performance photoelectric sensor designed for industrial automation applications requiring precise object detection. Leveraging diffuse reflection technology with background suppression, it accurately identifies metallic and non-metallic targets while ignoring background interference, ensuring reliable operation in complex environments. With a maximum sensing range of 1.2 meters (white 90% reflectivity) and adjustable sensitivity via a multiturn potentiometer, it adapts to various object colors and surfaces, including dark or transparent materials. The sensor features a red LED light source (640 nm wavelength) and a compact cubic housing (15 x 42.7 x 30 mm), making it suitable for space-constrained installations. Its IP67/IP69K protection rating withstands dust, water jets, and high-pressure cleaning, ensuring durability in harsh industrial settings .

Dual PNP Outputs and Robust Electrical Specifications

Equipped with two independent PNP transistor outputs, the HT25C/4P-M12 offers versatile switching options: one for "light-on" (object detected) and another for "dark-on" (no object detected). This dual configuration enables simultaneous monitoring of two distinct processes or redundancy in critical applications. The sensor operates on a 10–30 V DC power supply with short-circuit and reverse-polarity protection, ensuring compatibility with standard industrial systems. It delivers a fast response time of 0.5 ms and a switching frequency of 1,000 Hz, ideal for high-speed conveyor belts or packaging lines where rapid detection is essential. The M12 x 1 4-pin PUR connector guarantees secure and vibration-resistant connections, while the -40°C to +60°C operating temperature range ensures stability in extreme climates .

Versatile Applications in Automation and Logistics

The HT25C/4P-M12 excels in intralogistics, packaging, and factory automation by detecting objects on conveyor belts, sorting systems, or assembly lines. Its background suppression technology eliminates false triggers from reflective surfaces or adjacent objects, making it suitable for detecting transparent films, glossy plastics, or small parts. The sensor’s adjustable range (50–1,200 mm) and small light spot design (15 mm x 40 mm at 300 mm) enhance precision in tight spaces. Additionally, its c UL us certification and compliance with IEC 60947-5-2 standards ensure global compatibility. Whether used in food processing plants (due to Ecolab-compliant materials) or automotive manufacturing, this sensor optimizes productivity by minimizing downtime and improving process reliability .

Parameter Specification
Product Type Diffuse reflection photoelectric sensor with background suppression
Model HT25C/4P-M12
Sensing Range - White (90% reflectivity): 0–1.2 m
- Gray (18% reflectivity): 0.005–0.75 m
- Black (6% reflectivity): 0.005–0.65 m
- Adjustable range: 50–1,200 mm via multiturn potentiometer
Light Source Red LED (640 nm wavelength), class 1 laser safety compliant
Output Configuration Two independent PNP transistor outputs:
- Output 1: Light-on (object detected)
- Output 2: Dark-on (no object detected)
Electrical Specifications - Supply voltage: 10–30 V DC
- Reverse polarity and short-circuit protection
- Open-circuit current: ≤20 mA
- Maximum output current: 100 mA per channel
Performance - Response time: 0.5 ms
- Switching frequency: 1,000 Hz
- Black-white error: <10% up to 400 mm
Mechanical Design - Housing material: ABS plastic (IP67/IP69K protection)
- Dimensions: 15 mm (W) × 42.7 mm (H) × 30 mm (L)
- Weight: 22 g
- Mounting: Through-hole with M4 threads or optional mounting devices
Connection M12 × 1 male connector (4-pin PUR), A-coded
Environmental Ratings - Operating temperature: -40°C to +60°C
- Storage temperature: -40°C to +70°C
- Ecolab-compliant materials for food processing environments
Certifications - c UL us certification
- Compliant with IEC 60947-5-2 standards
Applications Ideal for high-speed conveyor systems, packaging machinery, intralogistics, automotive assembly lines, and general factory automation requiring reliable detection of metallic/non-metallic objects in challenging conditions.
