Specifications
Totalizer Functions :
3 Totalizers (2 Resettable, 1 Permanent)
Power Supply :
Dual 3.6V Lithium Batteries
Payment Terms :
T/T
Product Model :
+GF+ Signet 3-8150-P0
Price :
USD 100-10000/Piece
Compatible Pipe Size :
1/2" to 4" (DN15–DN100)
MOQ :
1
Place of Origin :
China
Product Type :
Battery-Powered Flow Totalizer
Model Number :
3-8150-P0
Packaging Details :
50*50*50mm
Display Type :
Large LCD Flow Rate & Totalizer Display
Certification :
3C
Delivery Time :
3-7
Brand Name :
+GF+
Supply Ability :
1/piece in stock
Enclosure Rating :
NEMA 4X / IP65
Mounting Configuration :
Integral Mount with Signet 515 Flow Sensor
Description

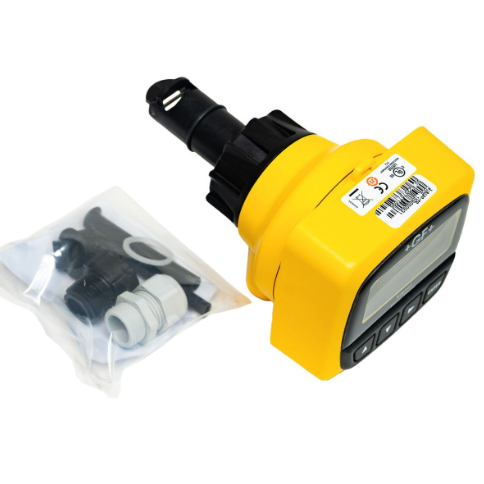

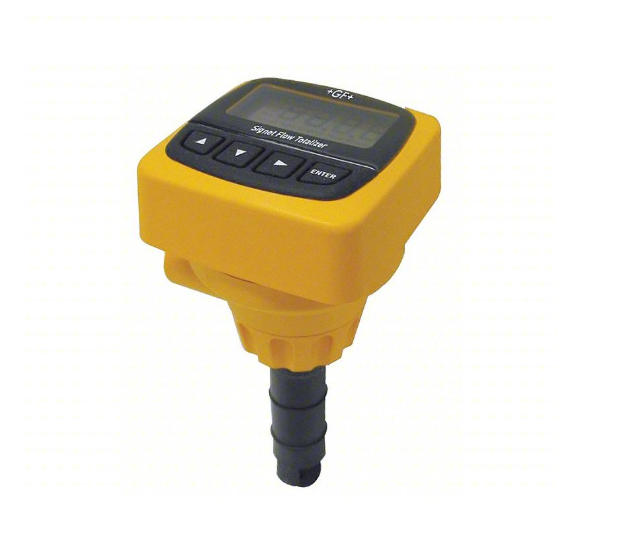

Integral‑Mount Battery‑Powered Flow Totalizer (Model 3‑8150‑P0)

The +GF+ Signet 3‑8150‑P0​ is an integral‑mount, battery‑powered flow totalizer system​ supplied with a 515 paddlewheel insertion sensor​ (PP body / PVDF rotor / Ti pin) for ½–4″ pipe. Key parameters: accepts pulse input 1–400 Hz​ from 515/525 sensors, accuracy ±0.5% of reading, LCD showing flow rate + volume, and two 3.6 V lithium AA cells​ (nominal ≈4‑year​ life) in a NEMA 4X / IP65​ enclosure.

Where It’s Used, What It Does, and Why It’s Chosen

Its core automation function is unattended, local flow‑rate indication and cumulative volume totalization—ideal for wastewater flow accumulation, irrigation, filtration/RO concentrate, process‑cooling loops, and remote sites without panel power. Advantages include no external power wiring, a security code​ to prevent tampering, Auto‑Cal (K‑factor entry), a no‑flow indicator, and display averaging—giving a low‑maintenance, audit‑friendly totalizer that can still allow remote reset​ where needed.

Product Specifications: GF Signet 3-8150-P0

Parameter Specification
Product Type Battery-Powered Flow Totalizer (Integral Mount)
Compatible Sensors Signet 515 & 525 Paddlewheel Flow Sensors
Display 4-digit (flow rate) + 8-digit (totalizer) LCD
Totalizer Function Three totalizers: 2 resettable (1 local, 1 code-protected) + 1 permanent
Accuracy ±0.5% of reading
Input Frequency Range 0 ~ 400 Hz
Power Supply Two 3.6V AA-size Lithium Thionyl Chloride batteries
Battery Life Up to 4 years (nominal @ 50°C)
Enclosure Rating NEMA 4X / IP65 (100% sealed for field-mount units)
Operating Temp. -10°C ~ 65°C (14°F ~ 149°F)
Housing Material PBT Resin
Wetted Materials (Sensor) PP/PVDF/Titanium/FKM
Compatible Pipe Sizes 1/2" ~ 4"
Key Features AutoCal Calibration, User-Selectable Security Code, No-Flow Indicator, Display Averaging
Compliance CE, FCC, UL, CUL, RoHS, China RoHS
