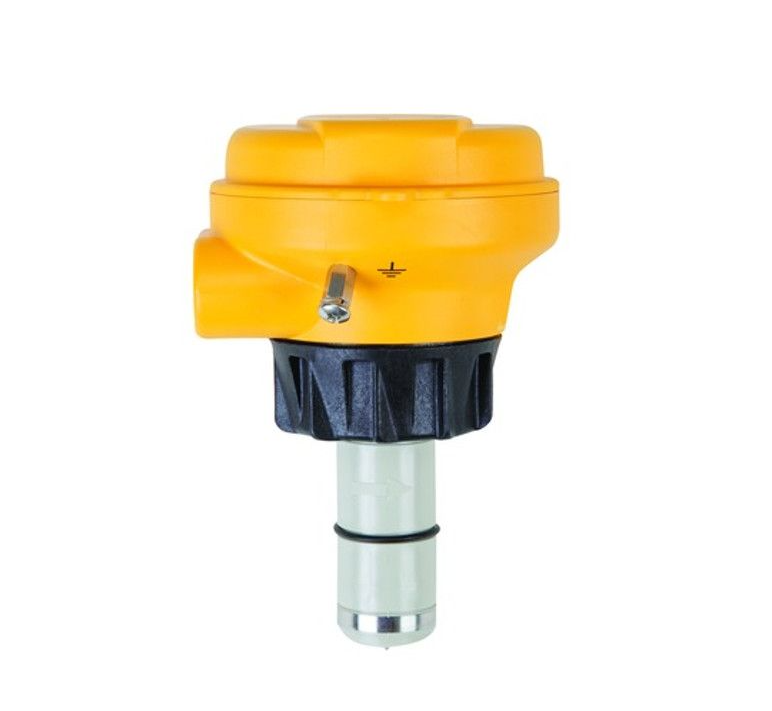

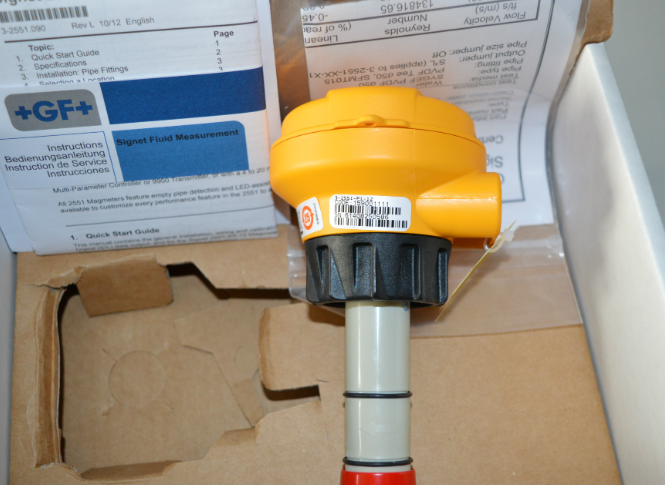

+GF+ 3-2551-T0-12 - Flow-Measure/Temp-Detect - Heat Resistant Accurate Liquid Flow Meter
+GF+ 3-2551-T0-12 - Flow-Measure/Temp-Detect - Heat Resistant Accurate Liquid Flow Meter
+GF+ 3-2551-T0-12 - Flow-Measure/Temp-Detect - Heat Resistant Accurate Liquid Flow Meter
+GF+ 3-2551-T0-12 - Flow-Measure/Temp-Detect - Heat Resistant Accurate Liquid Flow Meter
+GF+ 3-2551-T0-12 - Flow-Measure/Temp-Detect - Heat Resistant Accurate Liquid Flow Meter
+GF+ 3-2551-T0-12 - Flow-Measure/Temp-Detect - Heat Resistant Accurate Liquid Flow Meter
Specifications
Sensor Body Material :
PVDF (Polyvinylidene Fluoride)
MOQ :
1
Delivery Time :
3-7
Product Type :
Electromagnetic Flow Sensor (Magmeter)
Model Number :
3-2551-T0-12
Flow Velocity Range :
0.05–10 m/s (0.15–33 ft/s)
Payment Terms :
T/T
Electrode Material :
Titanium
Price :
USD 100-10000/Piece
Output Signal :
4-20 mA Analog Output
Supply Ability :
1/piece in stock
Product Model :
+GF+ Signet 3-2551-T0-12
Brand Name :
+GF+
Packaging Details :
50*50*50mm
Measurement Technology :
Patented Magmeter® Electromagnetic Sensing
Certification :
3C
Pipe Size Compatibility :
DN125–DN200 (5"–8")
Place of Origin :
China
Description

PVDF/Titanium Insertion Magmeter — Blind 4–20 mA (Model 3‑2551‑T0‑12)

The +GF+ Signet 3‑2551‑T0‑12​ is a blind (no‑display) insertion‑style electromagnetic flow sensor​ with a PVDF body and Titanium electrodes/grounding ring, sized for ½–4″ (DN15–DN100)​ full‑pipe conductive‑liquid service. Key parameters: flow range 0.05–10 m/s, linearity ±1% reading +0.1% FS, repeatability ±0.5%, minimum conductivity 20 µS/cm, and a 2‑wire loop‑powered 4–20 mA​ output requiring 21.6–26.4 VDC​ (max 22.1 mA, max loop impedance 300 Ω). The NEMA 4X / IP65​ assembly mounts via Signet fittings with automatic insertion‑depth alignment, and provides empty‑pipe detection​ (zero flow output when not wetted) with no moving parts and no pressure drop.

Automation Role — Where It's Used, Core Function & Advantages

It feeds a plant‑standard isolated 4–20 mA flow signal​ straight into a PLC/DCS, chart recorder, or SCADA​ for pump protection interlocks, flow‑proportional dosing, totalization, and alarm/monitoring logic—no separate transmitter required. Typical use cases: chemical processing, wastewater/neutralization, scrubber recirculation, metal recovery/leachate, and industrial water distribution​ where the medium is conductive but potentially dirty or corrosive. Advantages are the PVDF/Ti wetted path​ for broad chemical resistance, long‑run 4–20 mA transmission (up to 300 m), and a maintenance‑light, drift‑free magmeter principle​ that stays online even in harsh 24/7 service.

Product Specifications: GF Signet 3-2551-T0-12

Parameter Specification
Model / Part No. 3-2551-T0-12 (Code: 159 001 113)
Product Type Insertion-style Magnetic Flow Sensor (Magmeter)
Wetted Materials Sensor Body: PVDF; Electrode: Titanium
Output Signal 4-20 mA
Mounting Type / Display Integral Mount / No Display (Blind Version)
Pipe Size Compatibility DN15 to DN100 (½″ to 4″)
Flow Velocity Range 0.05 to 10 m/s (0.15 to 33 ft/s)
Linearity / Repeatability ±1% of reading + 0.1% of full scale / ±0.5% of reading @ 25°C
Max. Operating Pressure 10.3 bar @ 25°C (150 psi @ 77°F)
Operating Temperature -10°C to 70°C (14°F to 158°F)
