7/8 5 Pin Female Screw Locking Field Wireable Connector
7/8 5 Pin Female Screw Locking Field Wireable Connector
7/8 5 Pin Female Screw Locking Field Wireable Connector
7/8 5 Pin Female Screw Locking Field Wireable Connector
Specifications
Brand Name :
KRONZ
Model Number :
H7805F-9/R
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
50 pieces
Price :
Negotiable
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Polybag packing
Contact nut material :
Zinc alloy, nickle-plated
Contact carrier material :
PA, black
Housing material :
PBT/PA, black
Seal material :
FPM/FKM
Insulation Resistance :
≥ 100MΩ
Contact resistance :
≤ 5mΩ
Ambient temperature :
-25~+85℃
Connector type :
Screw Locking
Description

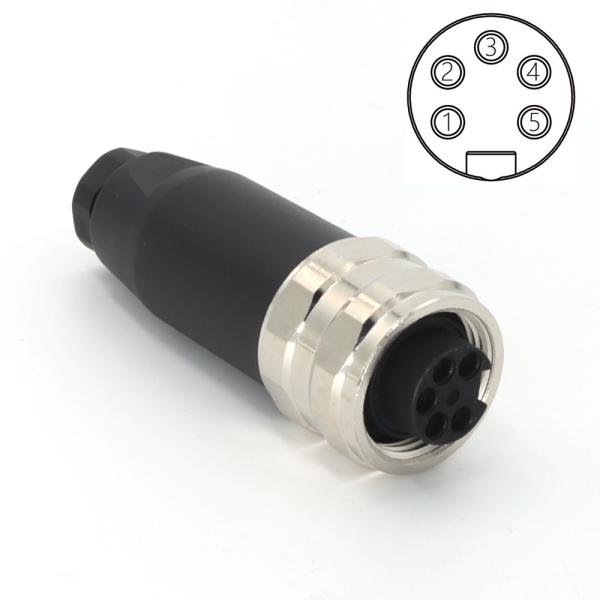

7/8" Field-wireable Assembly Connector 5 Pin Female Screw Locking


The 7/8" 5-Pin Female Field Assembly Connector is a heavy-duty circular connector designed for high-reliability power and signal transmission in industrial applications. With a screw-locking mechanism for secure mating and a field-wireable design, it enables quick, tool-assisted installation without soldering. Ideal for motors, sensors, and factory automation systems, it supports high-current applications with superior mechanical durability.


Features:

  • Connector Type: 7/8" Circular Connector – Female, 5-Pin

  • Connection Method: Screw terminal – field wireable (no soldering required)

  • Locking Mechanism: Threaded screw locking for vibration resistance

  • Rated Voltage: Up to 300V AC/DC (depending on configuration)

  • Rated Current: Typically 9A or higher

  • Ingress Protection: IP67 when mated – waterproof and dustproof

  • Housing Material: Rugged thermoplastic or metal shell (varies by model)

  • Cable Entry Support: For cable diameters typically 6–12 mm

  • Wire Size Support: AWG 18–14 (0.75–2.5 mm²)

  • Operating Temperature: -25°C to +85°C

  • Standards Compliance: Typically meets UL, CSA, and IEC standards (check model-specific datasheet)


Product Images

7/8

7/8

7/8

Product Dimension Drawing

7/8


Technical Parameters

Thread type 7/8”-16UN
Contact nut material Zinc alloy, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material PBT/PA, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67


Pin assignment Connection method Coding Rated current Voltage Cable outlet External cable diameter Model No.
7/8 Screw connection A 8A 600V Straight 6-8mm H7805F-9/R
