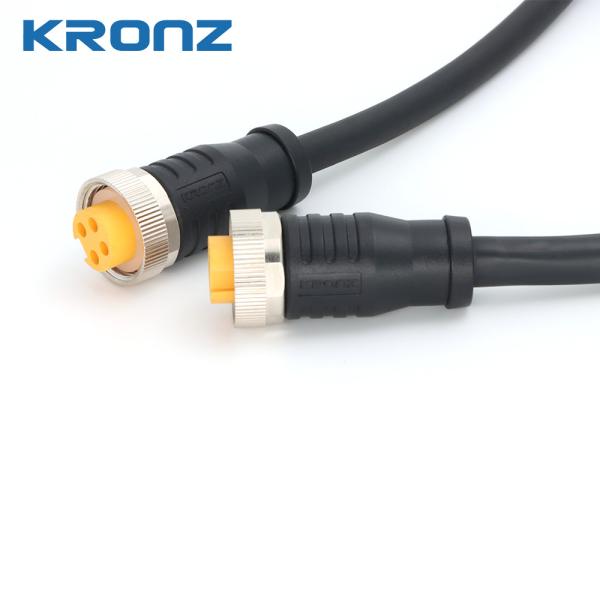

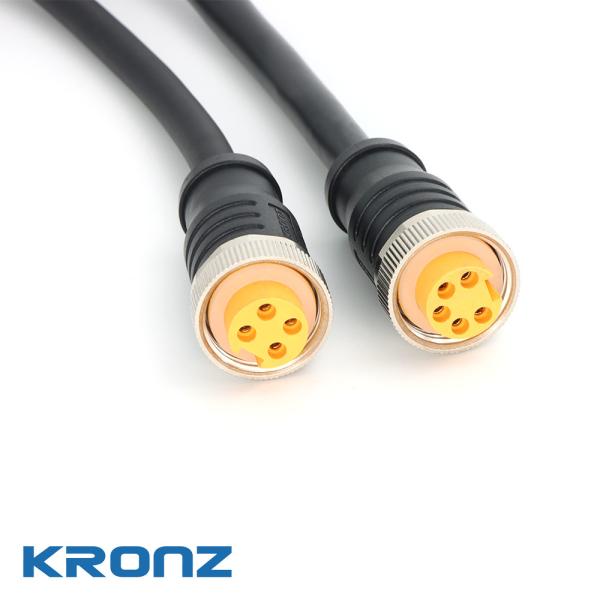

IP67 Waterproof Circular Connector 7/8 With 4×0.15 (4×16AWG) Wire Gauge
IP67 Waterproof Circular Connector 7/8 With 4×0.15 (4×16AWG) Wire Gauge
IP67 Waterproof Circular Connector 7/8 With 4×0.15 (4×16AWG) Wire Gauge
IP67 Waterproof Circular Connector 7/8 With 4×0.15 (4×16AWG) Wire Gauge
IP67 Waterproof Circular Connector 7/8 With 4×0.15 (4×16AWG) Wire Gauge
IP67 Waterproof Circular Connector 7/8 With 4×0.15 (4×16AWG) Wire Gauge
Specifications
Brand Name :
KRONZ
Model Number :
M7804F-2/P00K
Place of Origin :
Guangdong, China
Certification :
CE
MOQ :
5
Price :
Negotiable
Packaging Details :
Polybag packing
Delivery Time :
5-8 working days
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pieces per month
Contact resistance :
≤5mΩ
Application :
Industrial Automation
Mating cycles :
>100
Ambient temperature :
-25~+85℃
Seal Material :
FPM/FKM
Pollution degree :
3
Wire color :
1=BK 2=BU 3=BN 4=WH
Voltage :
600V
Description

The 7/8" Connector is a reliable and efficient Industrial Automation Connector designed to meet the demands of industrial applications. With a Degree of Protection rated at IP67, this Circular Connector ensures a high level of protection against dust and water ingress, making it suitable for use in harsh environments.

Equipped with a Coding of A, this Industrial Ethernet Connector offers secure and accurate connections, minimizing the risk of incorrect mating. The low Contact Resistance of ≤5mΩ guarantees optimal electrical conductivity, reducing signal loss and ensuring reliable data transmission in industrial automation systems.

Features:

  • Product Name: 7/8" Connector
  • Shielded: No
  • Wire Gauge:
  • 4×0.15 (4×16AWG)
  • Contact Carrier Material: PA, Black
  • Pin: 4 Pin
  • Connector Type: Straight
IP67 Waterproof Circular Connector 7/8IP67 Waterproof Circular Connector 7/8

Technical Parameters:

Thread Type 7/8" - 16UN
Contact Nut Material Brass, Nickle-plated
Wire color 1=BK 2=BU 3=BN 4=WH
Coding A
Application Industrial Automation
Cable Length 2/5/10meter Or Customized
Contact Carrier Material PA, Black
Mating cycles >100
Cable Outlet Straight
Rated Current 8A

Support and Services:

Our Product Technical Support and Services for the 7/8" Connector include:

- Troubleshooting assistance for any issues related to the connector.

- Guidance on proper installation and use of the connector.

- Product training and information sessions for users.

- Warranty support and assistance with product returns or exchanges.

IP67 Waterproof Circular Connector 7/8IP67 Waterproof Circular Connector 7/8IP67 Waterproof Circular Connector 7/8IP67 Waterproof Circular Connector 7/8IP67 Waterproof Circular Connector 7/8
