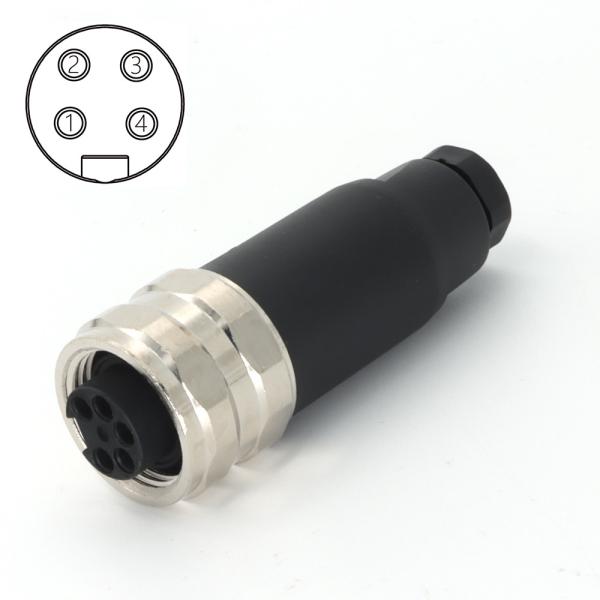

IP67 7/8 Female Connector 4 Pin Field Wireable Assembly Connectors
IP67 7/8 Female Connector 4 Pin Field Wireable Assembly Connectors
IP67 7/8 Female Connector 4 Pin Field Wireable Assembly Connectors
IP67 7/8 Female Connector 4 Pin Field Wireable Assembly Connectors
Specifications
Brand Name :
KRONZ
Model Number :
H7804F-9/R
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
50 pieces
Price :
Negotiable
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Polybag packing
Description :

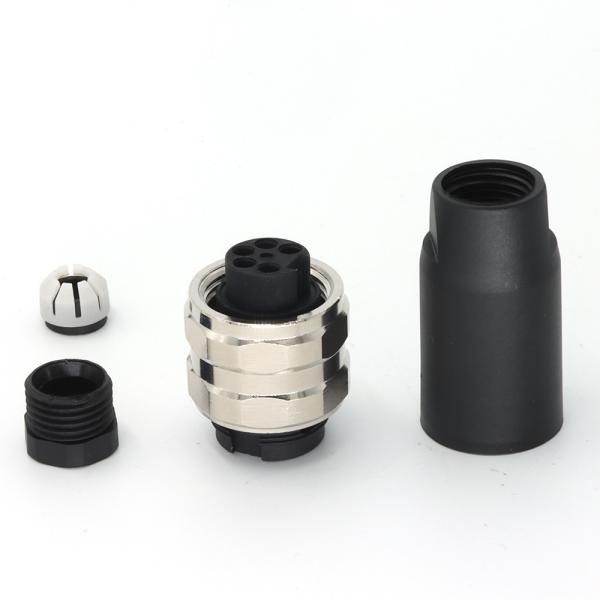

7/8" field-wireable assembly connector
Contact nut material :
Zinc alloy, nickle-plated
Contact carrier material :
PA, black
Seal material :
FPM/FKM
Ambient temperature :
-25~+85℃
Connector type :
Screw Locking
Housing material :
PBT/PA, black
Degree of protection :
IP67
Description

The 7/8" field-wireable assembly connector is a specific connector type that has 4 or 5 wire receptacles, and the connector is 7/8" in diameter. ‌This kind of connector is usually used in situations where high electrical performance and reliable connection are required, ‌such as industrial automation, ‌machinery manufacturing and other fields.IP67 7/8

IP67 7/8

Technical Data

Thread type 7/8”-16UN
Contact nut material Zinc alloy, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material PBT/PA, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67


Pin assignment Connection method Coding Rated current Voltage Cable outlet External cable diameter Model No.
IP67 7/8 Screw connection A 8A 600V Straight 6-8mm H7804F-9/R
