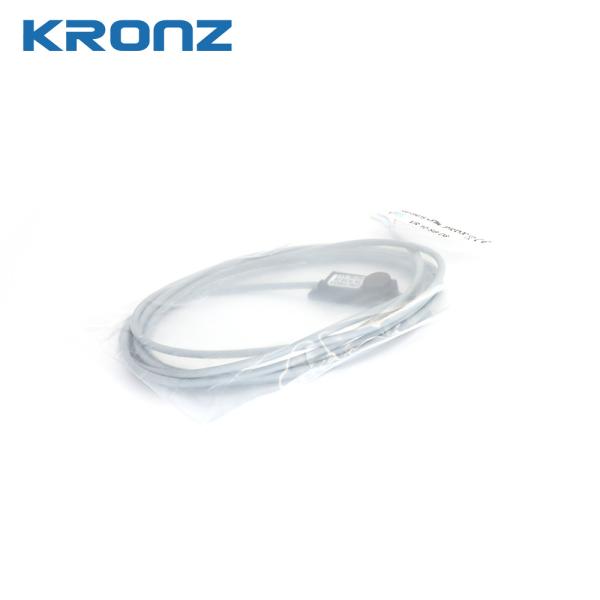

10 / 35VDC Operating Voltage Industrial Inductive Sensor With PVDF Housing
10 / 35VDC Operating Voltage Industrial Inductive Sensor With PVDF Housing
10 / 35VDC Operating Voltage Industrial Inductive Sensor With PVDF Housing
10 / 35VDC Operating Voltage Industrial Inductive Sensor With PVDF Housing
Specifications
Brand Name :
KRONZ
Model Number :
VR-10-S-B-D8
Place of Origin :
Guangdong, China
Certification :
CE
MOQ :
1
Price :
Negotiable
Packaging Details :
Polybag packing
Delivery Time :
5-8 working days
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pieces per month
Output current max. le :
Max.250mA
Flush mounting :
No
Connection :
Cable 2m, PVC, 3x0.14mm2
Voltage drop Ud :
Max. ≤ 3.5 V
Frequency of operating cycles :
Max. 500 Hz
No load current lo :
Tip. 15mA
Operating distance Sn :
8 Mm
Active surface :
PVDF
Description

The Inductive Sensors product is a reliable and versatile solution for various industrial applications. This rectangular sensor offers exceptional repeat accuracy, with a rate of less than 5%, ensuring precise and consistent detection capabilities. With a maximum frequency of operating cycles reaching up to 500 Hz, this sensor can efficiently handle high-speed processes with ease.
Equipped with a distinctive yellow LED display, the Inductive Sensors product provides clear and visible indication of its status, facilitating quick and easy monitoring. The LED display enhances the sensor's visibility in different working environments, ensuring efficient operation and maintenance.
10 / 35VDC Operating Voltage Industrial Inductive Sensor With PVDF Housing10 / 35VDC Operating Voltage Industrial Inductive Sensor With PVDF Housing

Technical Parameter

Item No. VR-10-S-B-D8
Output PNP normally open
Operating distance Sn 8 mm
Flush mounting no
Electrical version 3 wires DC
Operating voltage Ub 10...35 Vdc
Output current max. Ie max. 250mA
Voltage drop Ud max. < 3.5 V
Permitted residual ripple max. 10%
No load current Io tip. 15mA
Frequency of operating cycles max. 500 Hz

10 / 35VDC Operating Voltage Industrial Inductive Sensor With PVDF Housing
