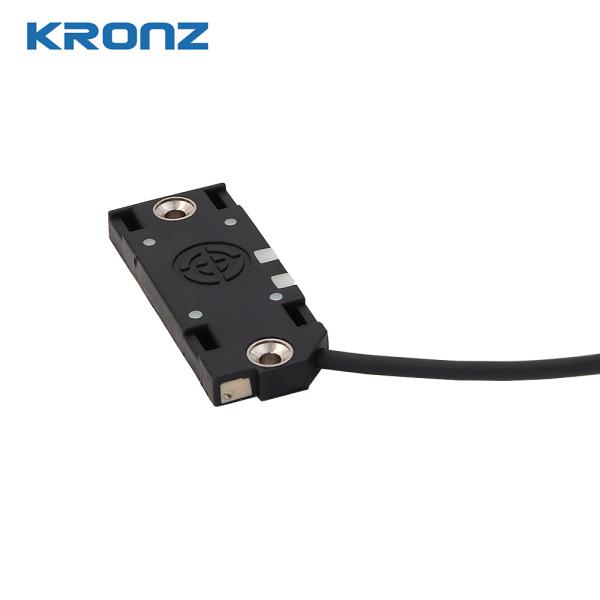

IP65 Capacitive Sensors Cubic NPN NC 10 - 30VDC Non Flush 10mm Sensing
IP65 Capacitive Sensors Cubic NPN NC 10 - 30VDC Non Flush 10mm Sensing
IP65 Capacitive Sensors Cubic NPN NC 10 - 30VDC Non Flush 10mm Sensing
IP65 Capacitive Sensors Cubic NPN NC 10 - 30VDC Non Flush 10mm Sensing
Specifications
Brand Name :
KRONZ
Model Number :
CN10-Q20NC-P0C2/D
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
10 pieces
Price :
Negotiable
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Polybag packing
Decription :
Capacitive Sensors
Sensing Range :
10mm (non flush)
Cunstruction Size :
50.5 x 20 x 5.5mm
Shell :
ABS
Switching Frequency :
100Hz
IP Rating :
IP65
Description

What size are capacitive sensors? Capacitive sensors are available in a variety of standard sizes to suit different installation requirements and application environments. Common sizes include M8, M12, M18, M30, and M32, which refer to the diameter of the sensor housing in millimeters. These sizes are widely used in industrial automation, packaging, material handling, and process control applications. They provide flexible mounting options and allow for easy integration into existing systems.

Features:

■ Sensing range Sn: 10mm (non-flush)
■ Output function: NPN,N.C
■ Supply voltage: 10-30VDC
■ Connection type: 2 meter cable
■ Housing material: ABS


Technical Data

Model NPN N.C
Custruction Size 10mm(non-flush)
Switching frequency 100Hz
Operating voltage 10~30VDC(±10%)
Voltage drop ≤2VDC
Operating current ≤200mA
No-load current ≤20mA(24V)
Hysteresis <15%(Sr)
Repeat accuracy <5.0%(Sr)
Protection Reverse-polarity protection,Power-up pulse protection
Indication Permanently on: Switching output active
Operating temperature -10...60°C
IP rating IP65
Housing material ABS
Sensing face material ABS
Connection Cable connection,2m PVC, 3*0.35mm²


Dimensional Drawing

IP65 Capacitive Sensors Cubic NPN NC 10 - 30VDC Non Flush 10mm Sensing
