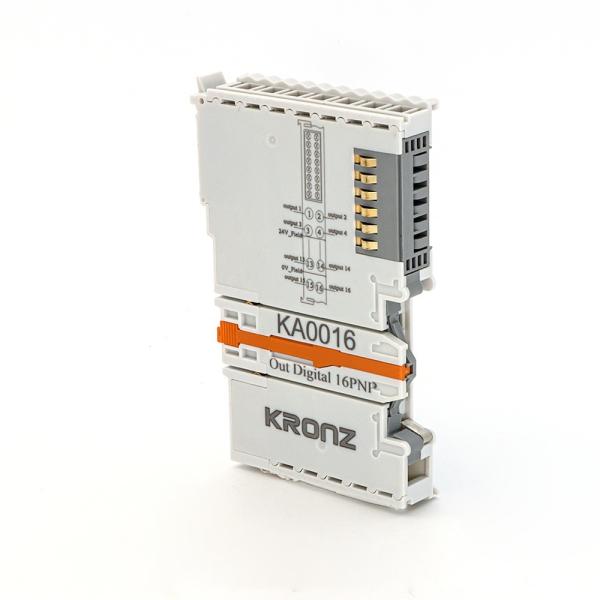

Remote I/O 16 Channels PNP Digital Output Module 24VDC 106mA IP20
Remote I/O 16 Channels PNP Digital Output Module 24VDC 106mA IP20
Remote I/O 16 Channels PNP Digital Output Module 24VDC 106mA IP20
Remote I/O 16 Channels PNP Digital Output Module 24VDC 106mA IP20
Specifications
Model Number :
KA0016
MOQ :
5 pieces
Price :
Negotiable
Brand Name :
KRONZ
Certification :
CE
Place of Origin :
Guangzhou,China
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Paper box packing
Type :
Digital Input Module
Application :
Industrial Ethernet Bus
Product name :
16 channels digital output module
Current consumption :
106mA
Input voltage :
24V DC
Output channels :
16
Output single type :
PNP
Output rated voltage :
24 V DC(±20%)
Description

Remote I/O Module16 Channels Digital Output Module PNP 24VDC 106mA IP20

This 16-channel PNP (sourcing) digital output module provides high-density switching for industrial control applications. Designed for 24VDC systems with 106mA per channel, it integrates seamlessly with PLCs, HMIs, and SCADA systems via industrial communication protocols. The IP20-rated enclosure ensures reliable operation in control cabinets.


Features:

  • 16 PNP (Sourcing) Digital Outputs

    • Output Type: High-side switching (24VDC, +V switching).

    • Current Rating: 106mA per channel (1.7A total module limit).

    • Load Voltage: 24VDC nominal (operating range: 18-30VDC).

  • Industrial Communication & Control

    • Protocol Support: Modbus RTU, Modbus TCP, PROFINET, EtherCAT, or Ethernet/IP (varies by model).

    • Remote Configuration & Monitoring via PLC/SCADA systems.

  • Robust & Compact Design

    • DIN Rail Mounting (35mm standard).

    • IP20 Protection – Basic dust resistance (for indoor/panel use).

    • LED Status Indicators (per channel + system diagnostics).

  • Protection & Safety

    • Short-Circuit & Overload Protection (auto-reset or latching option).

    • Reverse Polarity Protection on power supply.

    • Galvanic Isolation (500V channel-to-bus).


Model No. KA0016
Product Name 16 channels digital output module
Power Specification
Current Consumption 106mA
Input Voltage 24VDC
Allowed Range 24VDC(±25%)
Output characteristics
Number of output channels 16
Output single type PNP
Output rated voltage 24VDC(±20%)
Drive capability Single channel 500mA
Load type Resistive load, inductive load, lamp load
Isolation and withstand voltage 500V
Isolation method Optocoupler isolation
Physical Property
Dimension 100mmx69.65mmx12mm
Operation Temperature 0~55℃
Storage Temperature -25~85℃
Protection Grade IP20
