Specifications
Place of Origin :
China
Brand Name :
Senova
Certification :
CE
MOQ :
1 unit
Price :
Available upon request
Packaging Details :
Carton with pallet
Delivery Time :
Approx. 10 working days
Payment Terms :
T/T
Supply Ability :
500 units/month
Model Number :
NovaBath YWT-12B
Description

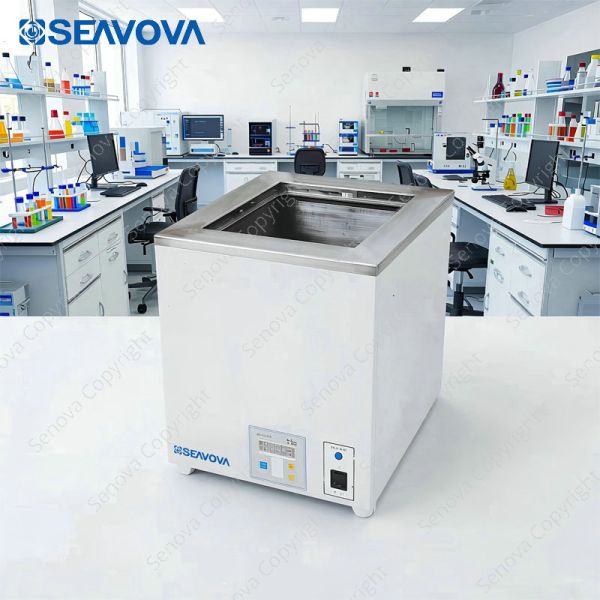

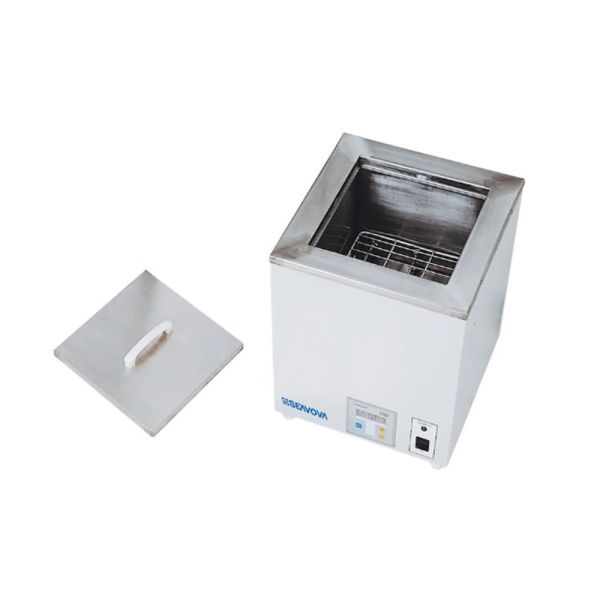

Oil bath NovaBath YWT-12B

Features

  • Durable stainless steel chamber and lid provide a clean, robust work environment.
  • High-speed CPU chip manages precise thermal regulation and process automation.
  • Relies on a high-sensitivity Pt sensor for consistent and stable temperature feedback.
  • Supports extended automated workflows with a 99-hour programmable control suite.
  • Configurable alarms protect processes from sensor, deviation, and over-temperature events.
  • Non-volatile memory retains critical operational parameters after power cycles.
  • User-accessible temperature display calibration ensures ongoing measurement integrity.
  • Continuous self-diagnostic operation enhances operational safety and uptime.
  • Facilitates research and testing with dependable, hands-off thermal management.
  • Delivers operational confidence through a combination of precision, safety, and automation.

Specifications

Model
NovaBath YWT-12B
Chamber Volume(L) 12.5
Temp. Control Range 50℃~300℃
Temperature Resolution 0.1℃(≤100℃);1℃(>100℃)
Fluctuation ±1℃
Uniformity ±2℃ at 100℃
Controller PID microprocessor control, soft touch, LED display
Sensor PT100
Timer Power-on, power off and working. Timing range: 1min-99hr
Material Internal 304 stainless steel
External 08F
Dimensions (WxDxH,mm) Internal 250*250*200
External 350*350*380
Net weight(Kg) 14
Consumption Power (W) 800
Power 220V/50Hz (Optional: 220V/60Hz, 110V/60Hz)

Introduction about water bath

A laboratory water bath is an indispensable instrument designed to provide gentle, uniform, and stable heating via temperature-controlled water. This method is superior to direct flame or oven heating, as water's excellent thermal conductivity ensures samples are not thermally shocked.

At its core, an electric heating element warms the water, and natural convection or assisted circulation distributes this heat evenly. This principle is fundamental for handling sensitive biological specimens like enzymes, proteins, or cell cultures, where precise thermal stability is non-negotiable. By maintaining a consistent aquatic environment, these baths facilitate a wide array of scientific procedures, from simple warming to complex incubations, ensuring experimental reproducibility and material integrity across chemistry, biology, and medical labs.
