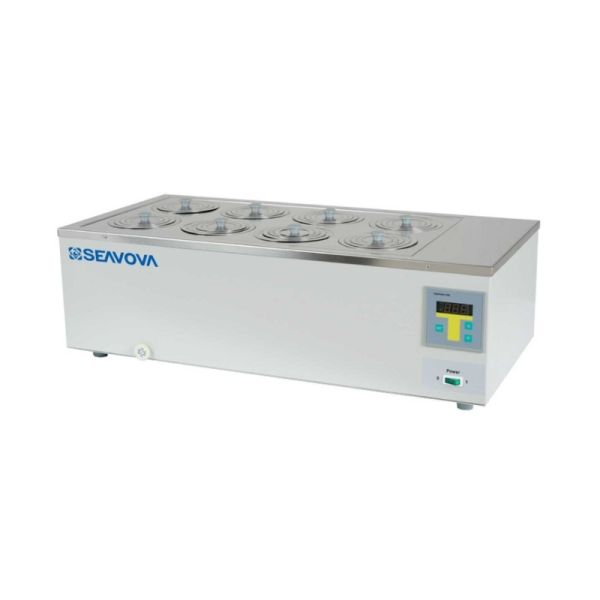

| Model | NovaBath AWT24 | |
| Chamber volume(L) | 16 | |
| Temp. Control Range | RT+5℃~ 100℃ | |
| Temp. | Resolution | 0.1℃ |
| Fluctuation | ± 0.3℃ | |
| Uniformity | ± 0.5℃ | |
| Controller | PID microprocessor control, soft touch, LED display | |
| Sensor | PT100 | |
| Timer | Power-on, power off and working. Timing range: 1min-99hr | |
| Material | Internal | 304 stainless steels |
| External | 08F | |
| Size | Internal (mm) | 300*300x170 |
| External (WxDxH,mm) | 440*340x220 | |
| Net Weight(Kg) | 11 | |
| Consumption Power(W) | 1000 | |
| Power Supply | 220V/50Hz (Optional: 220V/60Hz, 110V/60Hz) | |
Modern water bath designs emphasize energy efficiency and user safety. Features include insulated double-walled chambers to reduce heat loss, transparent covers to contain humidity and conserve energy, and low-water-level sensors that cut power to the heater to prevent damage.
Digital interfaces offer programmability for complex temperature ramps. These design improvements not only lower operating costs but also enhance temperature stability and safety, making them more reliable for unattended operation and demanding applications in pharmaceutical quality control.
