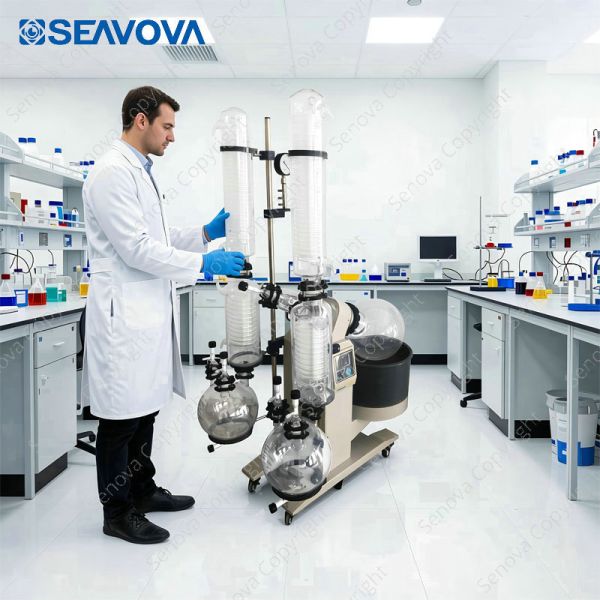

Electric Lifting 10L Rotary Evaporator Dual Set Up Rotary Vacuum Distiller
Electric Lifting 10L Rotary Evaporator Dual Set Up Rotary Vacuum Distiller
Specifications
Place of Origin :
China
Brand Name :
Senova
Certification :
CE
MOQ :
1 unit
Price :
Available upon request
Packaging Details :
plywood case
Delivery Time :
5-20 working days
Payment Terms :
T/T
Supply Ability :
100 units
Model Number :
NoVap-DC10
Recycling Bottle Volume :
10L
Product :
Rotary Evaporator
Lifting Mode :
Electric
Power :
220V/50Hz , 1 phase
Description
10L Dual Set-up Rotary Evaporator NoVap-DC10
Features
  • Features a next-generation condenser design with double the surface area for twice the recovery capacity.
  • Digital displays for real-time monitoring of rotation speed and heating bath temperature.
  • New quick-release clamp mechanism simplifies evaporation flask changes.
  • Complete package includes an auto-lift heating bath and a vertical glassware set.
  • Ambidextrous, single-hand operation design for precise control.
  • Key-lock function prevents unauthorized temperature adjustments.
  • Adjustable immersion angle optimizes heat transfer for different solvents.
  • Speed range from 20 to 200 rpm ensures versatile application coverage.
Technical Data
Model NoVap-DC10
Optimal Ambient Temperature 5～35(℃)
Power Supply 220V/50Hz , 1 phase
Speed Setting Digital display DC stepless speed regulation
Motor Stirring Speed 20～130 rpm
Rotating Motor Brushless motor 250W
Temp. Control Range Digital display ,RT -99(℃)
Max Volume 399.9 Pa(below 3mmHg)
Boiling Flask 10L Flange mouth ?125
Collect Flask 5L*2
Condenser Vertical, dual main condenser and sub condenser , high-efficiency three-layer reflux condenser tube
Condensation Area Main Condenser 0.84㎡ Sub condenser 0.44㎡
Evaporation Capacity Water ≥5L/h alcohol≥9 L/h
Water Bath Pot Material Stainless Steel
Water Bath Size Φ350*220mm
Lifting Method Electric lift
Lifting Distance 0～160mm
Machine Power 3000W
Machine Size 920*550*1700mm
Introduction about evaporator

The operation of a rotary evaporator follows a logical, multi-stage process. It begins with the rotation of the evaporation flask, which contains the sample solution. This motion creates a thin, continuous film on the flask's interior walls. Simultaneously, a vacuum pump reduces the system's pressure.

The combination of this reduced pressure and gentle heating from the bath causes the solvent to boil and vaporize at a temperature significantly below its normal boiling point. This low-temperature evaporation is crucial for preserving heat-labile compounds. The solvent vapor then rises and enters the condenser. Here, a coolant circulates, chilling the vapor and causing it to liquefy. The resulting pure solvent is collected in a separate receiving flask, while the concentrated product remains in the rotating flask. This seamless process ensures efficient separation.
