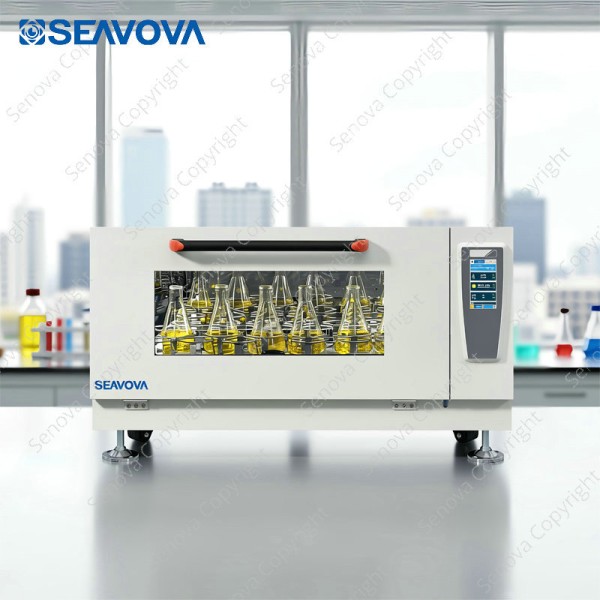

Refrigerated Orbital Laboratory Incubator Shaker / Shaking Incubator ST-208R

Main Feature

1. Maximized Lab Layout: Stackable floor-standing design (max. 3 high) dramatically increases capacity without consuming additional floor space.
2. Configurable Core Function: Choose between refrigerated and non-refrigerated models to precisely match application needs.
3. Expanded Capacity: Stacking capability allows for parallel experiments, significantly boosting laboratory throughput.
4. Clear Process Visibility: The large tempered glass window provides a clear view into all stacked units for at-a-glance status checks.

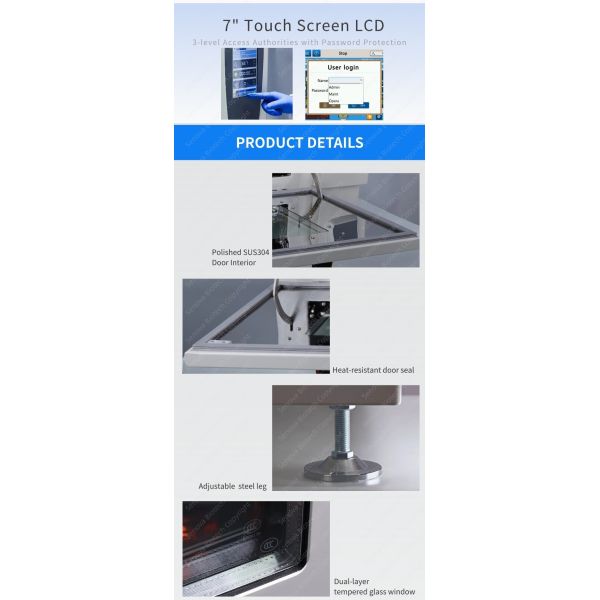

5. Unified Advanced Control: Each unit features the same 7" touch screen interface for consistent, easy operation across the stack.
6. Robust Shared Structure: The powder-coated steel exterior ensures each unit is durable enough for secure stacking.
7. Independent Programming: Advanced 30-segment programming allows each unit in a stack to run unique, complex protocols simultaneously.
8. Standardized Connectivity: Every unit includes USB and RS485 ports for streamlined data collection from multiple devices.
9. Consistent Performance: The single-shaft 5-dimensions drive and brushless motor ensure reliable, quiet operation in each unit.
10. Comprehensive Unit Safety: Each incubator maintains full independent safety systems, including alarms and automatic cut-offs.

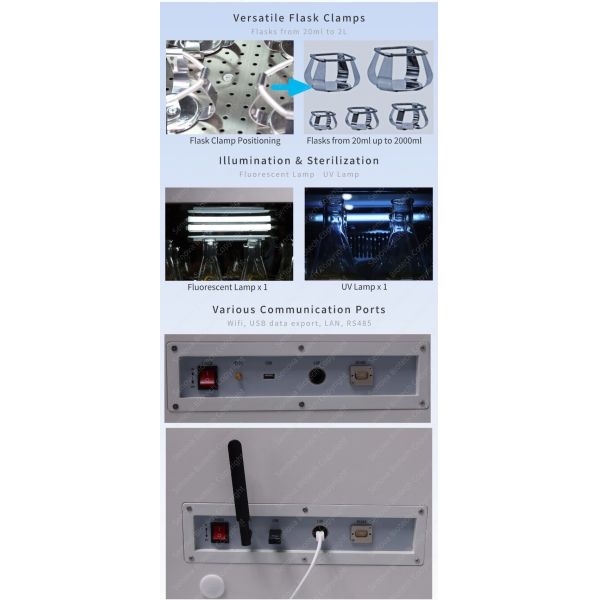

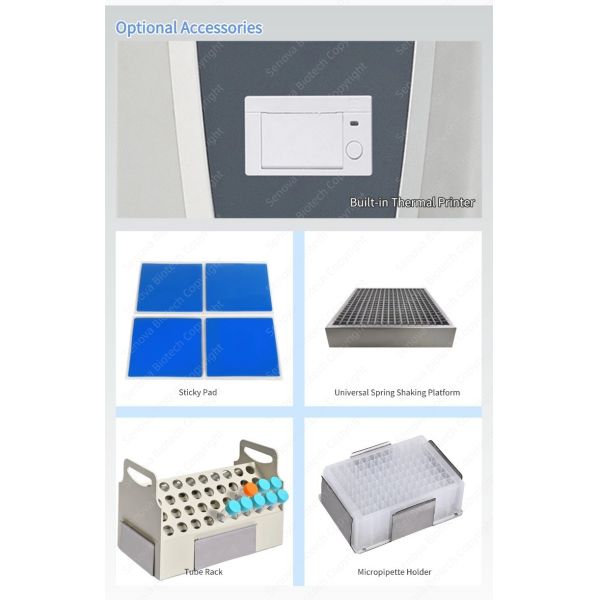

11. Flexible Accessory Setup: Standard and optional platforms (spring, sticky pad) and holders can be configured per unit in the stack.
12. Optional Environmental Control: Humidity control systems (for refrigerated models) can be added to individual units as needed.
13. Gentle Operation Preserved: Soft start function is maintained in each unit to protect samples, even in high-density setups.
14. Easy Parameter Management: Speed saving and parameter memory functions simplify replicating protocols across multiple units.
15. Durable Illuminated Chamber: The stainless steel chamber with lighting ensures visibility and cleanliness in every unit.

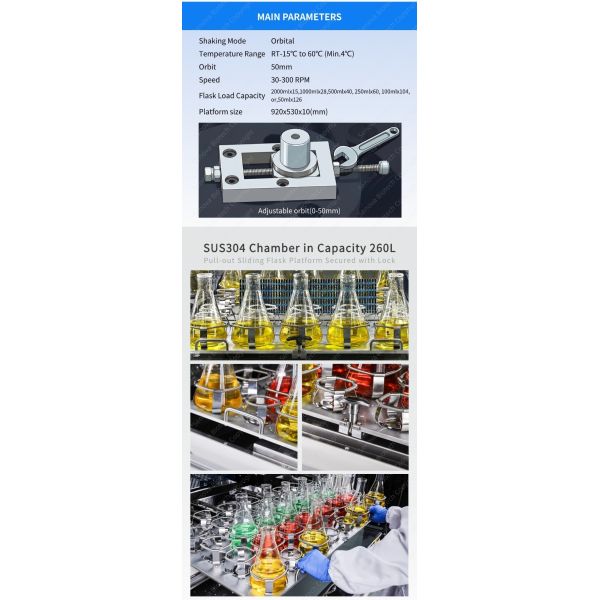

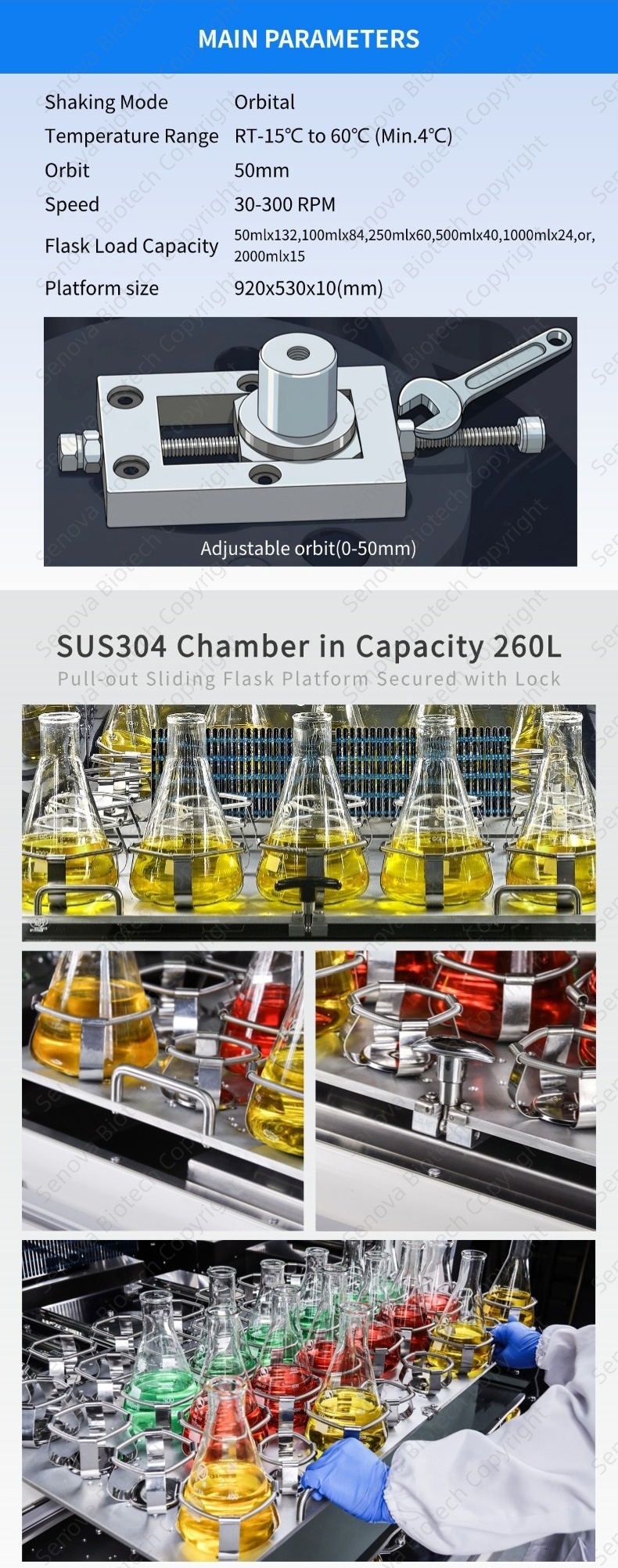

Technical Data

Introduction about laboratory shaker

Serving as core device for liquid processing, laboratory shaker provides consistent agitation (benchtop/free-standing). Moves containers in orbital/linear paths to achieve mixing, promote gas exchange, maintain uniform suspensions—key for reproducibility.

Functionality rooted in standardized dynamic environment; mechanical replaces variable manual. Orbital is workhorse; rocking gentler alternative; incubator shakers provide integrated temp/agitation control. Modern features: programmable memory slots, computer connectivity for protocol management/documentation.

Applications wide-ranging: aerobic microorganism cultivation in bioprocessing, studying medicine dissolution profiles in pharmacology, membrane-based hybridization assays in molecular biology. Performance: consistent speed despite load, long-duration timer, reliable operation in fluctuating ambient temperature.
