| Control | P.I.D. |

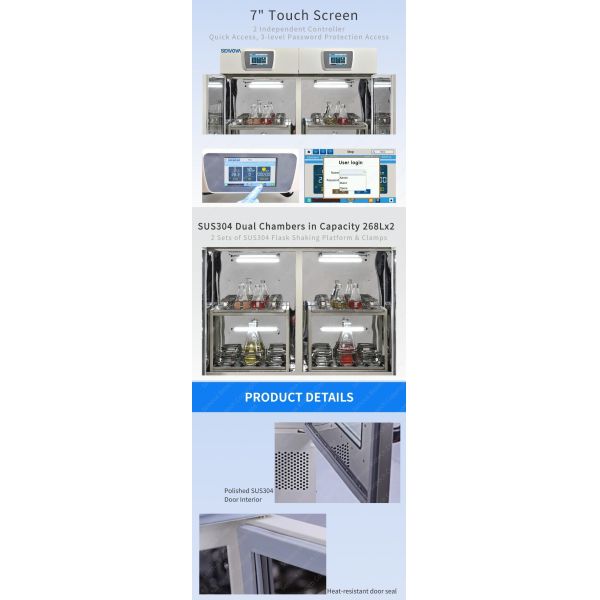

| Display | 7“ Touch Screen Colour LCD x 2 |
| Convection Mode | High Speed Forced Circulation |
| Shaking Mode | Orbital |
| Drive | Single-shaft balance device |
| Working Chamber | 2 Independent Chambers with 1 independent controller each |
| Chamber Material | SUS304 |
| Door | Double Doors |
| Environment Temp. | 15℃-25℃, RH20%-90% |
| Temp. Control Range | RT-15℃ to 60℃ (Min.4℃) |
| Temp. Resolution | 0.1℃ |
| Temp. Control Accuracy | <±0.2℃ |
| Temp. Uniformity | <±1℃ (at 37℃) |
| Speed Range | 30-300rpm |
| Speed Accuracy | ±1rpm |
| Programing | Repeating, Increment and 8 segment curve setting |
| Orbit | Φ25mm |
| Refrigerant | R134a |
| Timing Range | 0-999.59 Hr/Continuous |
| Platform Size (mm) | 498x460 |
| Platform Qty. | 2x dual-deck flask platforms |
| *Max. Flask Capacity | 250mlx80PCS, 500mlx64PCS, 1000mlx36PCS, or, 2000mlx24PCS |
| Chamber Dimensions | 607x506x875(WxDxH,mm) |
| Overall Dimensions | 1350x645x1620(WxDxH,mm) |
| Packing Size(LxWxH,cm) | 140x70x172 |
| Chanber Capacity | 268Lx2 |

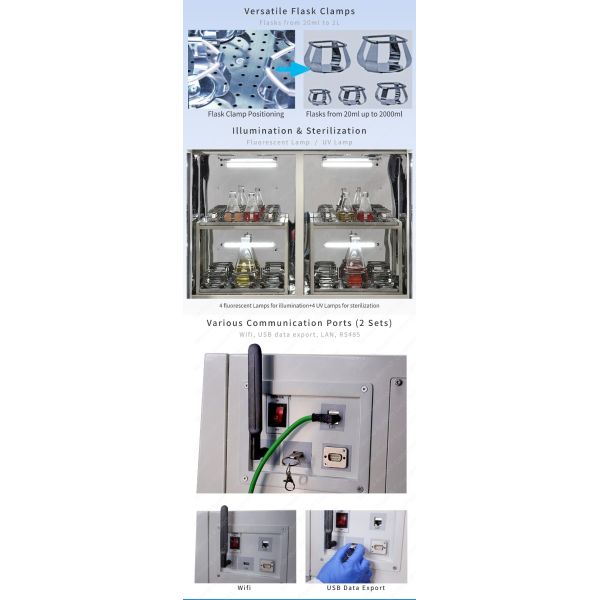

| Standard Accessory | 4xfluorescent lamps, 4xUV lamps, 4 Shaking platform with flask clamps |
| Net Weight (Kg) | 480 |
| Power (W) | 2240 |
| Power Supply | AC 200-240V/50-60Hz. Optional: AC110V/60Hz |
| Chamber Material | Polished SUS304 Stainless Steel |
| Construction | Steel with powder coating |






A laboratory shaker is an automated instrument for agitating samples, available as benchtop or floor models. Its function is to create homogeneous mixtures by subjecting containers to continuous motion, ensuring even distribution of solutes, gases, and cells—fundamental for successful protocols in biotech, pharma, and diagnostics.
The concept is mechanization of mixing for consistency. Orbital motion is ideal for general mixing; linear for washing; rocking for gentle agitation. Advanced incubator shakers regulate temperature, CO2, and humidity with shaking, essential for biological incubations.
Applications: culturing microorganisms, mixing PCR components, facilitating chemical reactions. Features: bright digital displays, end-of-run indicators, corrosion-resistant construction. Adaptability and reliability make them indispensable for reproducible sample processing.
