CSF11 Mini Harmonic Reducer
CSF11 Mini Harmonic Reducer
CSF11 Mini Harmonic Reducer
CSF11 Mini Harmonic Reducer
CSF11 Mini Harmonic Reducer
CSF11 Mini Harmonic Reducer
Specifications
Backlash :
≤20 Arcsec
Place of Origin :
CHINA
Ratio :
30/50/80
Model Number :
CSF11
Max Allowable Input Speed :
10000rpm
Certification :
CE ROHS
Brand Name :
SENINTER
Description


The CSF Mini 11 is one of the smallest and lightest precision harmonic drives currently available on the market. It is specifically designed for low-torque (0.1–0.6 N·m range), ultra-high precision applications.

Its core value proposition is:

Achieving zero-backlash precision transmission within a space the size of a coin.

Typical applications for this space-sensitive, high-end equipment include:
Micro robot joints
Endoscope manipulation mechanisms
5-axis machine tool auxiliary axes
Precision optical adjustment stages

CSF11 Mini Harmonic Reducer

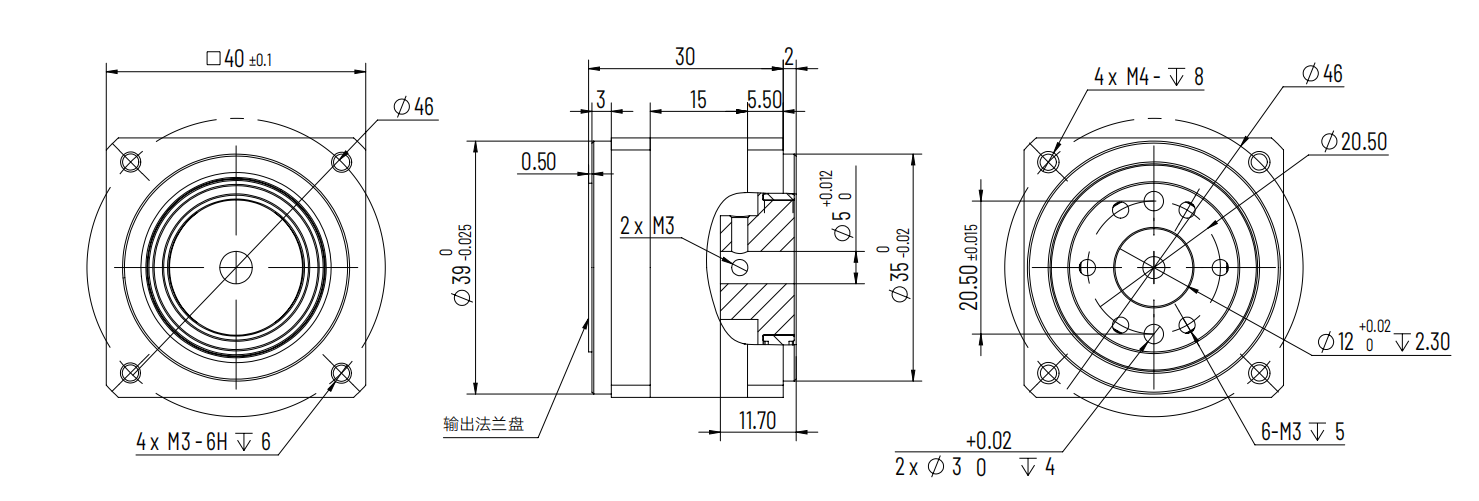

CSF Mini-11-2UP-Shaft Input, Flange Output Type

CSF11 Mini Harmonic Reducer

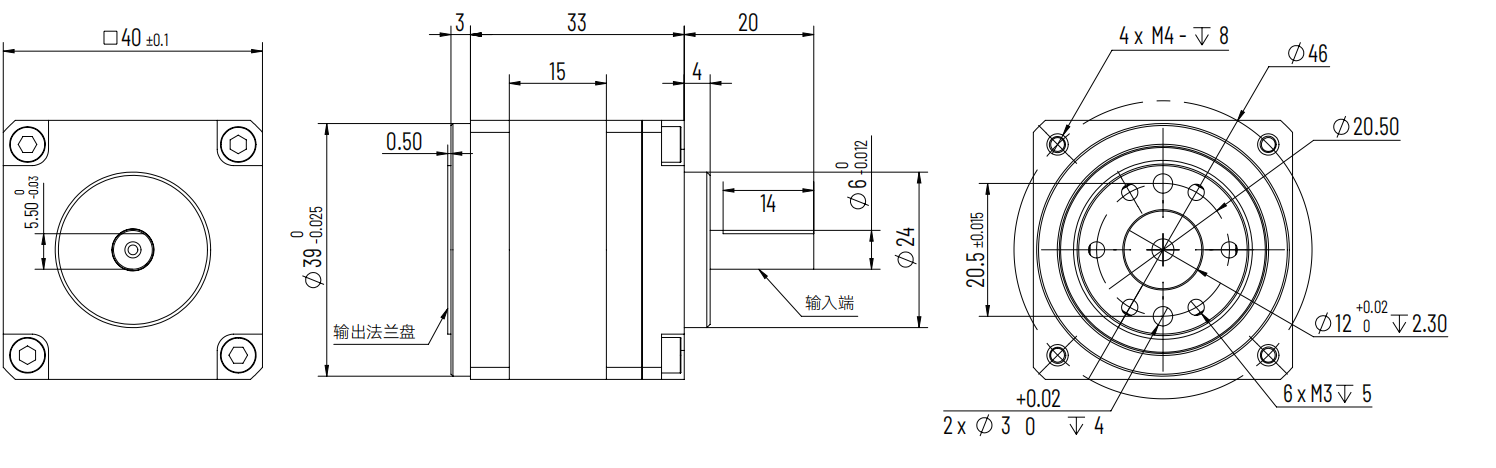

CSF Mini-11-1D-Motor Direct-Coupled Input, Flange Output Type

CSF11 Mini Harmonic Reducer

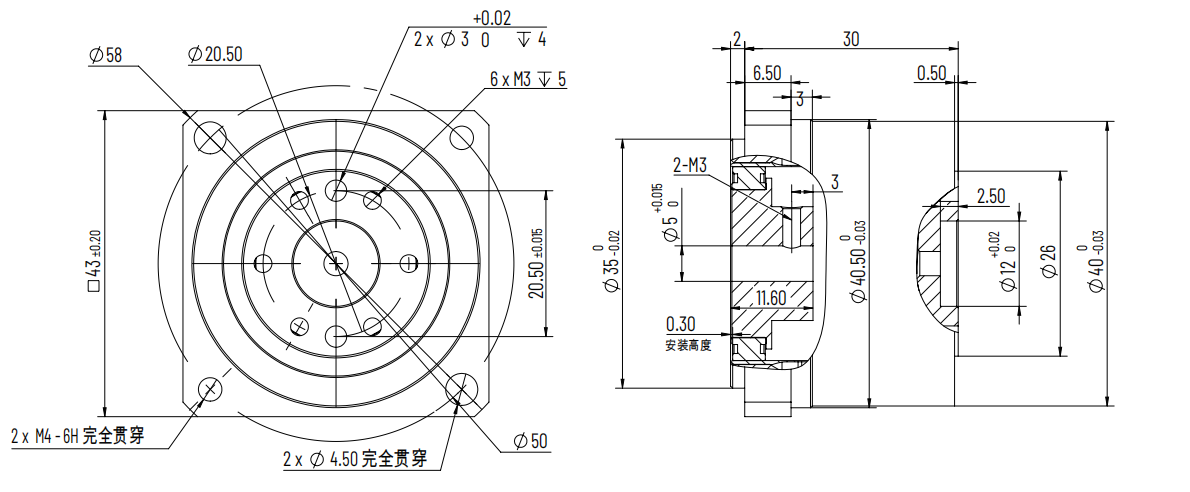

CSF Mini-11-1U-EInput Hole & Output Flange

CSF11 Mini Harmonic Reducer

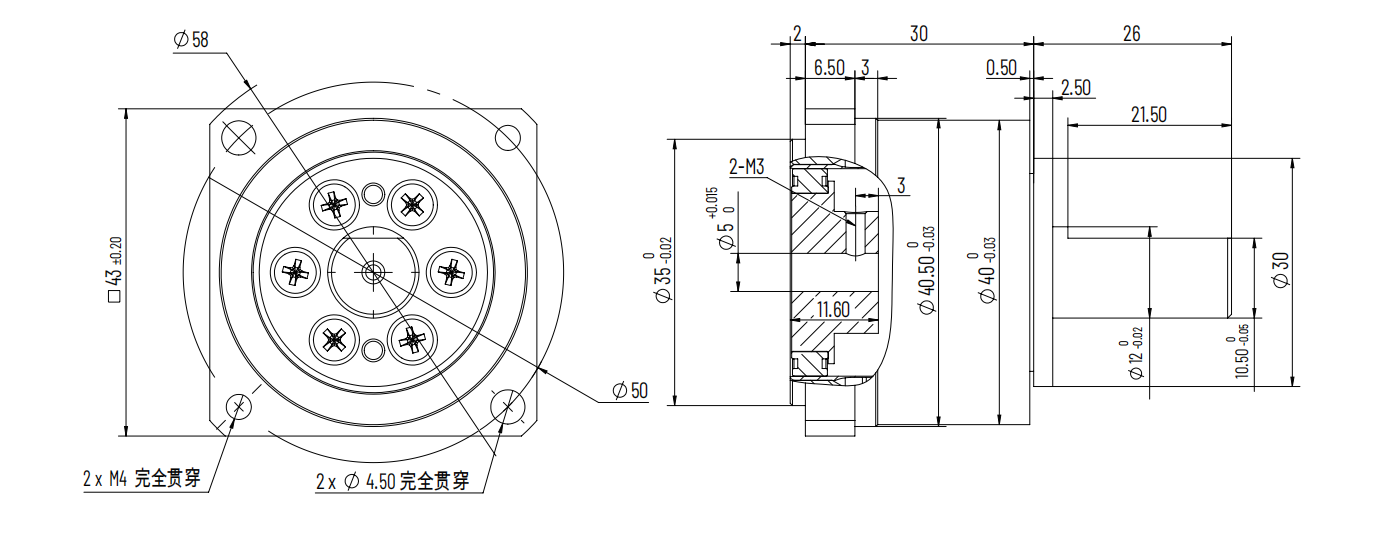

CSF Mini-11-1U-UInput Sharft & Output Sharft

CSF11 Mini Harmonic Reducer

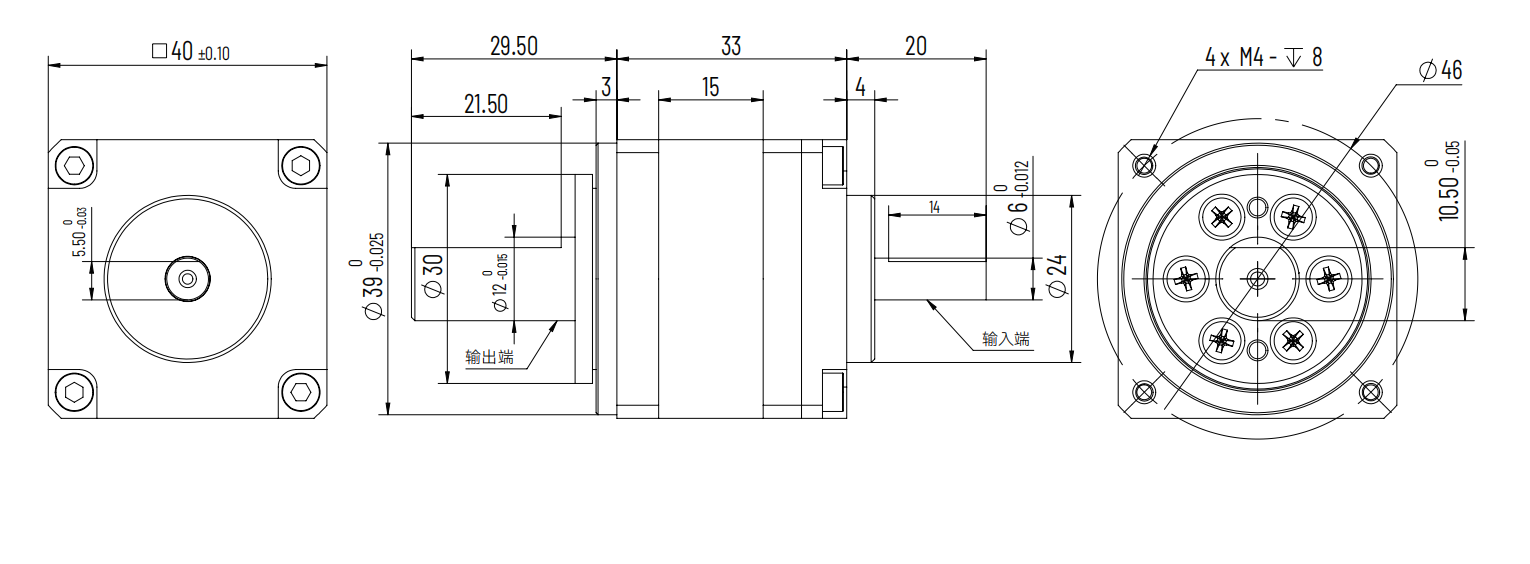

CSF Mini-11-2XH-AInput Hole & Output Flange

CSF11 Mini Harmonic Reducer

CSF Mini-11-2XH-BInput Hole & Output Sharft

CSF11 Mini Harmonic Reducer




CSF11 Mini Harmonic Reducer


CSF mini 8 Harmonic Reducer Parameter Table


Parameter Unit Reduction Ratio 30 Reduction Ratio 50 Reduction Ratio 100
Rated Torque at 2000 r/min N·m 0.9 1.8 2.4
Allowable Peak Torque (Start-Stop) N·m 1.8 3.3 4.8
Maximum Allowable Average Load Torque N·m 1.4 2.3 3.3
Maximum Instantaneous Allowable Torque N·m 3.3 6.6 9
Maximum Allowable Input Speed rpm 8500 8500 8500
Allowable Average Speed rpm 3500 3500 3500
Moment of Inertia ×10⁻⁴ kg·m² 3.2×10⁻³ 3.2×10⁻³ 3.2×10⁻³
Backlash Arcsec ≤20 ≤20 ≤20
