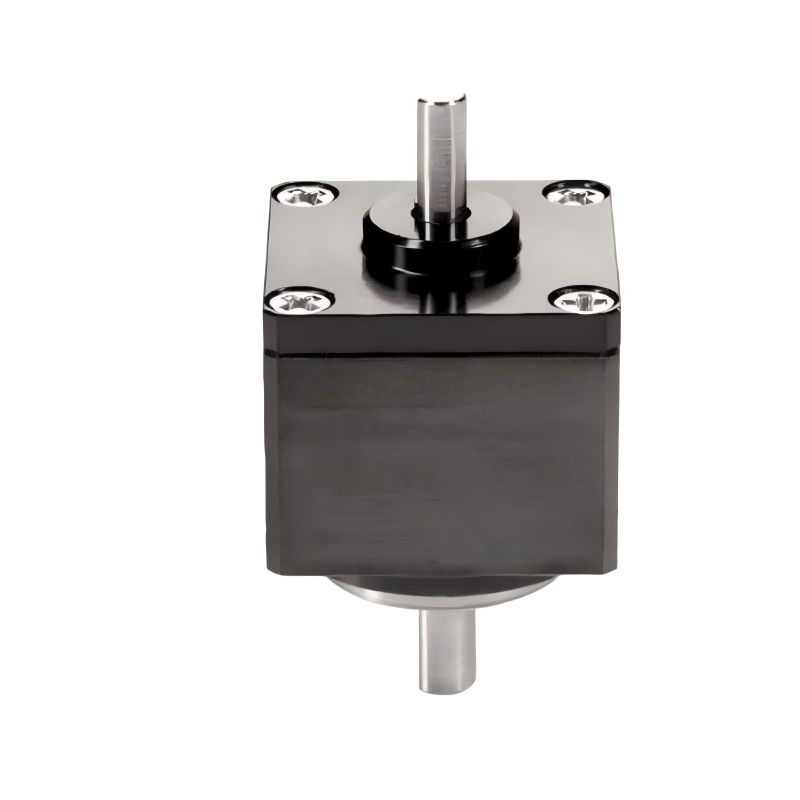

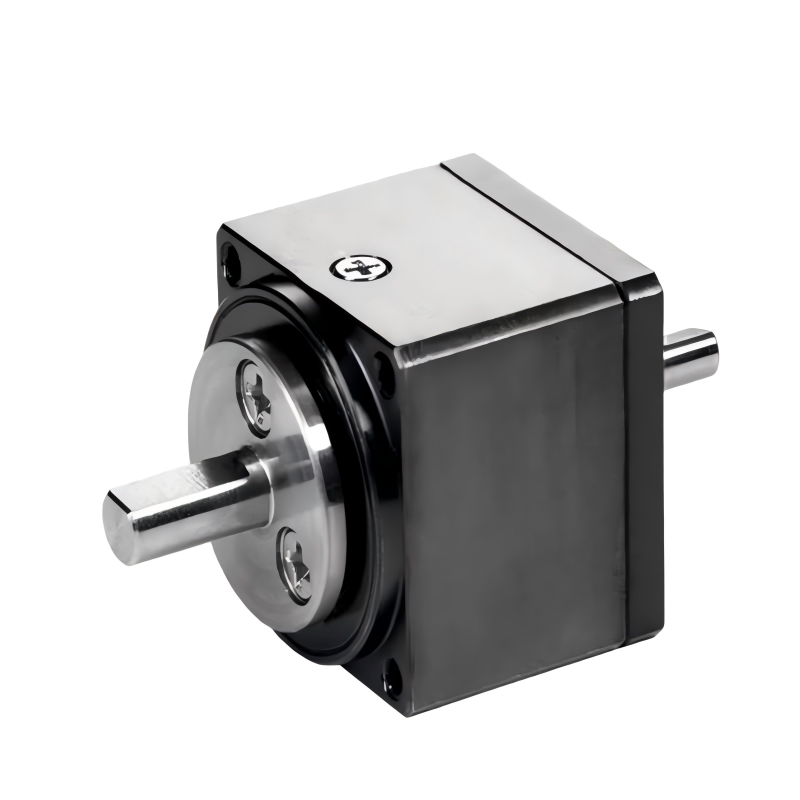

CSF5 Mini Harmonic Reducer
CSF5 Mini Harmonic Reducer
CSF5 Mini Harmonic Reducer
CSF5 Mini Harmonic Reducer
CSF5 Mini Harmonic Reducer
CSF5 Mini Harmonic Reducer
CSF5 Mini Harmonic Reducer
CSF5 Mini Harmonic Reducer
Specifications
Model Number :
CSF5
Certification :
CE ROHS
Brand Name :
SENINTER
Max Allowable Input Speed :
10000rpm
Place of Origin :
CHINA
Backlash :
≤20 Arcsec
Ratio :
30/50/80
Description



The CSF Mini 5 is one of the smallest and lightest precision harmonic drives currently available on the market. It is specifically designed for low-torque (0.1–0.6 N·m range), ultra-high precision applications.

Its core value proposition is:

Achieving zero-backlash precision transmission within a space the size of a coin.

Typical applications for this space-sensitive, high-end equipment include:
Micro robot joints
Endoscope manipulation mechanisms
5-axis machine tool auxiliary axes
Precision optical adjustment stages

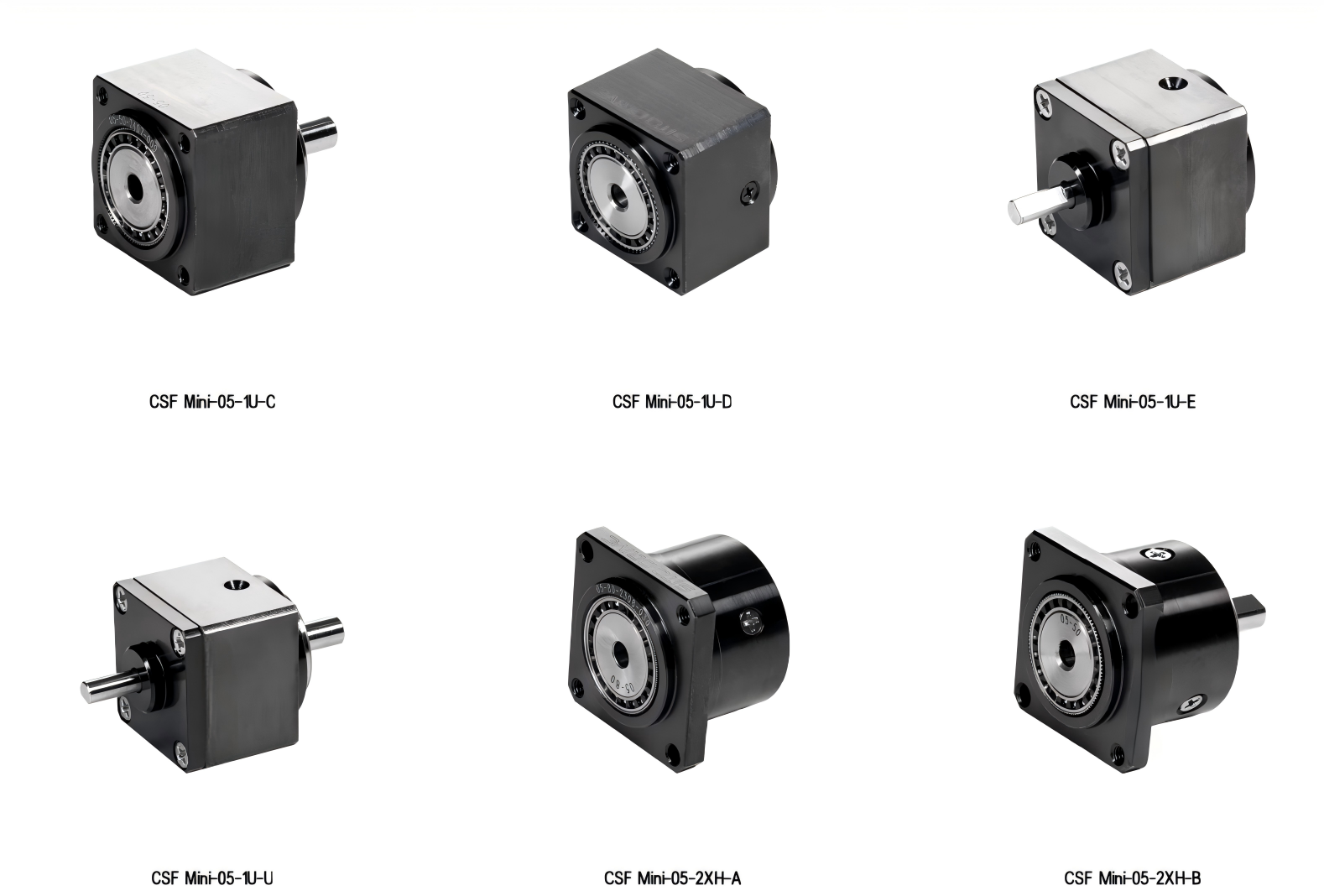

 CSF5 Mini Harmonic Reducer

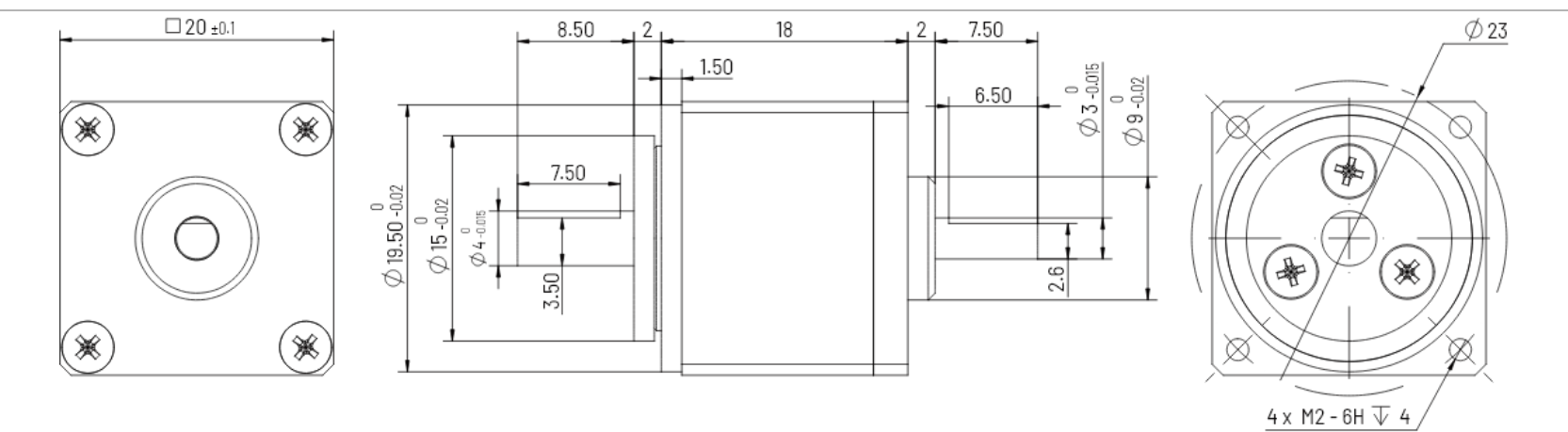

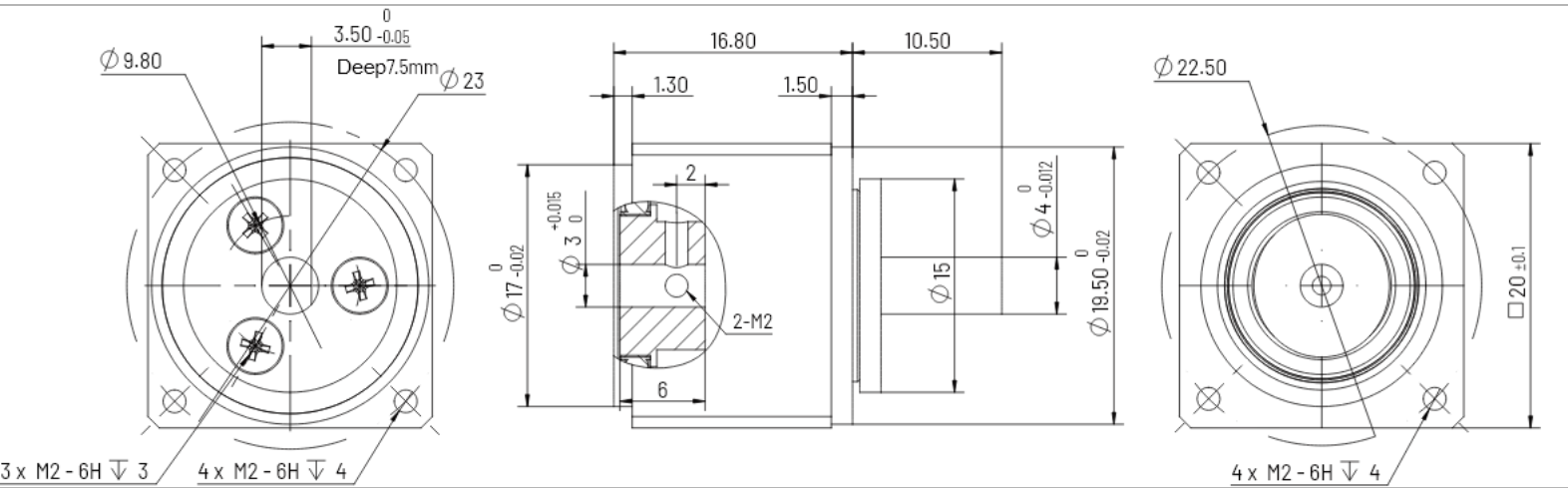

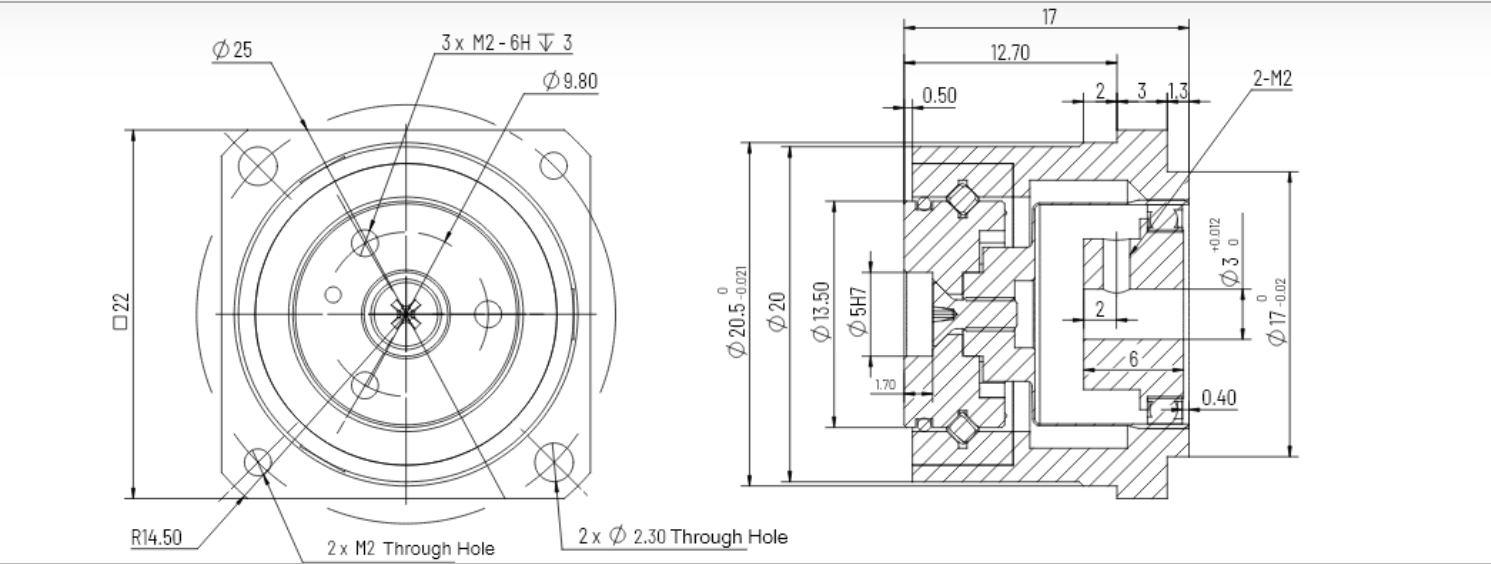

CSF Mini-05-1U-CInput Hole & Output Sharft

CSF5 Mini Harmonic Reducer

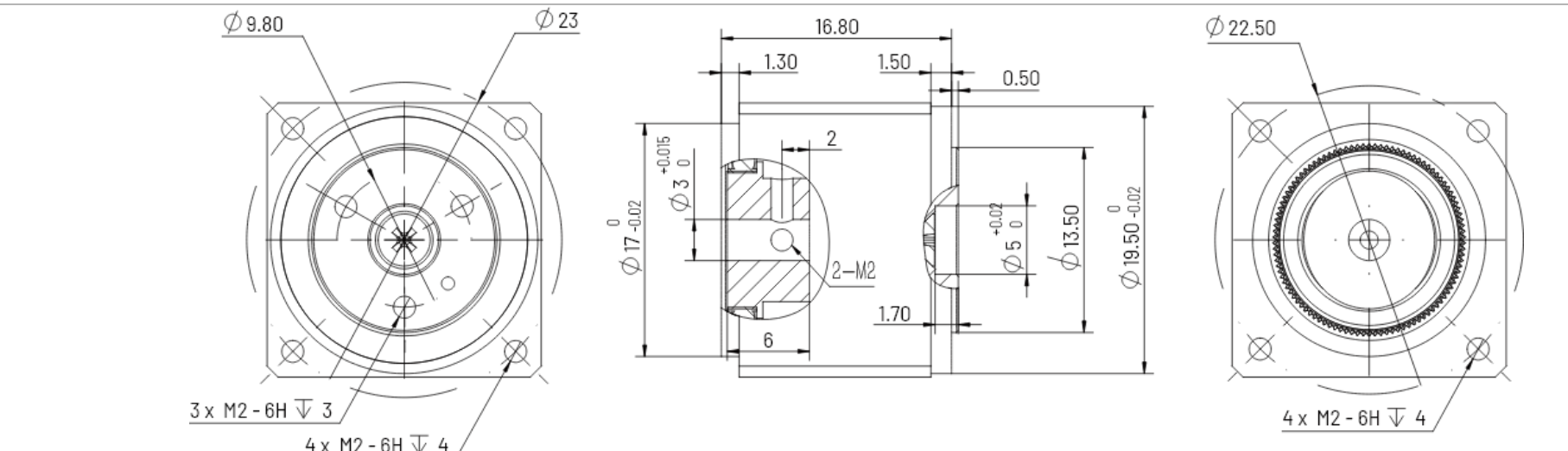

CSF Mini-05-1U-DInput Hole & Output Sharft

CSF5 Mini Harmonic Reducer

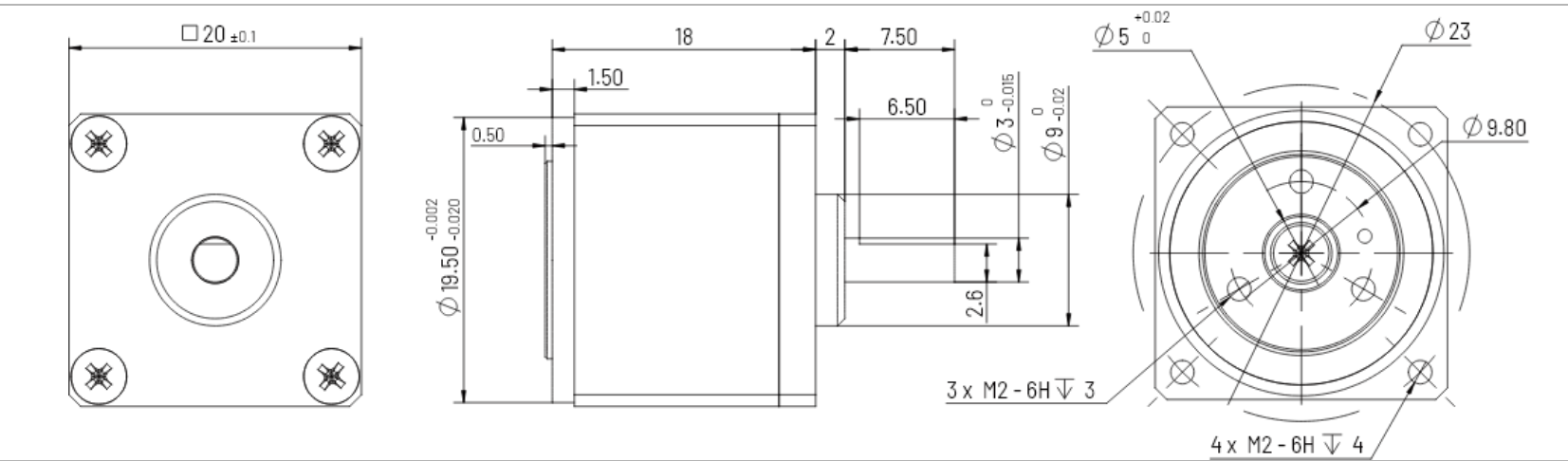

CSF Mini-05-1U-EInput Hole & Output Flange

CSF5 Mini Harmonic Reducer

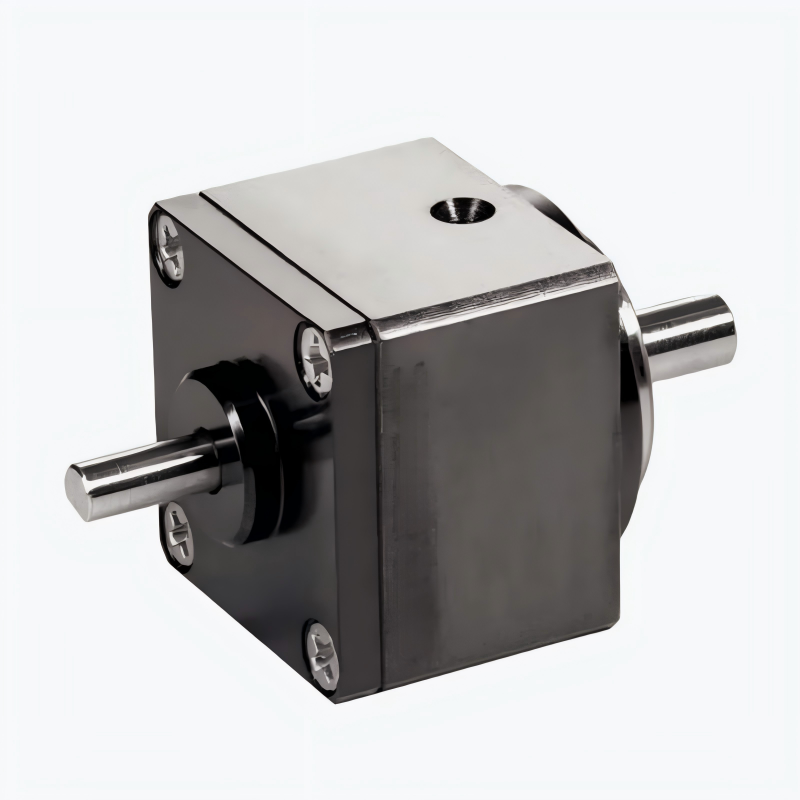

CSF Mini-05-1U-UInput Sharft & Output Sharft

CSF5 Mini Harmonic Reducer

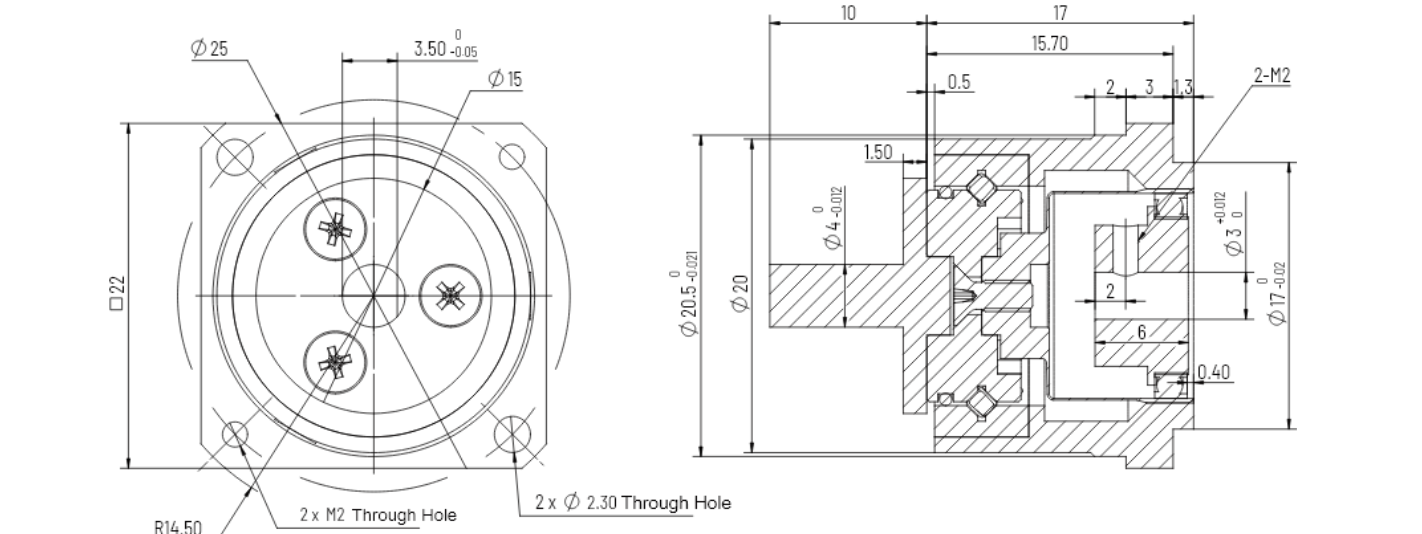

CS FMini-05-2XH-AInput Hole & Output Flange

CSF5 Mini Harmonic Reducer

CSF Mini-05-2XH-BInput Hole & Output Sharft

CSF5 Mini Harmonic Reducer



CSF5 Mini Harmonic Reducer


CSF mini 5 Harmonic Reducer Parameter Table


Parameter Unit Reduction Ratio 30 Reduction Ratio 50 Reduction Ratio 80
Rated Torque at 2000 r/min N·m 0.25 0.4 0.52
Allowable Peak Torque (Start-Stop) N·m 0.5 0.9 1.35
Maximum Allowable Average Load Torque N·m 0.38 0.53 0.84
Maximum Instantaneous Allowable Torque N·m 0.9 1.8 2.5
Maximum Allowable Input Speed rpm 10000 10000 10000
Allowable Average Speed rpm 6500 6500 6500
Moment of Inertia ×10⁻⁴ kg·m² 2.5×10⁻⁴ 2.5×10⁻⁴ 2.5×10⁻⁴
Backlash Arcsec ≤20 ≤20 ≤20
