SYT-RI-60-80
SYT-RI-60-80
SYT-RI-60-80
SYT-RI-60-80
SYT-RI-60-80
SYT-RI-60-80
Specifications
Protocol :
EtherCAT / CAN
Brand Name :
SENINTER
OD :
80mm
Model Number :
SYT-RI-60-80 CAN
Length :
70.4mm
Voltage :
24-48VDC
Weight :
1.01kg
Certification :
CE ROHS
Max. Torque :
66N·m
Place of Origin :
CHINA
Max. Speed :
82RPM
Description

Humanoid Robot Joint Module (Rotary Actuator) Structure – Core Components

Output Flange / Connector – Connects to robot links (e.g., lower leg, forearm), outputs torque and motion.

Torque Sensor (optional but common in high-performance designs) – Ring or spoke type, used for force control / collision detection.

Harmonic Drive – Consists of a wave generator, flexspline, and circular spline; mounted on the motor output shaft.

Frameless Torque Motor – Stator fixed to the housing, rotor connected to the wave generator.

Brake (Safety Holding Brake) – Locks the joint position when power is lost.

Dual Encoders – Motor-side encoder (measures speed/position) and output-side encoder (eliminates reducer backlash error); commonly used for full closed-loop control.

Driver (Servo Drive Board) – Integrated inside the module or in a compact package.

Housing / Cooling Structure – Aluminum alloy body with cable channels.

 SYT-RI-60-80

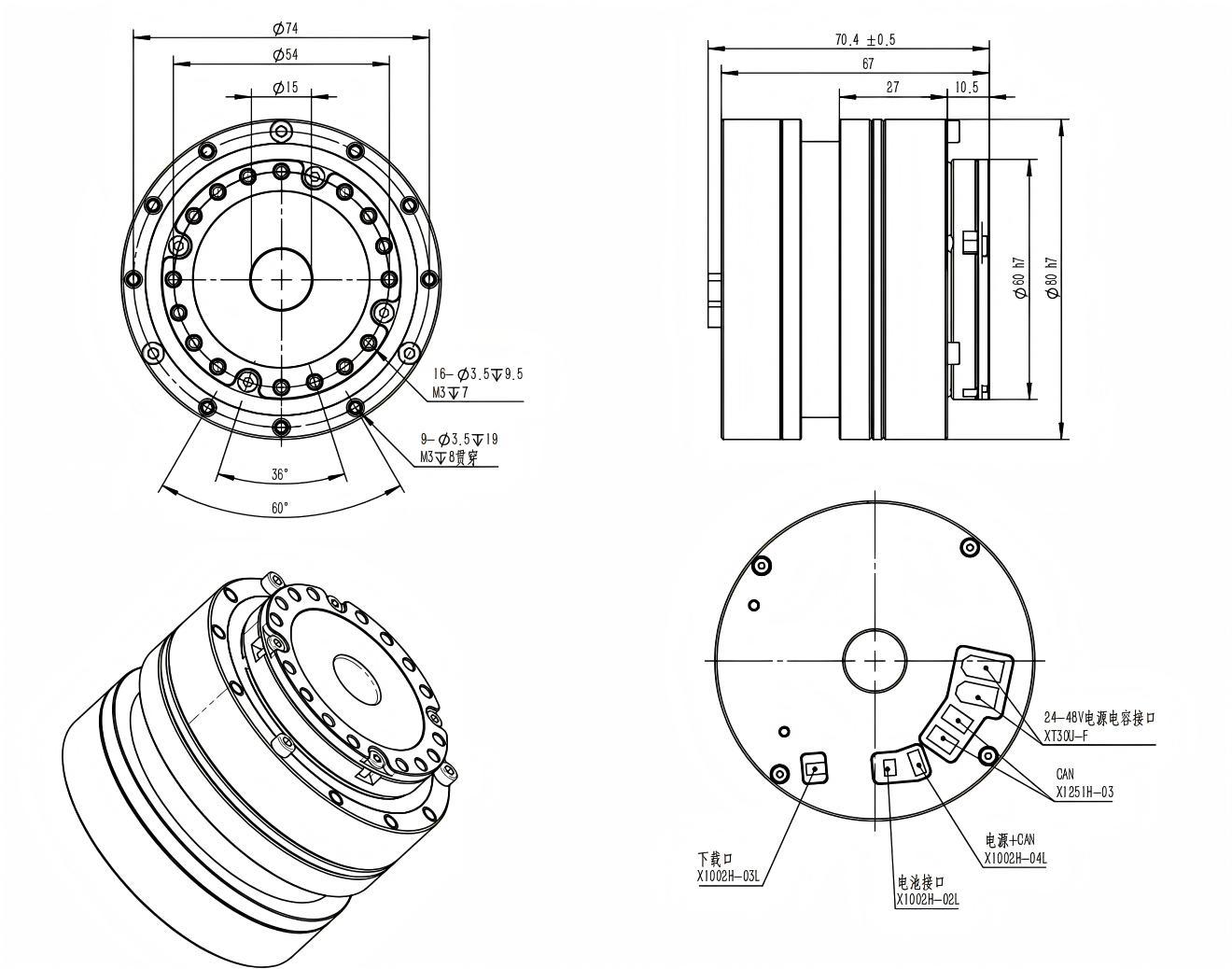

Drawing without brake

SYT-RI-60-80







without brake Parameter Table

Parameter Unit Ratio 51 Ratio 81 Ratio 101 Ratio 121
Gear Ratio - 51 81 101 121
Peak Torque N·m 42 53 66 66
Max Allowable Torque At Average Load (Robot Application) N·m 32 33 49 49
Rated Torque @ 2000RPM (Industrial Application) N·m 19.8 27.5 30 30
Peak Output Speed RPM 82 51 41 32
Rated Speed (With 1/2 Rated Torque) RPM 68 43 34 24
Gear Backlash arcsec 20 20 10 10
Rated Power W 300 300 300 300
Supply Voltage V 24–48 24–48 24–48 24–48
Max Continuous Current A 6.7 6.7 6.7 6.7
Rated Current A 5 5 5 5
Winding Resistance Ω 0.33 0.33 0.33 0.33
Encoder Resolution bit 17 17 17 17
Communication Bus - CAN/EtherCAT CAN/EtherCAT CAN/EtherCAT CAN/EtherCAT
Torque Constant N·m/A 0.096 0.096 0.096 0.096
Inductance mH 0.074 0.074 0.074 0.074
Number of Pole-pairs - 10 10 10 10
Hollow Shaft Diameter mm 15 15 15 15
Total Length mm 70.4±0.5 70.4±0.5 70.4±0.5 70.4±0.5
Mass kg 1.01 1.01 1.01 1.01
Rotational Inertia g·cm² 441 441 441 441

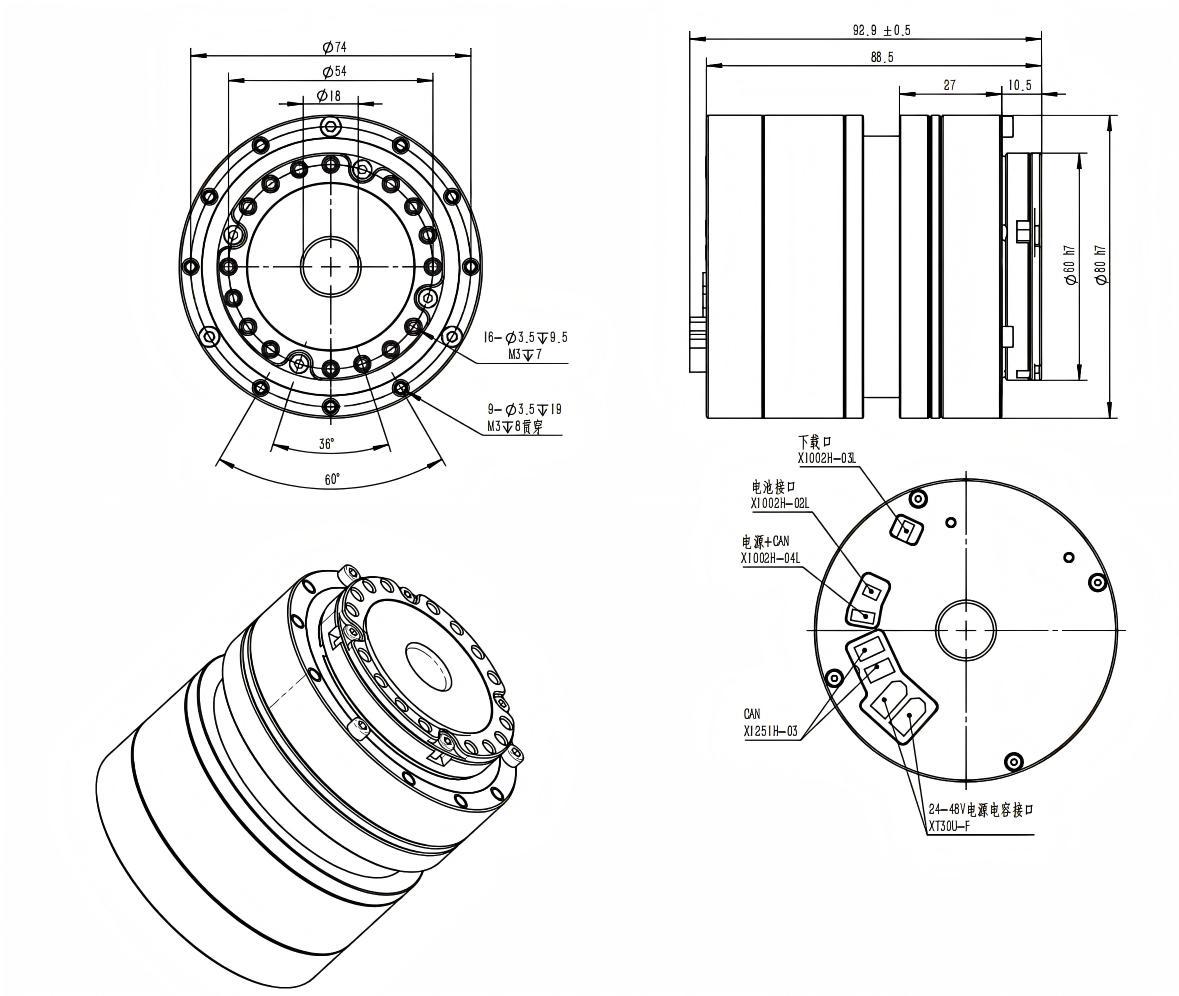

Drawing with brake



SYT-RI-60-80


With brake Parameter Table


Parameter Unit Ratio 51 Ratio 81 Ratio 101 Ratio 121
Gear Ratio - 51 81 101 121
Peak Torque N·m 42 53 66 66
Max Allowable Torque At Average Load (Robot Application) N·m 32 33 49 49
Rated Torque @ 2000RPM (Industrial Application) N·m 19.8 27.5 30 30
Peak Output Speed RPM 82 51 41 32
Rated Speed (With 1/2 Rated Torque) RPM 68 43 34 24
Gear Backlash arcsec 20 20 10 10
Rated Power W 300 300 300 300
Supply Voltage V 24–48 24–48 24–48 24–48
Max Continuous Current A 6.7 6.7 6.7 6.7
Rated Current A 5 5 5 5
Winding Resistance Ω 0.33 0.33 0.33 0.33
Encoder Resolution bit 17 17 17 17
Communication Bus - CAN/EtherCAT CAN/EtherCAT CAN/EtherCAT CAN/EtherCAT
Torque Constant N·m/A 0.096 0.096 0.096 0.096
Inductance mH 0.074 0.074 0.074 0.074
Number of Pole-pairs - 10 10 10 10
Hollow Shaft Diameter mm 18 18 18 18
Total Length mm 92.9±0.5 92.9±0.5 92.9±0.5 92.9±0.5
Mass kg 1.17 1.17 1.17 1.17
Rotational Inertia g·cm² 595 595 595 595
