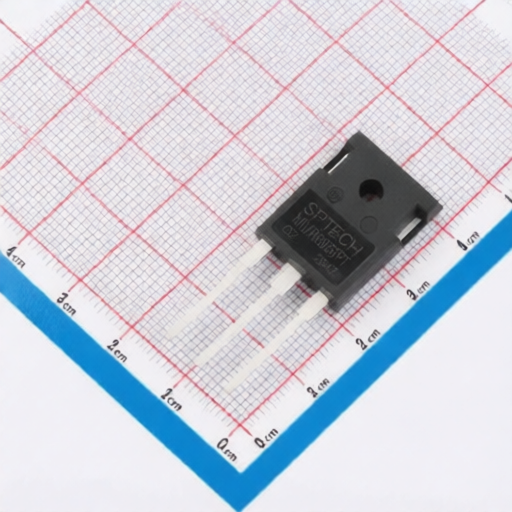

Ultrafast Recovery Diode SPTECH MUR6065PT Suitable for High Frequency Power Conditioning Applications
Ultrafast Recovery Diode SPTECH MUR6065PT Suitable for High Frequency Power Conditioning Applications
Specifications
Description :
TO-247 Single Diodes RoHS
Mfr. Part # :
MUR6065PT
Model Number :
MUR6065PT
Package :
TO-247
Description

Product Overview

The MUR6065PT is an ultrafast soft recovery FRED diode optimized for reduced losses and EMI/RFI in high-frequency power conditioning systems. Its soft recovery characteristic provides buffering in most applications, making it suitable for power converters and scenarios where switching losses are not a primary concern. Key advantages include ultrafast recovery, high operating junction temperature, high-frequency operation, low leakage current, and high surge capacity, all built upon an epitaxial chip construction.

Product Attributes

  • Brand: MUR (Implied from product number)
  • Origin: Not specified
  • Material: Not specified
  • Color: Not specified
  • Certifications: Not specified

Technical Specifications

ParameterSymbolTest ConditionsValuesUnits
Repetitive peak reverse voltageVRRM650V
Continuous forward currentIF(AV)TA=11075A
Single pulse forward currentIFSMTA=25680A
Maximum repetitive forward currentIFRMSquare wave, 20kHZ150A
Operating junction temperatureTj175
Storage temperaturesTstg-55 to +175
Breakdown voltage / Blocking voltageVBRVR IR=100A650V
Forward voltageVFIF=75 A2.00 - 2.75V
Forward voltageVFIF=75 A, Tj =1251.90 - 2.60V
Reverse leakage currentIRVR= VRRM50A
Reverse leakage currentIRTj=150, VR=650V500A
Reverse recovery timetrrIF=0.5A, IR=1A, IRR=0.25A80ns
Reverse recovery timetrrIF=1A,VR=30V, di/dt =200A/us32 - 45ns
Junction-to-Case thermal resistanceRthJC0.80/W
