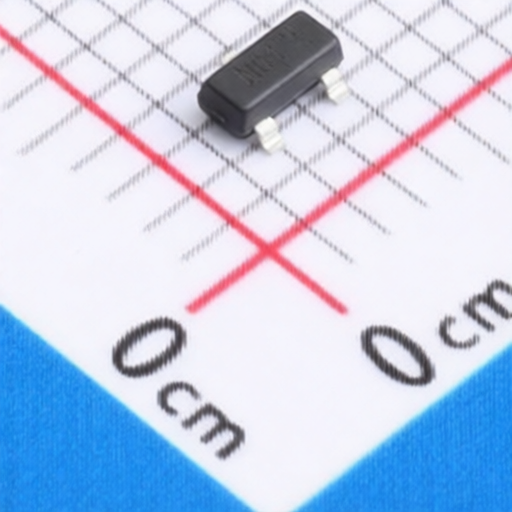

Lead Free NPN Transistor DIODES DDTC113TCA-7-F in SOT23 Package with Halogen and Antimony Free Design
Lead Free NPN Transistor DIODES DDTC113TCA-7-F in SOT23 Package with Halogen and Antimony Free Design
Specifications
Emitter-Base Voltage VEBO :
5V
Input Resistor :
1kΩ
Collector - Emitter Voltage VCEO :
50V
Description :
Pre-Biased Bipolar Transistor (BJT) 1 NPN Pre-Biased Transistor 50V 100mA 200mW Surface Mount SOT-23
Mfr. Part # :
DDTC113TCA-7-F
Model Number :
DDTC113TCA-7-F
Package :
SOT-23
Description

Product Overview

The DDTC(R1-ONLY SERIES) CA is an NPN pre-biased transistor in a SOT23 package. It features epitaxial planar die construction, built-in biasing resistors (R1 only), and complementary PNP types available (DDTA). This device is totally lead-free, fully RoHS compliant, and halogen and antimony free, making it a "Green" device. The DDTC143TCAQ variant is specifically designed for automotive applications, meeting AEC-Q101 qualification, PPAP capability, and manufactured in IATF 16949 certified facilities.

Product Attributes

  • Brand: Diodes Incorporated
  • Package: SOT23
  • Material: Molded Plastic, "Green" Molding Compound
  • Flammability Classification: UL 94V-0
  • Moisture Sensitivity: Level 1 per J-STD-020
  • Terminals: Matte Tin Plated Leads, Solderable per MIL-STD-202, Method 208
  • Certifications: AEC-Q101 qualified (DDTC143TCAQ), PPAP capable (DDTC143TCAQ), IATF 16949 certified facilities (DDTC143TCAQ)
  • Compliance: Totally Lead-Free & Fully RoHS Compliant, Halogen and Antimony Free. Green Device

Technical Specifications

Part NumberR1 (NOM)Collector-Emitter Breakdown Voltage (BVCEO) MinCollector Current (IC Max)Power Dissipation (PD)Collector-Emitter Saturation Voltage (VCE(sat)) MaxDC Current Transfer Ratio (hFE)Input Resistor (R1) Tolerance
DDTC113TCA1k50 V100 mA200 mW0.3 V100 - 600-
DDTC123TCA2.2k50 V100 mA200 mW0.3 V100 - 630-
DDTC143TCA4.7k50 V100 mA200 mW0.3 V100 - 630-
DDTC143TCAQ4.7k50 V100 mA200 mW0.3 V100 - 630-30% to +30%
DDTC114TCA10k50 V100 mA200 mW0.3 V100 - 630-
DDTC124TCA22k50 V100 mA200 mW0.3 V100 - 630-
DDTC144TCA47k50 V100 mA200 mW0.3 V100 - 630-
DDTC115TCA100k50 V100 mA200 mW0.3 V100 - 630-
DDTC125TCA200k50 V100 mA200 mW0.3 V100 - 630-

2308101558_DIODES-DDTC113TCA-7-F_C5245830.pdf
