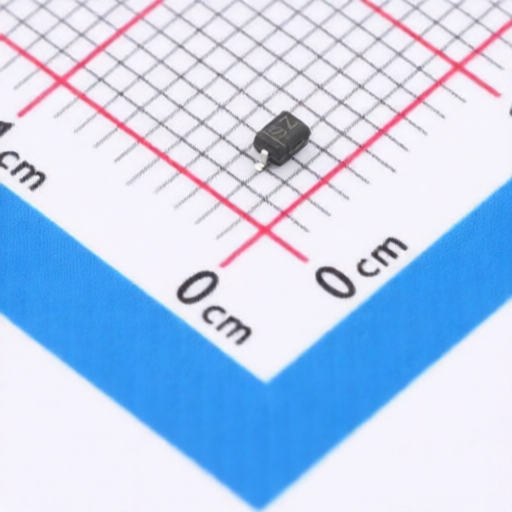

Low Forward Voltage Drop Schottky Barrier Diode JSCJ B1040WS Suitable for DC DC Conversion Circuits
Low Forward Voltage Drop Schottky Barrier Diode JSCJ B1040WS Suitable for DC DC Conversion Circuits
Specifications
Non-Repetitive Peak Forward Surge Current :
5A
Reverse Leakage Current (Ir) :
50uA@20V
Operating Junction Temperature Range :
-40℃~+125℃
Voltage - DC Reverse (Vr) (Max) :
40V
Diode Configuration :
Independent
Voltage - Forward(Vf@If) :
550mV@700mA
Current - Rectified :
1A
Description :
Diode Independent 40V 1A Surface Mount SOD-323
Mfr. Part # :
B1040WS
Model Number :
B1040WS
Package :
SOD-323
Description

Product Overview

This Schottky Barrier Diode is designed for low voltage rectification and high efficiency DC/DC conversion. Its very small SMD package makes it suitable for applications such as switch mode power supplies, inverse polarity protection, and other low power consumption scenarios. Key advantages include a low forward voltage drop.

Product Attributes

  • Brand: JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD
  • Marking: The marking bar indicates the cathode. Solid dot = Green molding compound device, if none, the normal device.
  • Package: SOD-323 Plastic-Encapsulate Diodes

Technical Specifications

ParameterSymbolTest ConditionsMinTypMaxUnit
Peak Repetitive Reverse VoltageVRRM40V
Working Peak Reverse VoltageVRWM40V
RMS Reverse VoltageVR(RMS)28V
Power DissipationPDTa=25250mW
Thermal Resistance Junction to AmbientRJA400/W
Operation Junction Temperature RangeTj-40+125
Storage Temperature RangeTstg-55+150
Reverse breakdown voltageV(BR)IR=1mA40V
Reverse currentIRVR=20V0.51uA
Forward voltageVFIF=0.51A0.55V
Total capacitanceCtotVR=10V,f=1MHz20pF
Average Rectified Output CurrentIO1A
Non-repetitive Peak Forward Surge CurrentIFSM@ t=8.3ms5A

2410121747_JSCJ-B1040WS_C77281.pdf
