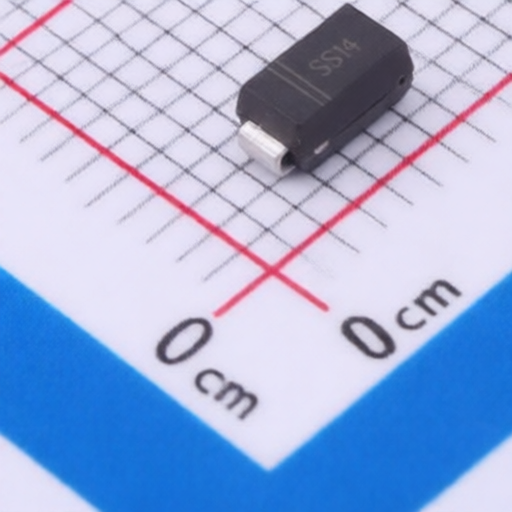

SMD Schottky Barrier Rectifiers Comchip SS14-HF for Low Voltage High Frequency Inverter Applications
SMD Schottky Barrier Rectifiers Comchip SS14-HF for Low Voltage High Frequency Inverter Applications
Specifications
Non-Repetitive Peak Forward Surge Current :
25A
Reverse Leakage Current (Ir) :
300uA@40V
Operating Junction Temperature Range :
-55℃~+125℃
Voltage - DC Reverse (Vr) (Max) :
40V
Voltage - Forward(Vf@If) :
550mV@1A
Current - Rectified :
1A
Description :
Diode 40V 1A Surface Mount SMA(DO-214AC)
Mfr. Part # :
SS14-HF
Model Number :
SS14-HF
Package :
SMA(DO-214AC)
Description

Product Overview

SMD Schottky Barrier Rectifiers designed for surface mounted applications. These rectifiers feature low power loss, high efficiency, and high forward surge current capability. They are ideal for use in low voltage, high frequency inverters, free wheeling, and polarity protection applications.

Product Attributes

  • Brand: Comchip Technology CO., LTD.
  • Certifications: RoHS Device, Halogen Free
  • Material: Metal silicon junction, majority carrier conduction
  • Case: SMA (DO-214AC)

Technical Specifications

ModelReverse Voltage (V)Forward Current (A)Max. Instantaneous Forward Voltage @ 1A (V)Max. DC Reverse Current @ Rated VR (A)Typical Junction Capacitance (pF)Operating Junction Temp (C)Storage Temp (C)
SS14401.00.5510 (at 25C) / 0.2 (at 100C)100-55 ~ +125-55 ~ +150
SS16601.00.5510 (at 25C) / 0.2 (at 100C)100-55 ~ +125-55 ~ +150
SS1101001.00.7010 (at 25C) / 0.2 (at 100C)100-55 ~ +125-55 ~ +150
SS1151501.00.8510 (at 25C) / 0.2 (at 100C)100-55 ~ +125-55 ~ +150
SS1202001.00.9010 (at 25C) / 0.2 (at 100C)100-55 ~ +125-55 ~ +150

Key Parameters

ParameterSymbolRatingUnit
Maximum Repetitive Peak Reverse VoltageVRRM40 to 200V
Maximum RMS VoltageVRMS28 to 140V
Maximum Average Forward Rectified CurrentIF(AV)1.0A
Peak Forward Surge Current (8.3ms single half sine-wave)IFSM20A
Typical Thermal Resistance (Junction to Ambient)RJA90C/W

2410121814_Comchip-SS14-HF_C5179706.pdf
