38mm Copper Coated Cup Head Stud Weld Pins For Insulation Ductwork
38mm Copper Coated Cup Head Stud Weld Pins For Insulation Ductwork
38mm Copper Coated Cup Head Stud Weld Pins For Insulation Ductwork
38mm Copper Coated Cup Head Stud Weld Pins For Insulation Ductwork
38mm Copper Coated Cup Head Stud Weld Pins For Insulation Ductwork
38mm Copper Coated Cup Head Stud Weld Pins For Insulation Ductwork
38mm Copper Coated Cup Head Stud Weld Pins For Insulation Ductwork
38mm Copper Coated Cup Head Stud Weld Pins For Insulation Ductwork
Specifications
Certification :
ISO9001
Place of Origin :
CHINA
Product name :
Cup Head Stud Weld Pins
material :
carbon steel is in common ,stainless steel to be request
base size :
30mm,25mm
base type :
with paper or without paper
Pin diameter :
2.mm,3mm,3.4mm
Pin material :
galvanized steel or copper coated
Pin length :
25mm,38mm,50mm,75mm,115mm is in common
other pin lenght :
120mm-210mm to be request
Brand Name :
huihao
Model Number :
Cup Head Stud Weld Pins
Delivery Time :
15 days after confirm the order
Packaging Details :
carton+wooden pallet
Description
38mm Copper Coated Cup Head Stud Weld Pins For Insulation Ductwork
Product Specifications
Attribute Value
Product name Cup Head Stud Weld Pins
Material Carbon steel (standard), stainless steel (available upon request)
Base size 30mm, 25mm
Base type With paper or without paper
Pin diameter 2mm, 3mm, 3.4mm
Pin material Galvanized steel or copper coated
Pin length 25mm, 38mm, 50mm, 75mm, 115mm (standard), 120mm-210mm (available upon request)
Product Overview

Cupped Head Weld Pins provide a permanent solution for installing duct liner and other insulation materials to HVAC sheet metal configurations. These fabricated components combine a weld pin with a staked-on retaining washer, available in various material options.

38mm Copper Coated Cup Head Stud Weld Pins For Insulation Ductwork
Detailed Specifications
Base Size Base Material Pin Diameter Pin Length Pin Material Finished
20MM Mild steel, stainless steel, copper 2.7MM, 3MM, 3.4MM 10MM, 25MM, 38MM Mild steel, stainless steel, copper Zinc/copper plating
25mm Mild steel, stainless steel, copper 3mm 10mm-65mm Mild steel, stainless steel, copper Zinc/copper plating
30mm Mild steel, stainless steel, copper 3.4mm 10mm-65mm Mild steel, stainless steel, copper Zinc/copper plating
Custom Custom Custom Custom

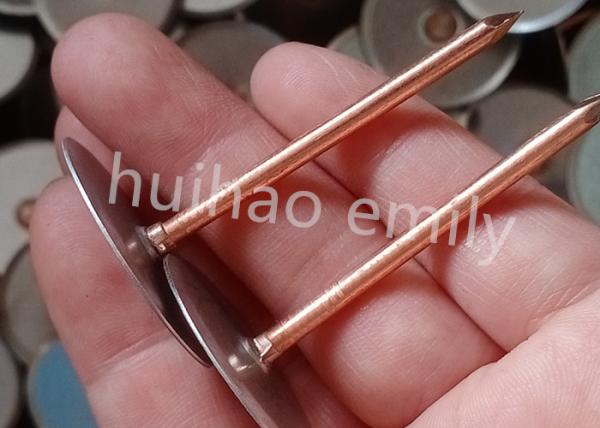

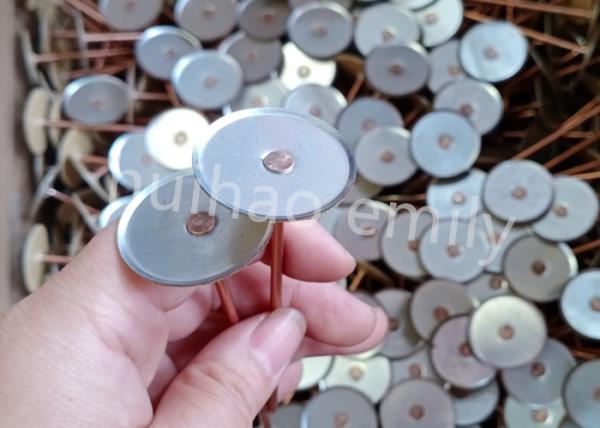

Product Images
38mm Copper Coated Cup Head Stud Weld Pins For Insulation Ductwork 38mm Copper Coated Cup Head Stud Weld Pins For Insulation Ductwork
Installation Guide

Recommended assembly method:

  • Work surfaces should be clean and dry, free of dust, grease, oil and any other loose matter
  • Remove the protective release paper taking care not to touch the adhesive
  • Place the hanger in the required position and press the base against the surface to be insulated
  • Insulation can be impaled immediately and firmly locked with fastening clips
  • Maximum strength of adherence is achieved after 24 hours
38mm Copper Coated Cup Head Stud Weld Pins For Insulation Ductwork

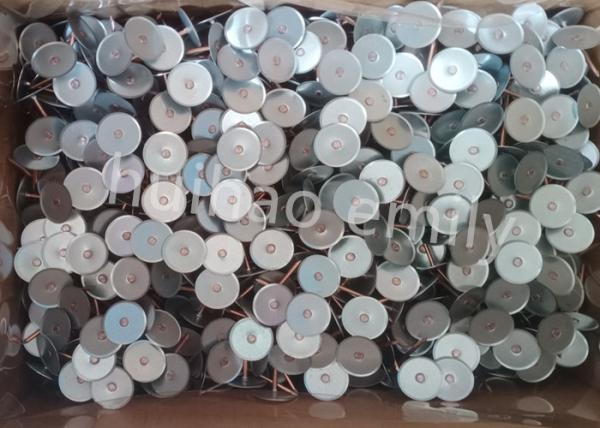

Packaging & Shipping

Standard packaging options:

  • 800/1000/1500/2000/3000/5000 pieces in carton on pallet
  • 800/1000/15000/2000 pieces in a drum on the pallet

Shipping methods:

  • Sea freight for large orders
  • Express shipping (DHL, FedEx, UPS) for small or urgent orders
  • Door-to-door service available by sea or air
38mm Copper Coated Cup Head Stud Weld Pins For Insulation Ductwork
Related Products

Our product range includes various insulation fasteners:

  • CD weld pins
  • Lacing anchors
  • Bimetallic pins
  • Quilting pins
  • Perforated base pins
  • Self adhesive pins
  • Solar panel mesh clips
  • Self locking washers
  • Dome caps
