1-3/16 Mini Cup Capacitor Discharge Cup Head Weld Pins For Hvac System
1-3/16 Mini Cup Capacitor Discharge Cup Head Weld Pins For Hvac System
1-3/16 Mini Cup Capacitor Discharge Cup Head Weld Pins For Hvac System
1-3/16 Mini Cup Capacitor Discharge Cup Head Weld Pins For Hvac System
1-3/16 Mini Cup Capacitor Discharge Cup Head Weld Pins For Hvac System
1-3/16 Mini Cup Capacitor Discharge Cup Head Weld Pins For Hvac System
1-3/16 Mini Cup Capacitor Discharge Cup Head Weld Pins For Hvac System
1-3/16 Mini Cup Capacitor Discharge Cup Head Weld Pins For Hvac System
Specifications
Brand Name :
HUIHAO
Model Number :
Cup Head Weld Pins
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
10.000 pcs
Payment Terms :
L/C,T/T,Western Union,
Supply Ability :
350.000 pcs per month
Delivery Time :
within 15 days after confirm the order
Packaging Details :
carton+wooden pallet
Product name :
Weld Cup Head Pins
Material :
Mild steel ,stainless steel
Head diameter :
30mm,25mm,20mm
Pin diameter :
2.7mm,3.0mm,3.4mm
Pin length :
15mm-250mm
Sample :
freely
OEM/ODM :
Support
Factory :
Yes
Description
1-3/16" Mini Cup Capacitor Discharge Cup Head Weld Pins For HVAC System
Product Attributes
Attribute Value
Product name Weld Cup Head Pins
Material Mild steel, stainless steel
Head diameter 30mm, 25mm, 20mm
Pin diameter 2.7mm, 3.0mm, 3.4mm
Pin length 15mm-250mm
Sample Freely available
OEM/ODM Supported
Factory Yes
Product Description

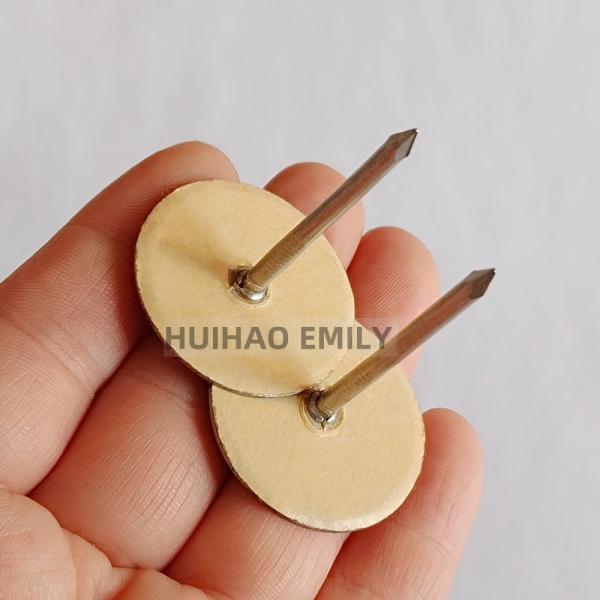

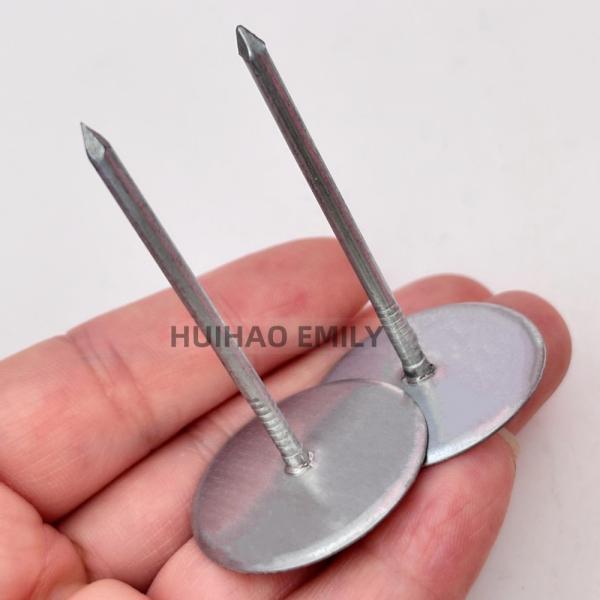

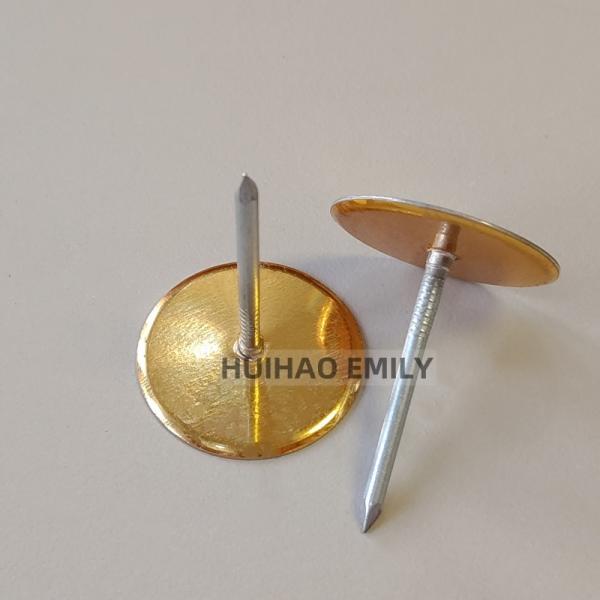

Cupped Head Insulation Pins simplify the permanent installation of "Duct Liner" or other insulation materials by securing this insulation to duct work or to other heating, ventilating or air conditioning sheet metal configurations and housings.

They are made up of a weld pin and a staked on retaining washer. This product is usually applied with a capacitor discharge stud welder. It can also be used as a hookless lacing anchor to secure insulation inside fabricated blankets.

Cup Heads are widely accepted as labor saving fasteners in the thermal and acoustical insulation markets for use in industrial and commercial applications.

Specifications
Round base 30mm, 35mm, 25mm
Pin diameter 14ga, 12ga, 10ga, 3mm
Pin length 25mm, 38mm-250mm
Base type Base with paper, base without paper
Material Mild steel, Stainless steel, Aluminum alloy
Surface treatment Zinc/copper coated, Cleaning, no treatment
Product Images
1-3/16
Key Features
BETTER PLATING Weldpin shanks Zinc and Chromate plated exceeding SMACNA standards and providing a professional appearance. Quilting Cup Head Insulation Pins are copper plated.
REDUCED DOWN TIME Consistent point quality reduces frequency of machine adjustments.
STRONGER WELDS Hardened steel point assures positive electrical contact for complete sheet to pin fusion.
CORROSION RESISTANCE Plating exceeds current SMACNA standards for corrosion resistance.
TEMPERATURE RANGE Functions properly over normally accepted operating range of temperatures of 0°C to 121°C and are not adversely affected at temperatures of 0°C to 287°C.
VIBRATIONS Will not fatigue or be physically affected by vibrations normally found in high velocity air handling systems.
Packaging
1-3/16 1-3/16

Standard Packaging: 800/1000/1500/2000/3000/5000 pcs in carton on pallet or 800/1000/15000/2000 in a drum on the pallet.

Delivery Options: For large orders by sea; for small or urgent orders by DHL, FedEx, UPS, etc. We also provide door to door service by sea or air.

Company Services
  • Package Service: Carton, Fumigation-Free Wooden Box, Fumigation-Free Tray, Warning Tape, Color Label, Custom Logo
  • Delivery Service: By sea, by air and door to door service
  • Stock Service: Common sizes of Insulation Fastener Cup Head Pins with Mechanized packing product in stock
  • Sample Service: Free samples available for standard products; special sizes may require customer to pay mold cost
  • Quality Assurance: ISO 9001-2008, material test certification, factory test report and third party test reports from SGS and BV

We are willing to rush orders and offer competitive prices for our products and services. You won't regret choosing us as your supplier for Insulation Fastener Cup Head Pins, studs, and any other supplies you need.

1-3/16
