3mm SS Copper Coated CD Stud Welding Pin For Insulation Fastening Work Use With Capacitor Discharge Stud Welder
3mm SS Copper Coated CD Stud Welding Pin For Insulation Fastening Work Use With Capacitor Discharge Stud Welder
3mm SS Copper Coated CD Stud Welding Pin For Insulation Fastening Work Use With Capacitor Discharge Stud Welder
3mm SS Copper Coated CD Stud Welding Pin For Insulation Fastening Work Use With Capacitor Discharge Stud Welder
3mm SS Copper Coated CD Stud Welding Pin For Insulation Fastening Work Use With Capacitor Discharge Stud Welder
3mm SS Copper Coated CD Stud Welding Pin For Insulation Fastening Work Use With Capacitor Discharge Stud Welder
3mm SS Copper Coated CD Stud Welding Pin For Insulation Fastening Work Use With Capacitor Discharge Stud Welder
3mm SS Copper Coated CD Stud Welding Pin For Insulation Fastening Work Use With Capacitor Discharge Stud Welder
Specifications
Brand Name :
HUIHAO CUSTOM
Model Number :
CD Stud Welding Pin
Certification :
ISO
Place of Origin :
China
MOQ :
5000 pcs
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
500000 PCS per 20 Days
Delivery Time :
5-8 work days
Packaging Details :
300pcs per bag or 500 pcs per bag, then put into cartons, or packed as request
Product Name :
CD Stud Welding Pin
Application :
Fasten Insulation Material On Metal Surface
Material :
Copper Coated Steel, Galvanized Steel, Stainless Steel, Aluminium
Diameter :
1-5mm
Package :
Carton Box
Length :
10-475mm
Customization :
Support
Small Orders :
Support
Door To Door Service :
Support
Samples :
Support
Description

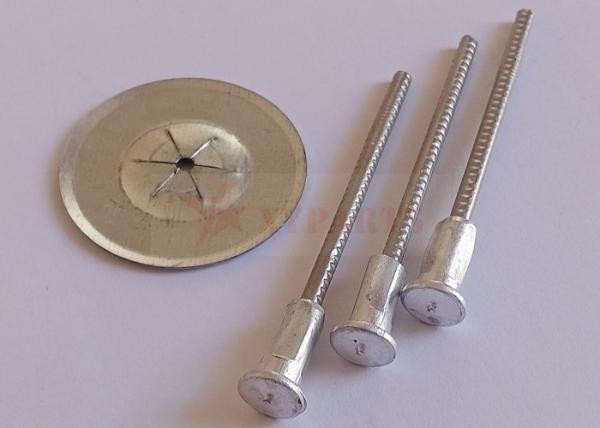

3mm SS & Copper Coated CD Stud Welding Pin For Insulation Fastening Work Use With A Capacitor Discharge Stud Welder

Product Description Of CD Stud Welding Pin For Insulation Fastening Work Use With A Capacitor Discharge Stud Welder:

CD Stud Welding Pin made from stainless steel or copper coated steel or aluminum, are widely used for insulation fastening work on metal surfaces. A Capacitor Discharge Stud Welder is needed for this insulation fastening work. After the pin is welded in place, the insulation is impaled on the pin and secured with a self-locking washer.

If you are in need of CD Stud Welding Pin, please feel free to ask me a price or a sample, our weld pins are with well welding performance and good price, and my email is cherry@huihaomesh.com

Thank you for your valuable time, and hope you have a nice day.

Item

CD Stud Welding Pin For Insulation Fastening Work

Material

Stainless Steel, Copper Coated Steel, Galvanized Seel, Aluminum

Length

As your request (length could be 10-475mm)

Diameter

As your request (diameter could be 1-5mm)

Features

Standard weld points, easy welding
Pins soft, easy bending over
Sharp points,easy going through any insulation blanket

Supply capability

10000 Pcs/hour

Remark

Technical parameters are available upon request

3mm SS Copper Coated CD Stud Welding Pin For Insulation Fastening Work Use With Capacitor Discharge Stud Welder

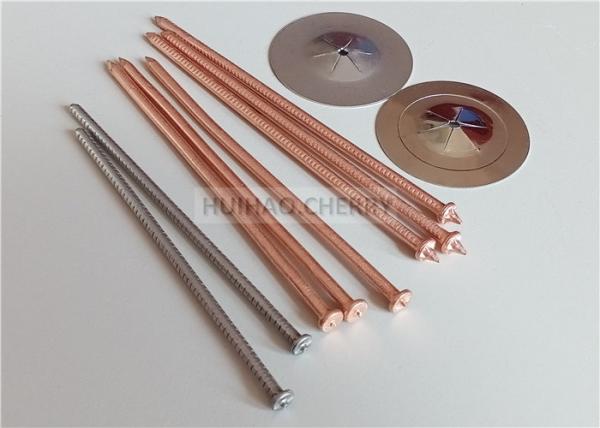

Accessories Of CD Stud Welding Pin For Insulation Fastening Work Use With A Capacitor Discharge Stud Welder:

We offer all different kind of self-locking washers/clips to fasten the insulation material on metals surface with CD Stud Welding Pins.

Item Material Diameter
Square Self-Locking Washers Stainless Steel 32mm, 38mm, 50mm, 60mm, 63.5mm
Galvanized Steel 32mm, 38mm, 50mm, 60mm, 63.5mm
Aluminum 32mm, 38mm, 50mm, 60mm, 63.5mm
Round Self-Locking Washers Stainless Steel 25mm, 30mm, 38mm, 50mm
Galvanized Steel 25mm, 30mm, 38mm, 50mm
Aluminum 25mm, 30mm, 38mm, 50mm
Self-Locking Caps Stainless Steel 22mm, 28mm, 30mm, 38mm, 40mm
Galvanized Steel 22mm, 28mm, 30mm, 38mm, 40mm
Aluminum 22mm, 28mm, 30mm, 38mm, 40mm
3mm SS Copper Coated CD Stud Welding Pin For Insulation Fastening Work Use With Capacitor Discharge Stud Welder3mm SS Copper Coated CD Stud Welding Pin For Insulation Fastening Work Use With Capacitor Discharge Stud Welder

Applications Of CD Stud Welding Pin For Insulation Fastening Work Use With A Capacitor Discharge Stud Welder:

Step 1. Welding the CD Stud Welding Pin in to place
Step 2. Hang the insulation on the weld pins
Step 3. Press washers on the weld pins to secure the insulation

Step 4. Either clip off the weld pins at washer or bend the weld pins over washer

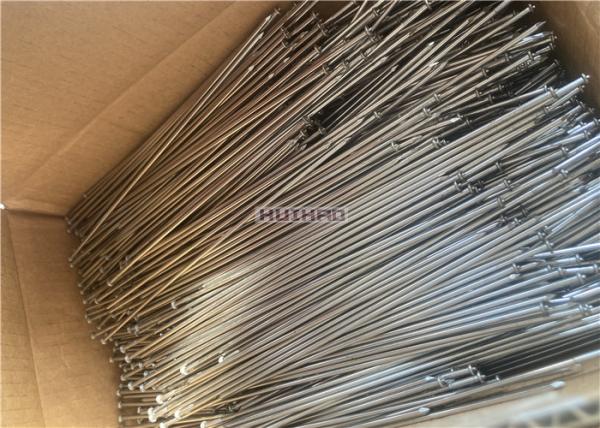

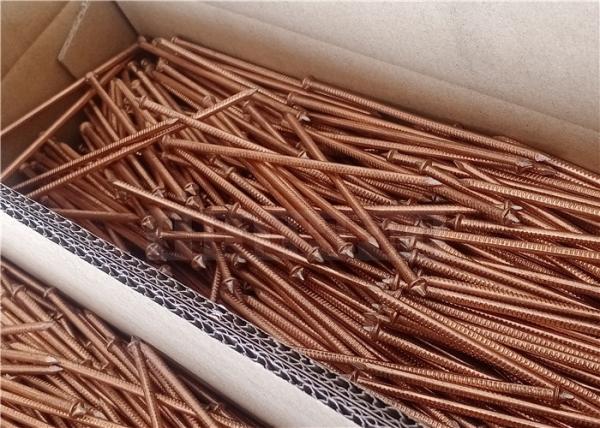

Package Of CD Stud Welding Pin For Insulation Fastening Work Use With A Capacitor Discharge Stud Welder:

1. 500pcs, 800pcs, 1000 pcs per box (according the pin length ),

2. 6 boxes in one carton,

3. then in one pallet

4. the package can be according your request
3mm SS Copper Coated CD Stud Welding Pin For Insulation Fastening Work Use With Capacitor Discharge Stud Welder

Certificate Of Huihao Hardware Mesh Product Limited:

3mm SS Copper Coated CD Stud Welding Pin For Insulation Fastening Work Use With Capacitor Discharge Stud Welder
