3x100mm CD Weld Pin Ms Copper Coated Used With Fiberglass Insulation Clips
3x100mm CD Weld Pin Ms Copper Coated Used With Fiberglass Insulation Clips
3x100mm CD Weld Pin Ms Copper Coated Used With Fiberglass Insulation Clips
3x100mm CD Weld Pin Ms Copper Coated Used With Fiberglass Insulation Clips
3x100mm CD Weld Pin Ms Copper Coated Used With Fiberglass Insulation Clips
3x100mm CD Weld Pin Ms Copper Coated Used With Fiberglass Insulation Clips
Specifications
Brand Name :
HUIHAO CUSTOM
Model Number :
CD Weld Pin
Certification :
ISO
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
L/C,T/T,Western Union,paypal
Supply Ability :
1,000,000 pcs per 30 days
Delivery Time :
5-8 work days
Packaging Details :
1. 1000 pcs / 2000 pcs/ 3000 pcs per carton 2. 48 cartons per pallet 3. or according to your requirement.
Product name :
CD Weld Pin
Brand :
HUIHAO CUSTOM
Material :
Mild Steel
Diameter :
3mm
Surface :
Copper plated,
Length :
100mm
Samples :
Free
Accessories :
Self Locking Washers Or Dome Capped Washers
Description
3x100mm CD Weld Pin Ms Copper Coated Used With Fiberglass Insulation Clips
Product Description

Hi, it's Cherry from Huihao Company, we are the manufacture of CD Weld Pins, CD Weld Pins are used for attaching fiberglass or rockwool insulation to various metal surfaces, with the use of a Capacitor Discharge Insulation Pin Welder. After the pin is welded in place, the insulation is impaled on the pin and secured with a self-locking washer.
We choose high standard stainless steel or copper coated steel, or aluminum alloy material to make CD Weld Pins, they are with good welding performance and easy to be bent.
We have fully automatic production line and strict quality control system to make sure the quick delivery and good quality of CD Weld Pins.
If you are in need of CD Weld Pins, please feel free to ask me a price, and we have samples for you to check the quality.

Product Specifications
Attribute Value
Product name 3x100mm CD Weld Pin Ms Copper Coated Used With Fiberglass Insulation Clips
Brand HUIHAO CUSTOM
Material Mild Steel (Stainless Steel Or Aluminum Also Available)
Surface Copper plated, galvanized
Diameter 3 mm (diameter is customizable)
Nail Length 100mm (length is customizable)
Accessories Self locking washers or dome capped washers
Package PP bag + Paper box + Wood pallet
Samples Free
Key Features
  • Material: Carbon Steel with copper coating for anti-corrosion
  • Accessories: Various of self locking washers or dome capped washers available
  • Diameter Options: 3mm as standard
  • Custom Lengths: Available from 10-475mm
  • Excellent welding performance
  • Free samples available
Product Images

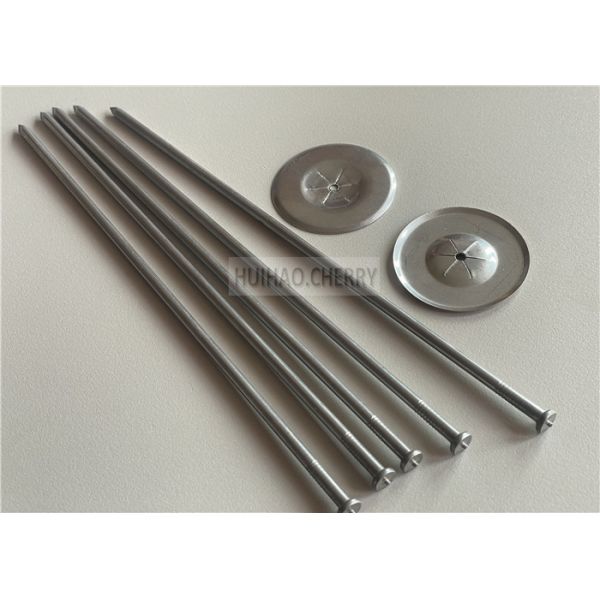

3x100mm CD Weld Pin Ms Copper Coated Used With Fiberglass Insulation Clips
Item: CD Weld Pin Ms Copper Coated Used With Fiberglass Insulation Clips
Material: Copper Coated Mild Steel
Nail Diameter: 3mm
Nail Length: as your requirement
Custom sizes and materials available

3x100mm CD Weld Pin Ms Copper Coated Used With Fiberglass Insulation Clips

Item: CD Weld Pin Aluminum Used With Fiberglass Insulation Clips
Material: Aluminum Alloy
Nail Diameter: 3mm, 4mm, 5mm
Nail Length: as your requirement
Custom sizes and materials available

3x100mm CD Weld Pin Ms Copper Coated Used With Fiberglass Insulation Clips
Item: CD Weld Pin Ms Copper Coated Used With Fiberglass Insulation Clips
Material: Copper Coated Mild Steel
Nail Diameter: 3mm, 4mm, 5mm
Nail Length: as your requirement
Custom sizes and materials available

3x100mm CD Weld Pin Ms Copper Coated Used With Fiberglass Insulation Clips

Item: CD Weld Pin Stainless Steel Used With Fiberglass Insulation Clips
Material: Stainless Steel
Nail Material: 3mm, 4mm, 5mm
Nail Length: as your requirement

Custom sizes and materials available

Applications

CD weld pins are designed to fastening insulation materials on metal surface, which are widely used for marine insulation, industrial insulation and commercial insulation, our CD weld pins are suitable for capacitor discharge stud welding.

3x100mm CD Weld Pin Ms Copper Coated Used With Fiberglass Insulation Clips

3x100mm CD Weld Pin Ms Copper Coated Used With Fiberglass Insulation Clips
3x100mm CD Weld Pin Ms Copper Coated Used With Fiberglass Insulation Clips
Packaging Options
  • PP bag + Paper carton + Wood Pallet
  • 48 cartons per pallet
  • Custom packaging available upon request
3x100mm CD Weld Pin Ms Copper Coated Used With Fiberglass Insulation Clips
Frequently Asked Questions

1. Are you a manufacturer or a trader?
We are a manufacturer located in Hebei province, China.

2. Do you support product customization?
Yes, we can customize material, surface finish, wire diameter, and length according to your requirements.

3. Can I get samples?
Yes, we provide samples for quality confirmation.

4. Can you accept small orders?
Yes, we accept small orders for common sizes.

5. How do you ensure product quality?

  • Confirm all details before quoting
  • Reconfirm specifications before production
  • Implement IATF 16949 Quality Management System standards
  • Provide production and shipment updates with videos and photos
For inquiries about CD Weld Pins, manufacturing equipment, or welding tools, please contact:
