2.7x50mm Copper Coated Cup Head Insulation Weld Pins With Retaining Washer
2.7x50mm Copper Coated Cup Head Insulation Weld Pins With Retaining Washer
2.7x50mm Copper Coated Cup Head Insulation Weld Pins With Retaining Washer
2.7x50mm Copper Coated Cup Head Insulation Weld Pins With Retaining Washer
2.7x50mm Copper Coated Cup Head Insulation Weld Pins With Retaining Washer
2.7x50mm Copper Coated Cup Head Insulation Weld Pins With Retaining Washer
Specifications
Brand Name :
HUIHAO
Model Number :
2.7x50mm
Certification :
ISO9001-2015
Place of Origin :
CHINA
MOQ :
50000pcs
Payment Terms :
L/C, T/T
Supply Ability :
100,000 pcs per 10 days
Delivery Time :
10 days after confirm the order
Packaging Details :
by carton or pail to be request ,then on pallet
Name :
insulation weld pins
Materia :
Galvanized steel ,copper coated ,stainless steel
Base dia :
25mm,30mm
Base type :
with insulated paper or without
Pin dia :
2.7mm,3.0mm,3.4mm
Pin length :
25mm,50mm,75mm in common, other to be request
Package :
by carton or pail
Service :
DDP by sea or air
Description

2.7x50mm Copper Coated Cup Head Insulation Weld Pins With Retaining Washer

Cup Head Insulation Weld Pins Produce Introduce :

Cup head Insulation weld pin is a weld style insulation fastener, these cup head weld pins are

made up of a washer assembled with a pin, they are applied with a stud welding machine. After

the insulation material is ready in place, weld the cup head weld pins directly through the

insulation to the sheet metal, then the insulation work is finished, so the cup head weld pins

is a labor-saving insulation fastener, it is widely accepted in insulation markets for use in industrial

and commercial applications.

Specification of Cup Head Insulation Weld Pins :

Specification of cup head insulation weld pins
Size Washer dia :25mm,30mm

Pin dia :2.7m,3.0mm,3.4mm

Pin length :25mm,38mm,50mm,75mm,100mm,120mm,130mm,150mm,

170mm up to 300mm
Material pin Stainless steel ,Mild steel ,Copper
base Stainless steel ,High strength galvanized steel ,Copper
surface treatment Copper or galvanized plating
Product features Simple construction, high efficiency, saving labors
Easy and firm welding
Sharp point for easy going through any insulation material
Base with paper washers are used for aluminum foil faced insulation material
Pins with tubes are used for tin foil faced insulation material
Length tolerance ±0.1mm
Production workmanship Automated production
Packing Packing can be customized as per requirements
Current packing information available upon request.
Application Being used in HVAC,fixing various insulation to air duct work

Pic of Cup Head Insulation Weld Pins :

2.7x50mm Copper Coated Cup Head Insulation Weld Pins With Retaining Washer

Cup head insulation weld pins

Material :mild steel

Surface treatment :galvanized

Base size :25mm,30mm

Base type:without insulation paper

Pin dia :2.7mm,3.0mm,3.4mm,

Pin length :25mm-300mm

Cup head insulation weld pins

Material :mild steel

Surface treatment :galvanized

Base size :25mm,30mm

Base type:with insulation paper

Pin dia :2.7mm,3.0mm,3.4mm,

Pin length :25mm-300mm

 2.7x50mm Copper Coated Cup Head Insulation Weld Pins With Retaining Washer
2.7x50mm Copper Coated Cup Head Insulation Weld Pins With Retaining Washer

Cup head insulation weld pins

Material :mild steel

Surface treatment :coper coated

Base size :25mm,30mm

Base type:without insulation paper

Pin dia :2.7mm,3.0mm,3.4mm,

Pin length :25mm-300mm

Cup head insulation weld pins

Material :mild steel

Surface treatment :galvanized

Base size :25mm,30mm

Base type:with gold seal

Pin dia :2.7mm,3.0mm,3.4mm,

Pin length :25mm-300mm

 2.7x50mm Copper Coated Cup Head Insulation Weld Pins With Retaining Washer
2.7x50mm Copper Coated Cup Head Insulation Weld Pins With Retaining Washer

Recommended for insulation thickness:

recommended for pin length before welding
1/2" insulation(all densities) 12.67mm
1" insulation(1-1/2"ib density) 17.63mm
1" foam 25.55mm
1"insulation(3ib densities) 23.72mm
1-1/2" insulation(all densities) 28.42mm
2"insulation(1-1/2"-2" ib density) 37.95mm
2"insulation(3ib densities) 48.77mm
3"insulation(all densities) 69.85mm
4" insulation(all densities) 95.00mm

2.7x50mm Copper Coated Cup Head Insulation Weld Pins With Retaining Washer

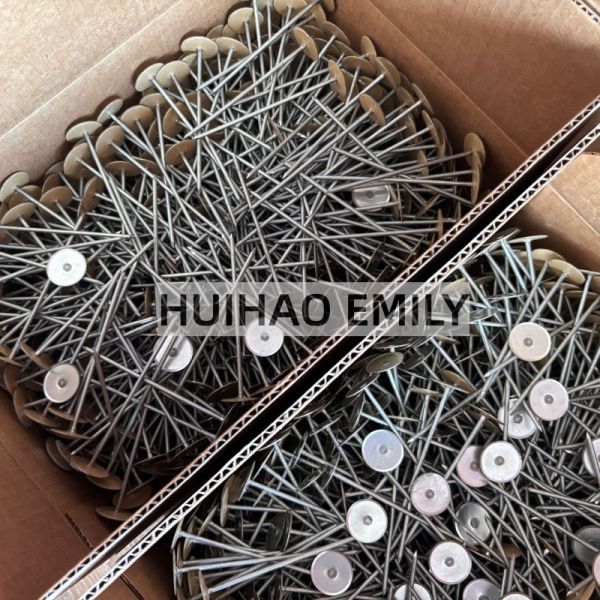

Package of Cup Head Insulation Weld Pins :

2.7x50mm Copper Coated Cup Head Insulation Weld Pins With Retaining Washer

Package of Cup Head Insulation Weld Pins :

>> Package
1. 1000pcs/2000pcs by carton or pail to be request ,then on pallet.

2. to be your requirements.

>>> Delivery
Sample: DHL/EMS/UPS/TNT/EXPRESS
Large Order: we recommend you by SEA ,or by AIR if in an emergency.

HUIHAO COMPANY :

HUIHAO company is a insulation

fasteners/insulation anchors manufacturing company,
we produce all kinds of insulation pins and washers.can make mold according your drawing pic ,Our products
is as following :


1.perforated base insulation pins

2.self adhesive pins

3.CD weld pins

4.Bimetallic pin

5.Cup head weld pins

6.Lacing Anchors&Quilting pins &lacing hooks washer

7.all kinds of self locking washers, Dome caps.
