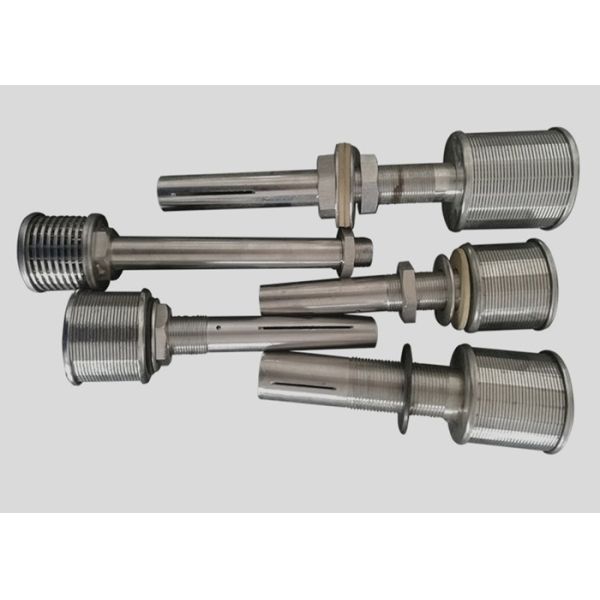

Stainless Steel Johnson Wire-wound Filter Nozzle, Water Wedge Wire Filter Nozzle

1.Specifition of Wire-wound Filter Nozzle

• All the above size are the normal size. Customized size is possible.
• UBO could help to design according to the application and requirement.
• The nozzles customized range as below:
• Slot range: 0.05-2mm
• Dimension: Diameter, Screen Height, Length could produce according to actual requirement and application
• Thread, gasket, nut according to requirement

2.details of Wire-wound Filter Nozzle

Johnson water filtter screen nozzle, which consists of a water cap , a water cap, a trapezoid screen with a bar and a guide tube.Axis of trapezoidal

liner has a horse to the water flow valve cap of the cup , containing the upper guide tube into his mouth water cap seat parts, flow valve at the bottom

of the cup, walls and diversion tube is inclusive of the upper wall is equipped with multiple pore, and at the top of the nozzle is equipped with a can

float on the valve core

Based on trapezoidal screen flow, round hole number, aperture size and clearance distance setting, saying a hat can satisfy the backwash and filtered

water flow velocity under different process condition of various velocity than the drainage cap. Stainless steel water drainage cap instead of traditional

water treatment equipment of plastic cap, plastic cap, compression strength difference between the water, poor heat resistance, ageing resistance,

especially the intensity difference this weakness, easy to burst, brought the hidden danger to the safe operation of the equipment.

3.Characteristics of the Wire-wound Filter Nozzle

• Type 316L stainless steel construction.
• Continuous slot design provide large circulation area
• Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
• Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
• Wedge wire screen is highly resistant to plugging.
• Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
• Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.
