Specifications
Product name :
Wire Wrapped Screen
diamter :
4'' 6'' 8'' 10''
length :
10mm-6000mm
Application :
Sand CONTROL
slot size :
0.05-6mm or customized .
profile wire :
#63,#93,#118
screen end :
Plain beveled ends, male/female threaded...
wedge wire :
2.2*3.0 2.3*3.0 2.3*3.5 3.5*5.0mm
Brand Name :
HUIHAO
Model Number :
Wire Wrapped Screen
Certification :
ISO
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
L/C,T/T,Western Union,paypal
Supply Ability :
2000pcs per month
Delivery Time :
7 work days
Packaging Details :
ingle with bubble bag and then in wooden case(fumigation certificate)
Description
Professional Wedge Wire Screen Tube With 10mm-6000mm Length
Product Specifications
Product Name Wire Wrapped Screen
Diameter 4", 6", 8", 10"
Length 10mm-6000mm
Application Sand Control
Slot Size 0.05-6mm or customized
Profile Wire #63, #93, #118
Screen End Plain beveled ends, male/female threaded
Wedge Wire 2.2*3.0, 2.3*3.0, 2.3*3.5, 3.5*5.0mm
Product Overview

Wedge wrapped wire screen, also known as Vee-Wire screen pipe, continuous slot Vee-wire screen tube, water well screen, wire wrapped screen, or wire wound screen, is constructed from Vee-shaped wrapped wire and round rods welded together at each intersection. This design ensures accurate slot sizes and high filtration precision.

Key Features
  • Non-clogging surface
  • Large open area
  • Low pressure drop
  • Hydraulic efficiency
  • High flow rates
  • Mechanical strength
  • Abrasion-resistant
  • Easy cleaning
Applications
  • Separating and filtering
  • Dewatering
  • Classifying
  • Straining and drying
  • Water intake
Technical Specifications
Screen Size (inch) Inside Diameter (mm) Outside Diameter (inch/mm) OD of Female Threaded End (inch/mm)
2 51 2/51 2 5/8/67
3 76 3/76 3 5/8/92
4 102 4/102 4 5/8/117
5 127 5/127 5 5/8/143
6 152 6/152 6 5/8/168
8 203 8/203 8 5/8/219
10 254 10/254 10 3/4/273
12 305 12/305 12 3/4/324
14 356 13-1/8/333 14/356
16 406 15/381 16/406
20 508 18-3/4/476 20/508
Technical Notes
  • Slot Size (S): The distance between each profile wire
  • Profile Wire: Triangle wire is the common type
  • Support Rod: Can be round rod, flat bar, or wedge wire
  • Support Rod Distance (P): The distance between each support rod
Wedge Wire Details
Wire Width (mm) Height (mm) Angle of Wire Weight (kgs/m²)
1.5 4.0 6.2 0.037
2.4 3.3 13 0.043
2.2 4.5 10.2 0.057
2.8 5.0 11.7 0.078
3.3 4.0 20 0.064
4.0 5.0 20 0.099
3.1 6.0 11.1 0.096
3.4 7.5 9.7 0.135
4.97 6.0 20 0.134
5.00 6.0 20 0.135
Wedge Support Rod Details
Wire Width (mm) Height (mm) Weight (kgs/m²)
2.0 10 0.037
2.0 12.7 0.057
2.0 13 -
2.0 15 0.078
2.0 20 0.096
2.0 25 0.135

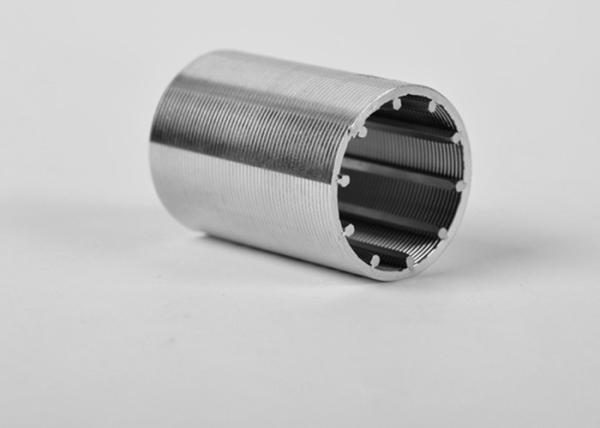

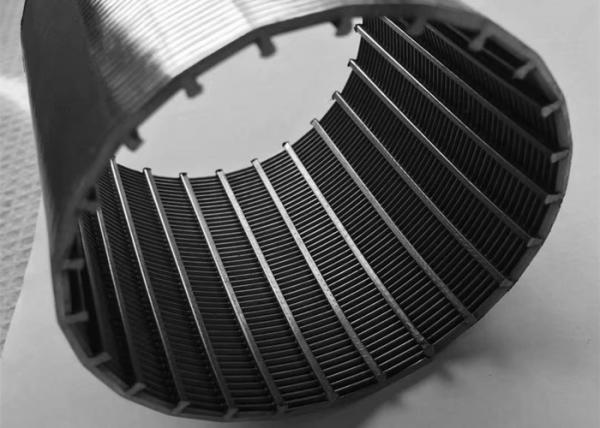

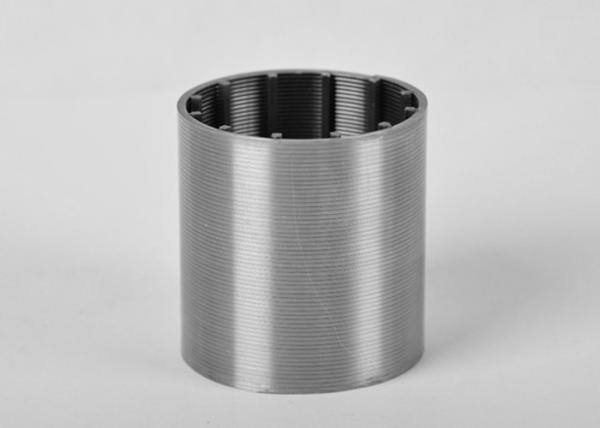

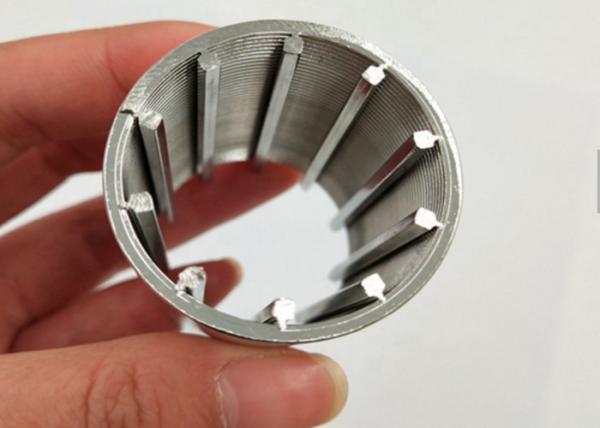

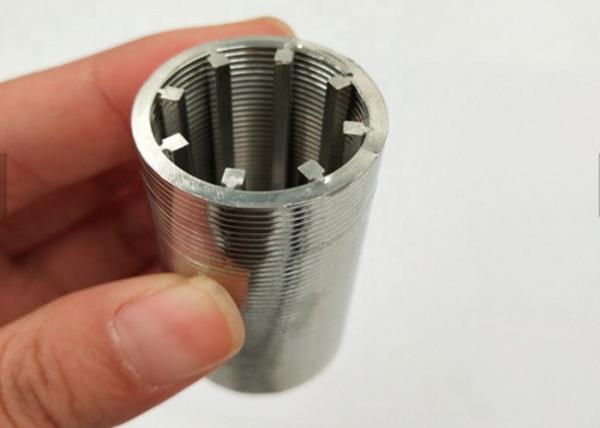

Product Images
Professional Wedge Wire ScreenTube With10mm-6000mm Length Professional Wedge Wire ScreenTube With10mm-6000mm Length
Packaging Information

Our wire wrapped screens are carefully packaged to ensure safe delivery:

  • Each water well screen is wrapped in protective plastic
  • Additional bubble bag wrapping with wooden strip reinforcement
  • Alternative bubble bag wrapping option available
Professional Wedge Wire ScreenTube With10mm-6000mm Length
Manufacturer Information
Professional Wedge Wire ScreenTube With10mm-6000mm Length

Supplier Name: Anping Huihao Hardware Mesh Products Co., LTD

Website: www.hhmesh.cn

Address: 300M of Wanggezhuang ST, Anping City, Hebei Province, China 053600

Business License: 91131125060474443D

Social Credit Code: 91131125060474443D

Founded in 1999, our headquarters is located in Anping County, Hebei, known as the "silk screen township." Our facility covers nearly 6000 square meters with total assets of nearly 100 million yuan. We operate:

  • 80 machines for woven wire mesh
  • 30 CNC machines for perforated metal and expanded metal
  • 20 machines for mesh screen
  • 3 production lines for making wire
  • 2 production lines for insulation pin

Contact: admin2huihaomesh.com | +8613363891298
