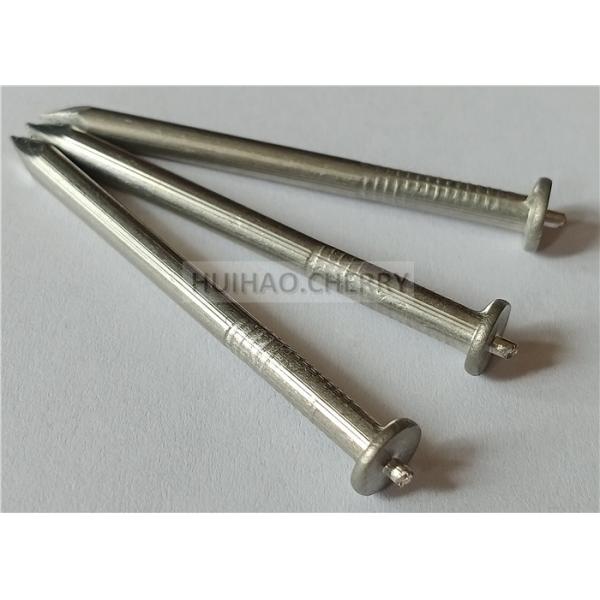

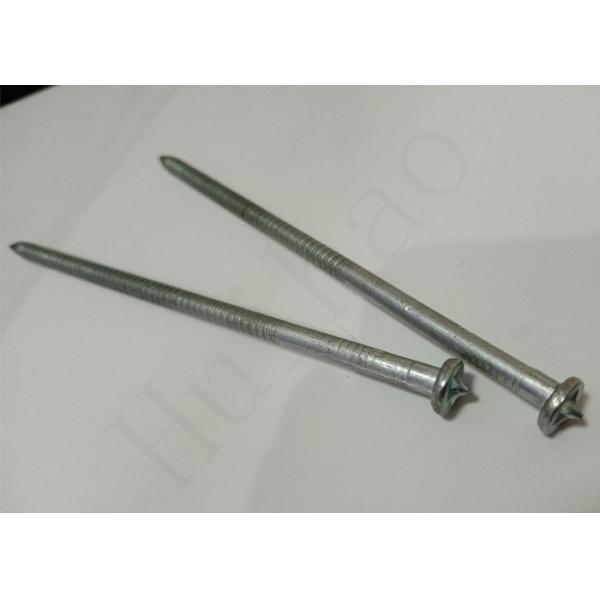

Galvanized Steel Conical Tip Stud Welding Pins Capacitor Discharge Spot Welding Nails
Galvanized Steel Conical Tip Stud Welding Pins Capacitor Discharge Spot Welding Nails
Galvanized Steel Conical Tip Stud Welding Pins Capacitor Discharge Spot Welding Nails
Galvanized Steel Conical Tip Stud Welding Pins Capacitor Discharge Spot Welding Nails
Galvanized Steel Conical Tip Stud Welding Pins Capacitor Discharge Spot Welding Nails
Galvanized Steel Conical Tip Stud Welding Pins Capacitor Discharge Spot Welding Nails
Galvanized Steel Conical Tip Stud Welding Pins Capacitor Discharge Spot Welding Nails
Galvanized Steel Conical Tip Stud Welding Pins Capacitor Discharge Spot Welding Nails
Specifications
Brand Name :
HUIHAO
Model Number :
Capacitor Discharge (CD) Weld Pins
Certification :
ISO
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
L/C, T/T, Western Union , paypal
Supply Ability :
500000pcs per 20 days
Delivery Time :
5-8 work days
Packaging Details :
500pcs per bags, 10 bags per carton. if the length too long, we will be according your requirements to pack.
Product name :
Conical Tip Capacitor Discharge (CD) Weld Pins
Material :
Aluminum or as your request
Pin thickness :
12GA 10GA 3mm 4mm 5mm
Length :
As your request
Samples :
Available
Manufacture :
Huihao Hardware Mesh Product Limited
Description

Galvanized Steel Conical Tip Capacitor Discharge (CD) Weld Pins

Introduction To The Conical Tip Capacitor Discharge (CD) Weld Pins:

Capacitor Discharge (CD) Weld Pins are commonly used to attach blanket insulation to ducts, ovens, boilers and hot or cold equipment. The pins are welded in place, the insulation impaled over the pin and then self locking washers are installed over the pin to secure the insulation.

1. Mild Steel Conical Tip Capacitor Discharge (CD) Weld Pins:

Materal: Mild Steel

Finish: Zinc coated or copper plated

Washers: Self-locking washers are available in a variety of sizes, shapes, and materials.

Pin Dia: 11GA Or 10GA

Flange Size: 0.165" Or 0.188"

Flange Height: 4mm

Length: 1/2"-10"

Galvanized Steel Conical Tip Stud Welding Pins Capacitor Discharge Spot Welding Nails D FD Width FD Height L
11 Ga 0.165" 4mm 1/2"-8"
10 Ga 0.188" 4mm 1"-10"

Galvanized Steel Conical Tip Stud Welding Pins Capacitor Discharge Spot Welding Nails
Copper Coated Mild Steel Conical Tip CD Weld Pins
Pin Diameter: 12GA
Pin Length:1/2"-8"
Flange Width:0.165"
Flange Height: 4mm
Pin Diameter:10GA
Pin Length:1"-10"
Flange Width:0.188"
Flange Height:4mm
Galvanized Steel Conical Tip Stud Welding Pins Capacitor Discharge Spot Welding Nails
Galvanized Steel Conical Tip Capacitor Discharge (CD) Weld Pins
Pin Diameter: 12GA
Pin Length:1/2"-8"
Flange Width:0.165"
Flange Height: 4mm
Pin Diameter:10GA
Pin Length:1"-10"
Flange Width:0.188"
Flange Height:4mm

2. Specification Of The Aluminum Alloy 1100-H14 Capacitor Discharge (CD) Weld Pins

Materal: Aluminum Alloy 1100-H14

Washers: Self-locking washers are available in a variety of sizes, shapes, and materials.

Pin Dia: 11GA Or 10GA

Flange Size: 0.220" Or 0.250"

Galvanized Steel Conical Tip Stud Welding Pins Capacitor Discharge Spot Welding Nails Size D FD L
11GA 0.105" 0.220" As Your Request
10GA 0.135" 0.250" As Your Request

Galvanized Steel Conical Tip Stud Welding Pins Capacitor Discharge Spot Welding Nails
Aluminum Alloy 1100-H14 Capacitor Discharge (CD) Weld Pins
Pin Diameter: 12GA
Pin Length:1/2"-8"
Flange Width:0.165"
Flange Height: 4mm
Pin Diameter:10GA
Pin Length:1"-10"
Flange Width:0.188"
Flange Height:4mm

3. Specification Of Stainless Steel Capacitor Discharge (CD) Weld Pins

Materal: Stainless Steel 304, 316, 316L

Washers: Self-locking washers are available in a variety of sizes, shapes, and materials.

Pin Dia: 11 Ga or 10 Ga etc.

Flange Size: 0.220" Or 0.250"

Galvanized Steel Conical Tip Stud Welding Pins Capacitor Discharge Spot Welding Nails Size D FD L
11GA 0.105" 0.220" As Your Request
10GA 0.135" 0.250" As Your Request

Galvanized Steel Conical Tip Stud Welding Pins Capacitor Discharge Spot Welding Nails
Aluminum Alloy 1100-H14 Conical Tip Capacitor Discharge (CD) Weld Pins
Pin Diameter: 12GA
Pin Length:1/2"-8"
Flange Width:0.165"
Flange Height: 4mm
Pin Diameter:10GA
Pin Length:1"-10"
Flange Width:0.188"
Flange Height:4mm

Stud Welding System Of Conical Tip Capacitor Discharge (CD) Weld Pins:

Galvanized Steel Conical Tip Stud Welding Pins Capacitor Discharge Spot Welding Nails

the standard, portable CD system consists of:

> The Controller or (Power Unit) which is plugged into the one-hundred-and-ten-volt outlet.

> The CD Gun with Cables is used to command the power unit and deliver weld current, with the Gun also serving as the Pin holder to properly place the pin during welding.

> Then, on the other side of “the circuit” a ground cable and clamping connection is attached to the work-surface to complete our Capacitor Discharge connections.

> And finally, special Accessories are used to hold the Pin in the Gun.

FAQ Of Huihao Hardware Mesh Product Limited:

1. Are you a manufacturer or a trader?
We are a manufacturer located in Hebei province, China.

2. Do you support product customization?
Yes, we can customize material, surface finish, wire diameter, and length according to your requirements.

3. Can I get samples?
Yes, we provide samples for quality confirmation.

4. Can you accept small orders?
Yes, we accept small orders for common sizes.

5. How do you ensure product quality?

  • Confirm all details before quoting
  • Reconfirm specifications before production
  • Implement IATF 16949 Quality Management System standards
  • Provide production and shipment updates with videos and photos
